3 - 6 3 - 6
MELSEC-Q
3 SPECIFICATIONS

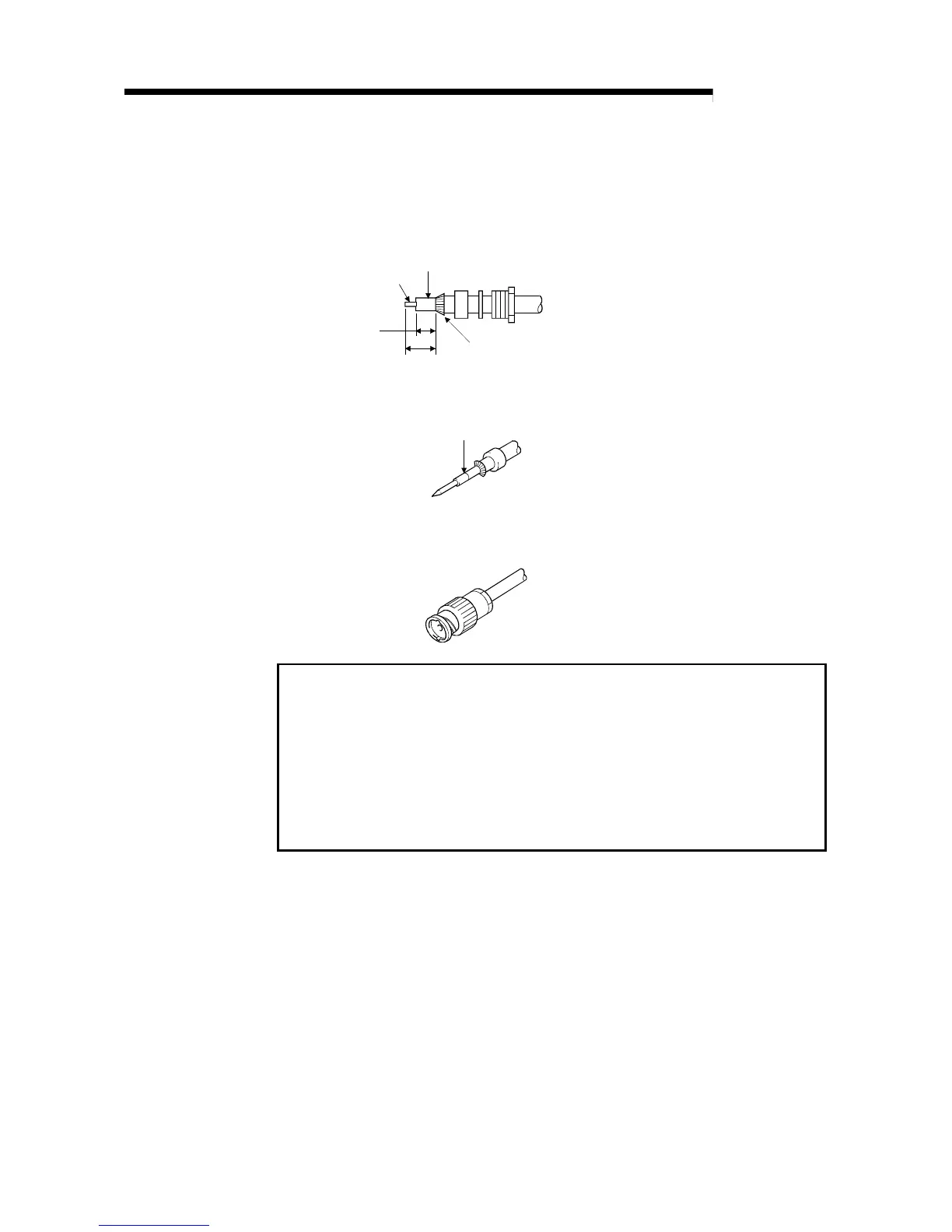

3) Cut the external conductor, insulating material and
internal conductor to the dimensions shown below. Note
that the external conductor should be cut to the same
dimension as the tapered section of the clamp and
smoothed down to the clamp.
Internal conductor
Insulating material
Clamp and external conductor
3mm
(0.12 in.)
6mm
(0.24 in.)
4) Solder the contact to the internal conductor.
Solder here
5) Insert the connector assembly shown in 4) into the plug
shell and screw the nut into the plug shell.
(1) The following precautions should be observed when soldering the internal
conductor and contact:
• Make sure that the solder does not bead up at the soldered section.
• Make sure that there are no gaps between the connector and cable
insulating material and that they do not cut into each other.
• Solder as quick as possible so the insulating material does not deform.
(2) Before connecting or disconnecting the coaxial connector, touch a grounded
metal object to discharge the static electricity from the human body. Failure to
do so may result in a module malfunction.
