9 SPRING CLAMP TERMINAL BLOCK
POINT
• If the stripped wire is inserted into the corresponding hole without installing the
bar solderless terminal, the connection check indicator does not come out. Do
not use the stripped wire without installing the bar solderless terminal.
• The wire strip length must follow the specification of the bar solderless
terminal. Also, use a crimp tool when installing the bar solderless terminal to
the wire.
• Before inserting the bar solderless terminal, check the corresponding circular
shaped hole and the bar solderless terminal. Before inserting, pay attention to
the angle of bar solderless terminal.

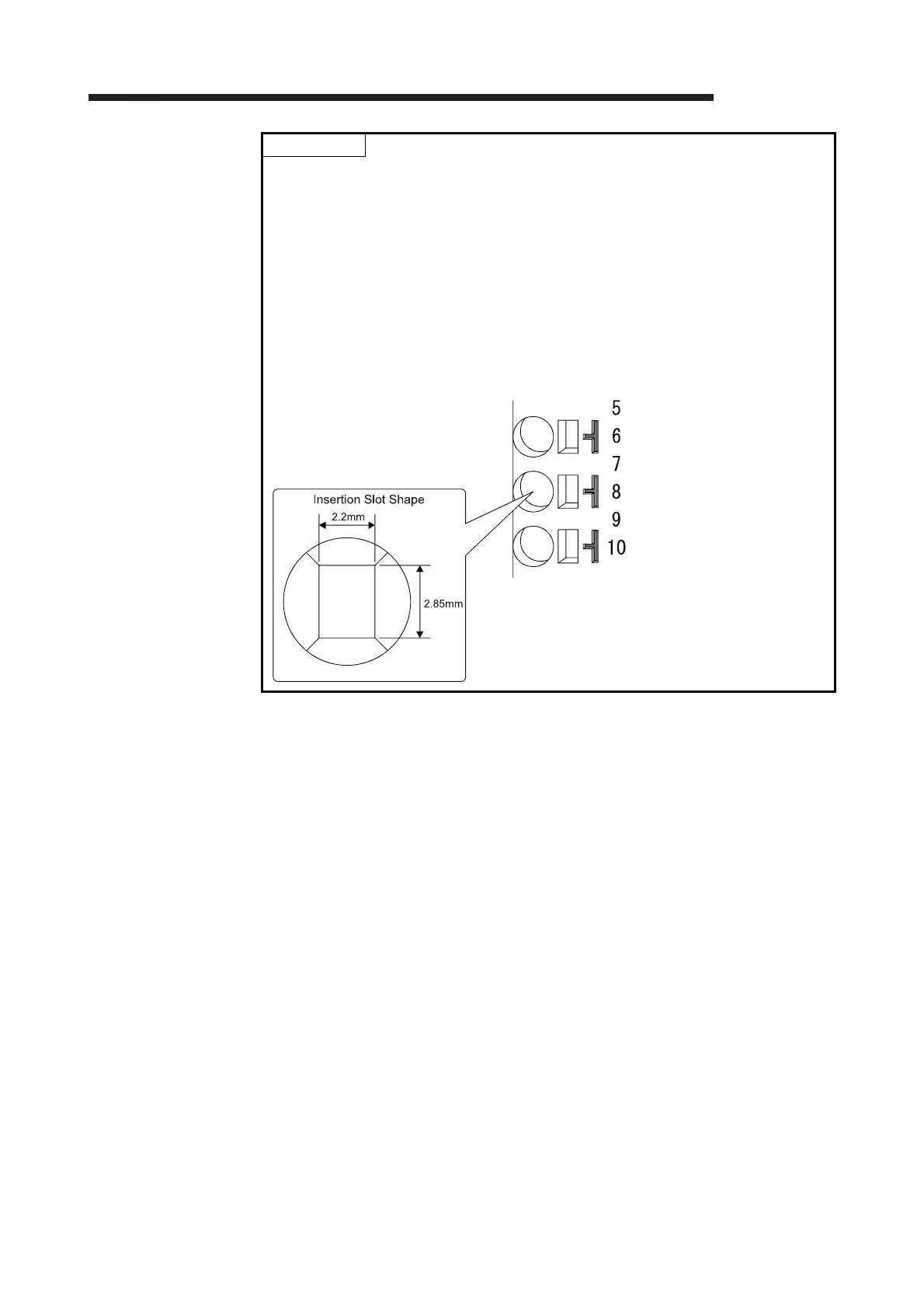

If a bar solderless terminal, which is bigger than the insertion slot, is inserted,
the terminal block may be damaged.
(3) Disconnecting a cable
(a) Insert the tool all the way inside the square shaped hole of the spring clamp
terminal block.
(b) Pull the bar solderless terminal out of the hole.
