Mitsubishi QX10 - QY18 A Contact Output Module (All Points Independent)

3 - 3 3 - 3
MELSEC-Q
3 OUTPUT MODULE SPECIFICATIONS

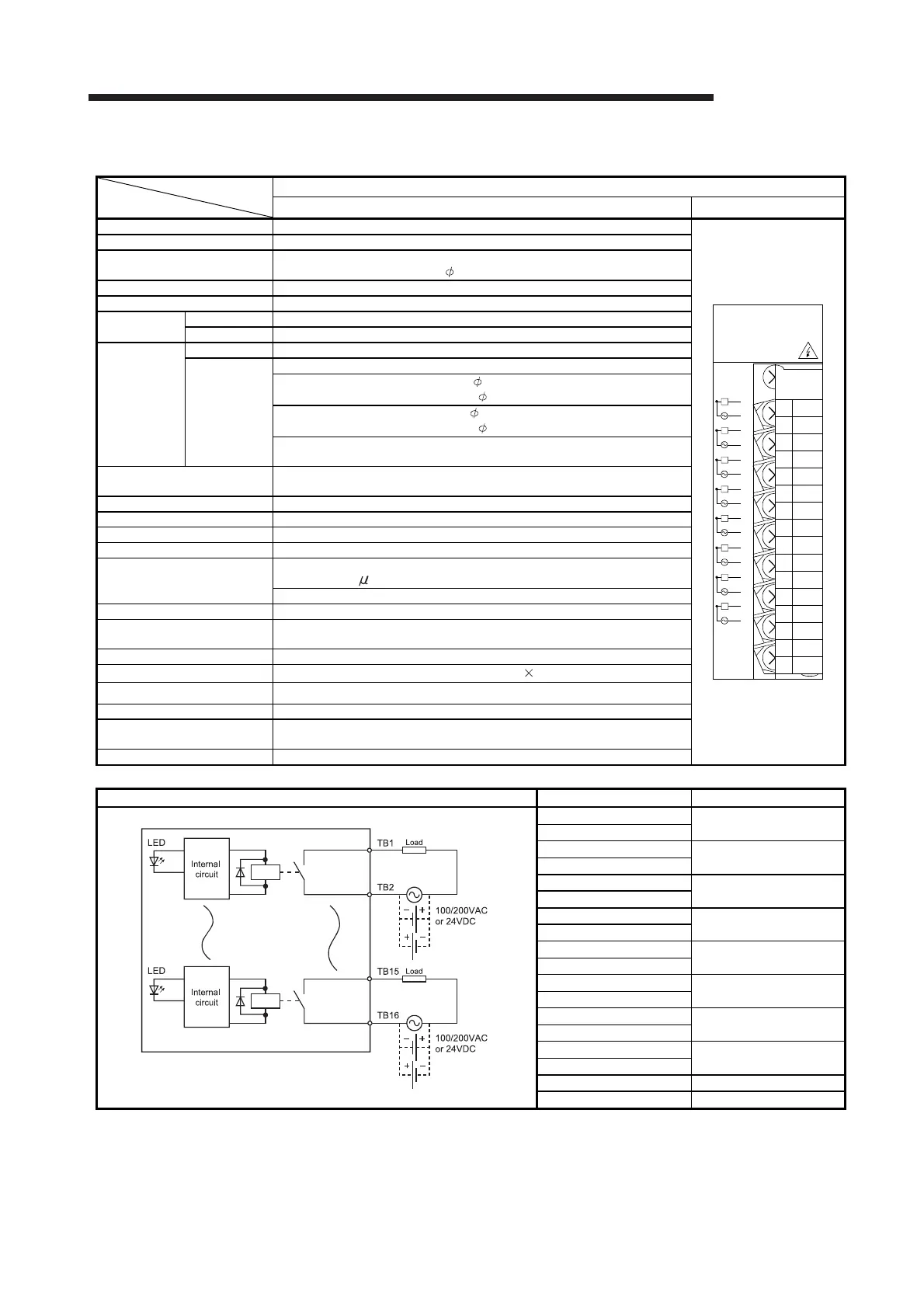

3.3 QY18A Contact Output Module (All Points Independent)
Type
Specifications
Contact output module (All points independent)
QY18A Appearance
Number of output points 8 points
Isolation method Relay isolation
Rated switching
voltage/current
24VDC 2A (resistive load)
240VAC 2A (cos =1)
/point, 8A/unit
Minimum switching load 5VDC 1mA
Maximum switching load 264VAC 125VDC
Response
time
OFF to ON 10ms or shorter
ON to OFF 12ms or shorter
Life
Mechanical 20 million cycles or more
Electrical
Rated switching voltage/current load 100 thousand cycles or more
200VAC 1.5A, 240VAC 1A (COS =0.7) 100 thousand cycles or more
200VAC 0.4A, 240VAC 0.3A (COS =0.7) 300 thousand cycles or more
200VAC 1A, 240VAC 0.5A (COS =0.35) 100 thousand cycles or more
200VAC 0.3A, 240VAC 0.15A (COS =0.35) 300 thousand cycles or more
24VDC 1A, 100VDC 0.1A (L/R=7ms) 100 thousand cycles or more
24VDC 0.3A, 100VDC 0.03A (L/R=7ms) 300 thousand cycles or more
Maximum switching
frequency
3600 cycles/hour
Surge suppressor None
Fuse None
Dielectric withstand voltage 2830VAC rms/3 cycles (altitude 2000m)
Insulation resistance 10MΩ or more by insulation resistance tester
Noise immunity
By noise simulator of 1500Vp-p noise voltage,
1 s noise width and 25 to 60Hz noise frequency
First transient noise IEC61000-4-4: 1kV
Protection degree IP1X
Number of occupied I/O
points
16 points (I/O assignment is set as a 16-point output module.)
Operation indicator ON indication (LED)
External connections
18-point terminal block (M3 6 screws)
Applicable wire size
Core cable 0.3 to 0.75mm
2
(Outside diameter 2.8mm or smaller)
Applicable crimping terminal R1.25-3 (Sleeved crimping terminals cannot be used.)
Internal current consumption
(5VDC)
240mA (TYP. all points ON)
Weight 0.22kg
External connection Terminal block No. Signal name
TB1
Y00
TB2
TB3
Y01
TB4
TB5
Y02
TB6
TB7
Y03
TB8
TB9
Y04
TB10
TB11
Y05
TB12
TB13
Y06
TB14
TB15
Y07
TB16
TB17 Vacant
TB18 Vacant
QY18A
24VDC
01234567
89ABCDEF
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
L
7
L
6
L
5
L
4
L
3
L
2
L
1
L
0
NC
NC
2A
240VAC
