3 - 18 3 - 18
MELSEC-Q
3 OUTPUT MODULE SPECIFICATIONS

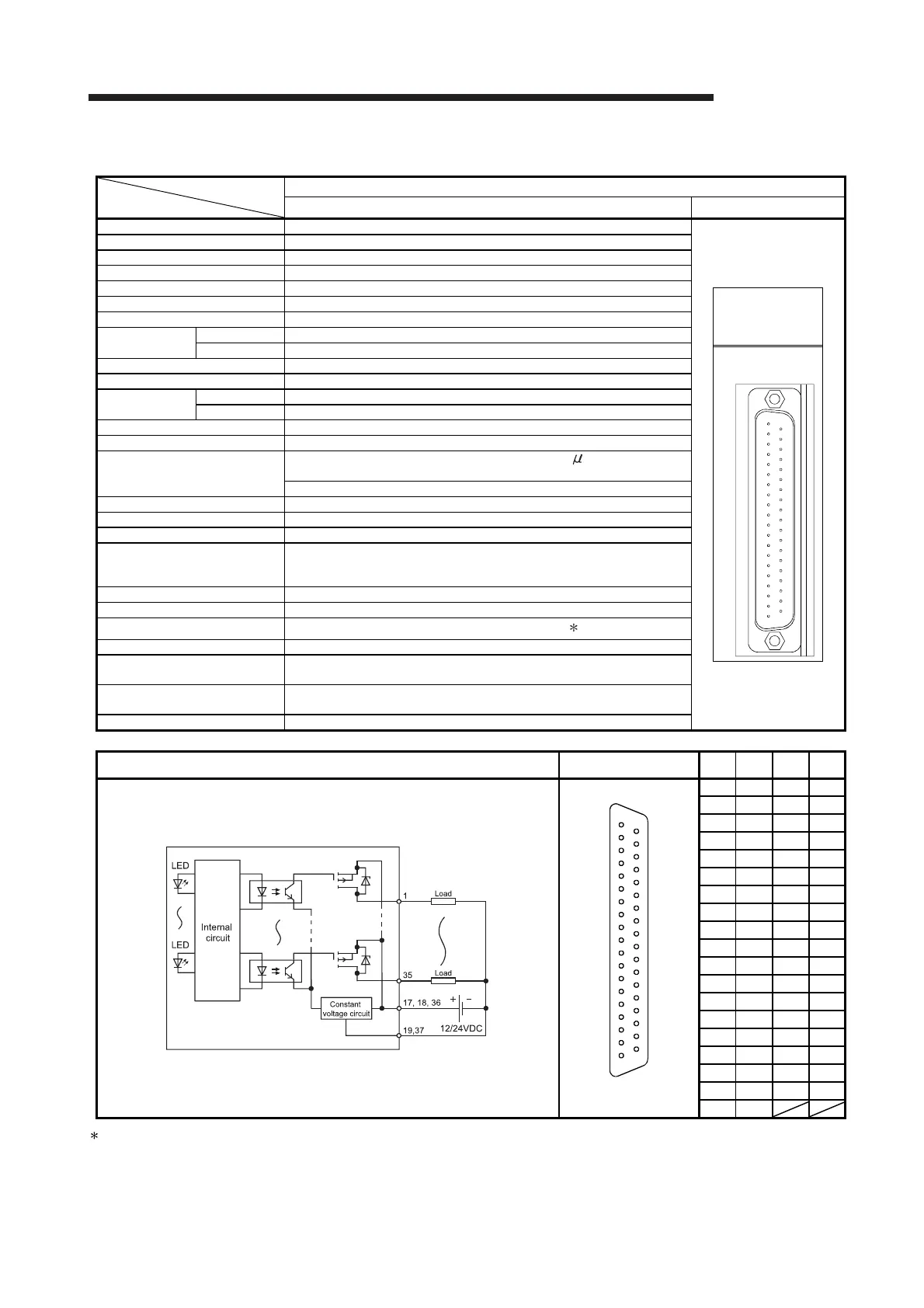

3.16 QY81P Transistor Output Module (Source Type)
Type
Specifications
Transistor output module (Source type)
QY81P Appearance
Number of output points 32 points
Isolation method Photocoupler
Rated load voltage 12-24VDC (+20/-15%)
Maximum load current 0.1A/1point, Pilot Duty, 2A/common
Maximum inrush current 0.7A, 10ms or less
Leakage current at OFF 0.1mA or less
Maximum voltage drop at ON 0.1VDC (TYP.) 0.1A, 0.2VDC (MAX.) 0.1A
Response time
OFF to ON 1ms or less
ON to OFF 1ms or less (rated load, resistive load)
Surge suppressor Zener diode
Fuse No
External supply
power
Voltage 12-24VDC (+20/-15%) (ripple ratio within 5%)
Current 40mA (at 24VDC)
Dielectric withstand voltage 560VAC rms/3 cycles (altitude 2000m)
Insulation resistance 10MΩ or more by insulation resistance tester
Noise immunity
By noise simulator of 500Vp-p noise voltage, 1 s noise width
and 25 to 60Hz noise frequency
First transient noise IEC61000-4-4: 1kV
Protection degree IP2X
Common terminal arrangement 32 points/common (common terminal: 17, 18, 36)
Number of occupied I/O points 32 points (I/O assignment is set as a 32-point output module.)
Protection function
Yes (overheat protection function, overload protection function)
• Overheat protection function is activated in increments of 2 points.
• Overload protection function is activated in increments of 1 point.
Operation indicator ON indication (LED)
External connections 37-pin D-sub connector
Applicable wire size
0.088 to 0.3mm
2
(For A6CON1E) 1
Applicable connector A6CON1E, A6CON2E, A6CON3E (optional)
Applicable connector/terminal
block converter module
A6TBY36-E, A6TBY54-E
Internal current consumption
(5VDC)
95mA (TYP. all points ON)
(0.10A is shown on the rating plate of the module.)
Weight 0.15kg
External connection Pin-Outs
Pin
No.
Signal
No.
Pin
No.
Signal
No.
Module front view
1 Y00 9 Y10
20 Y01 28 Y11
2 Y02 10 Y12
21 Y03 29 Y13
3 Y04 11 Y14
22 Y05 30 Y15
4 Y06 12 Y16
23 Y07 31 Y17
5 Y08 13 Y18
24 Y09 32 Y19
6 Y0A 14 Y1A
25 Y0B 33 Y1B
7 Y0C 15 Y1C
26 Y0D 34 Y1D
8 Y0E 16 Y1E
27 Y0F 35 Y1F
17 COM 37 0V
36 COM 19 0V
18 COM
1: When using A6CON2E or A6CON3E, refer to Chapter 7.
QY81P
12/24VDC
0.1A
QY81P
01234567
89ABCDEF
01234567
89ABCDEF
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
