3 OUTPUT MODULE SPECIFICATIONS

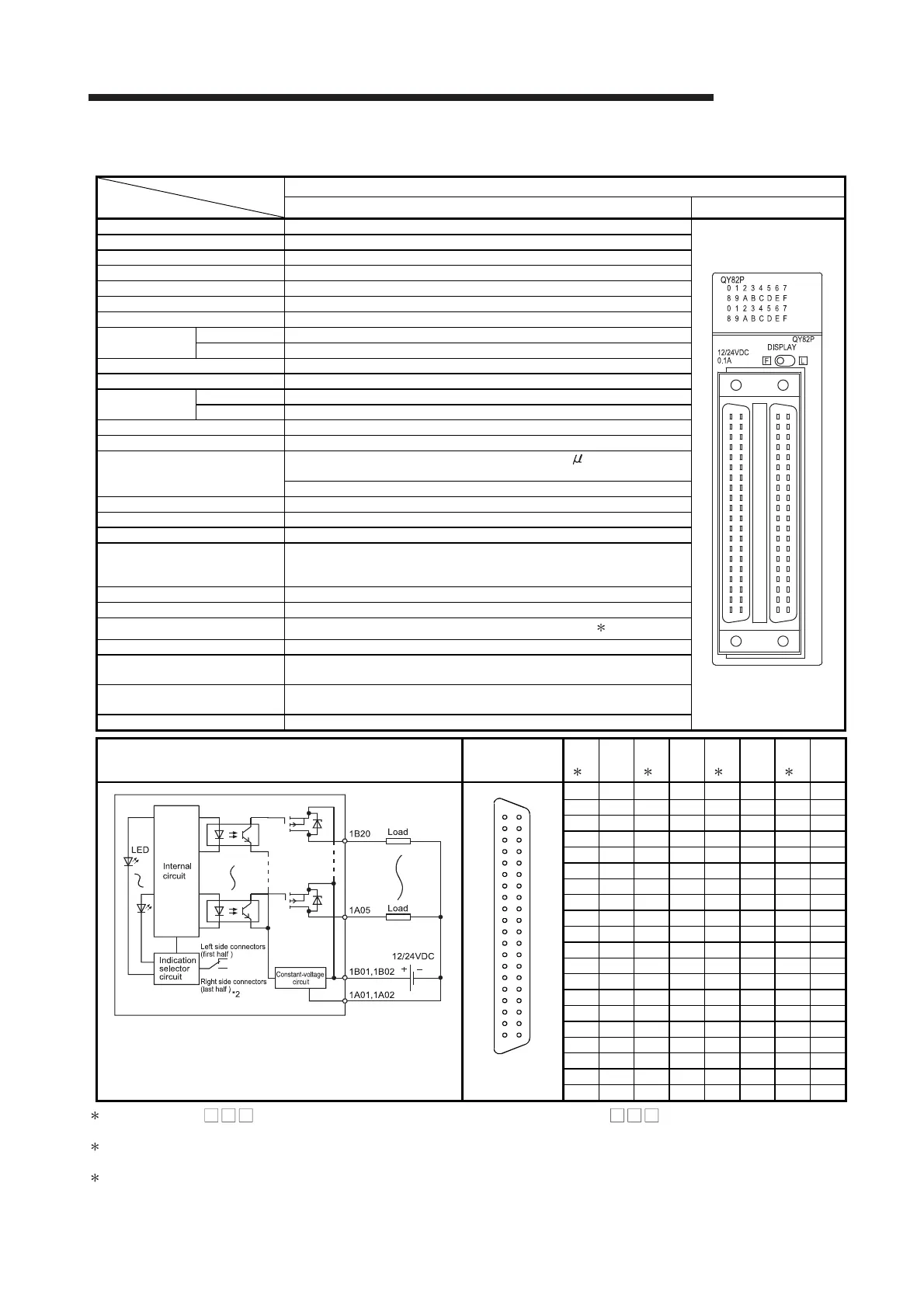

3.17 QY82P Transistor Output Module (Source Type)
Type
Specifications
Transistor Output Module (Source Type)
QY82P Appearance
Number of output points 64 points
Isolation method Photocoupler
Rated load voltage 12-24VDC (+20/-15%)
Maximum load current 0.1A/1point, Pilot Duty, 2A/common
Maximum inrush current 0.7A, 10ms or less
Leakage current at OFF 0.1mA or less
Maximum voltage drop at ON 0.1VDC (TYP.) 0.1A, 0.2VDC (MAX.) 0.1A
Response time
OFF to ON 1ms or less
ON to OFF 1ms or less (rated load, resistive load)
Surge suppressor Zener diode
Fuse No
External supply
power
Voltage 12-24VDC (+20/-15%) (ripple ratio within 5%)
Current 40mA (at 24VDC)/common
Dielectric withstand voltage 560VAC rms/3 cycles (altitude 2000m)
Insulation resistance 10MΩ or more by insulation resistance tester
Noise immunity
By noise simulator of 500Vp-p noise voltage, 1 s noise width
and 25 to 60Hz noise frequency
First transient noise IEC61000-4-4: 1kV
Protection degree IP2X
Common terminal arrangement 32 points/common (common terminal: 1B01, 1B02, 2B01, 2B02)
Number of occupied I/O points 64 points (I/O assignment is set as a 64-point output module.)
Protection function
Yes (overheat protection function, overload protection function)
• Overheat protection function is activated in increments of 2 points.
• Overload protection function is activated in increments of 1 point.
Operation indicator ON indication (LED), 32 point switch-over using switch
External connections 40-pin connector
Applicable wire size
0.088 to 0.3mm
2
(For A6CON1 or A6CON4) 3
Applicable connector A6CON1, A6CON2, A6CON3, A6CON4 (optional)
Applicable connector/terminal
block converter module
A6TBXY36, A6TBXY54
Internal current consumption
(5VDC)
160mA (TYP. all points ON)
Weight 0.17kg
External connection Pin-Outs
Pin
No.
1
Signal
No.
Pin
No.
1
Signal
No.
Pin
No.
1
Signal
No.
Pin
No.
1
Signal
No.
The above diagram shows the first half of 32 points (F).
The latter half of 32 points (L) are similar.
Module front
view
1B20 Y00 1A20 Y10 2B20 Y20 2A20 Y30
1B19 Y01 1A19 Y11 2B19 Y21 2A19 Y31
1B18 Y02 1A18 Y12 2B18 Y22 2A18 Y32
1B17 Y03 1A17 Y13 2B17 Y23 2A17 Y33
1B16 Y04 1A16 Y14 2B16 Y24 2A16 Y34
1B15 Y05 1A15 Y15 2B15 Y25 2A15 Y35
1B14 Y06 1A14 Y16 2B14 Y26 2A14 Y36
1B13 Y07 1A13 Y17 2B13 Y27 2A13 Y37
1B12 Y08 1A12 Y18 2B12 Y28 2A12 Y38
1B11 Y09 1A11 Y19 2B11 Y29 2A11 Y39
1B10 Y0A 1A10 Y1A 2B10 Y2A 2A10 Y3A
1B09 Y0B 1A09 Y1B 2B09 Y2B 2A09 Y3B
1B08 Y0C 1A08 Y1C 2B08 Y2C 2A08 Y3C
1B07 Y0D 1A07 Y1D 2B07 Y2D 2A07 Y3D
1B06 Y0E 1A06 Y1E 2B06 Y2E 2A06 Y3E
1B05 Y0F 1A05 Y1F 2B05 Y2F 2A05 Y3F
1B04 Vacant 1A04 Vacant 2B04 Vacant 2A04 Vacant
1B03 Vacant 1A03 Vacant 2B03 Vacant 2A03 Vacant
1B02 COM1 1A02 0V 2B02 COM2 2A02 0V
1B01 COM1 1A01 0V 2B01 COM2 2A01 0V
1: Pin number of 1
indicates that of the left-hand side connector, and pin number of 2
indicates that of the right-hand
side connector.
2: Selection of left-hand (F) side provides the first half (Y00 to Y1F) LED indications, and selection of right-hand (L) side provides the
latter half (Y20 to Y3F) LED indications.
3: When using A6CON2 or A6CON3, refer to Chapter 7.
