Mitsubishi QX10 - QY68 A Transistor Output Module (All Points Independent, Sink;Source Type)

3 - 12 3 - 12
MELSEC-Q
3 OUTPUT MODULE SPECIFICATIONS

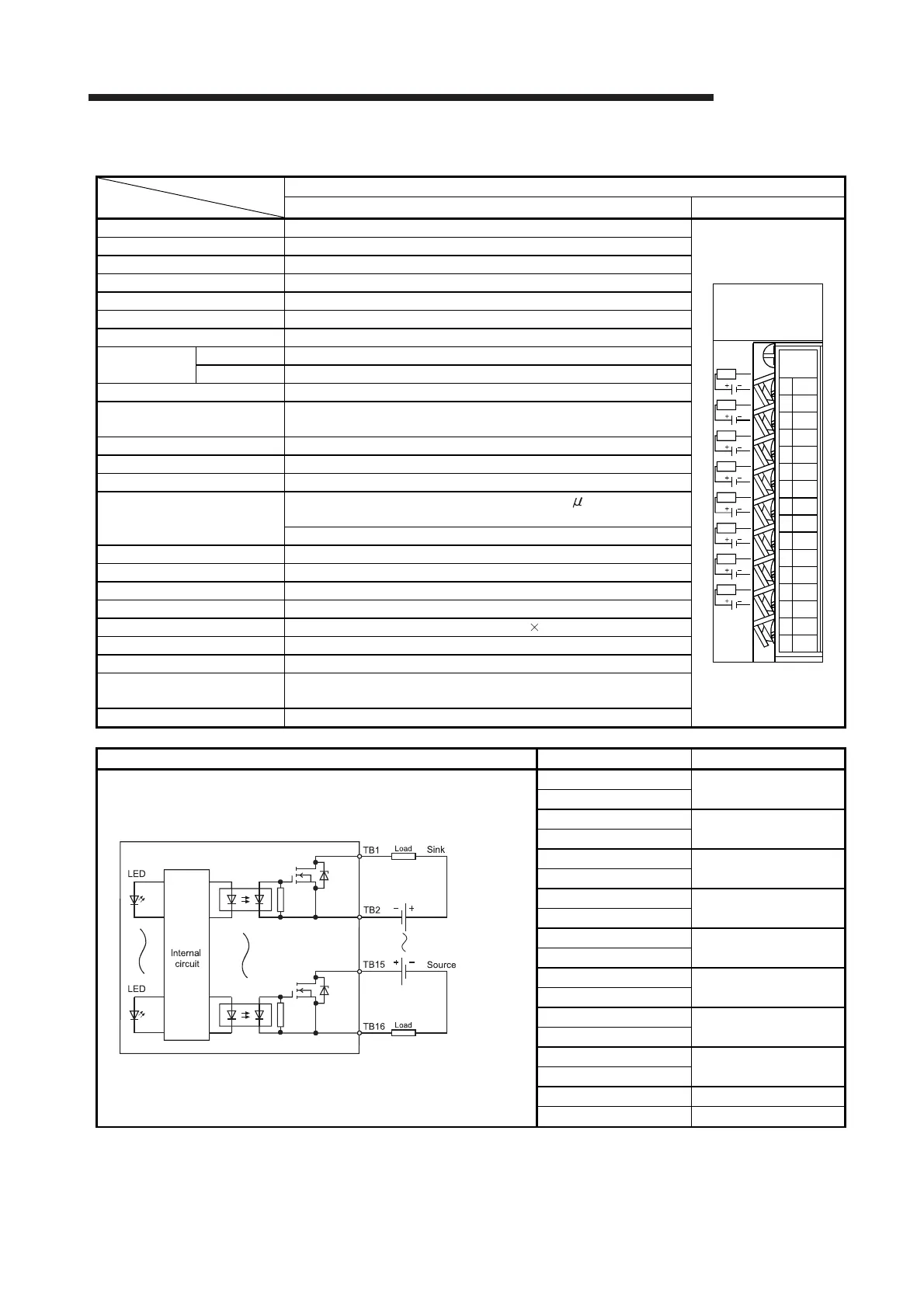

3.11 QY68A Transistor Output Module (All Points Independent, Sink/Source Type)
Type
Specifications
Transistor output module (All points independent, sink/source type)
QY68A Appearance
Number of output points 8 points
Isolation method Photocoupler
Rated load voltage 5-24VDC (+20/-10%)
Maximum load current 2A/point, 8A/unit
Maximum inrush current 8A, 10ms or less
Leakage current at OFF 0.1mA or less
Maximum voltage drop at ON 0.3VDC (MAX.) 2A
Response time
OFF to ON 3ms or less
ON to OFF 10ms or less (resistive load)
Surge suppressor Zener diode
Fuse
None (Attaching a fuse to external wiring is recommended. Refer to
Section 1.2)
External supply power None
Dielectric withstand voltage 560VAC rms/3 cycles (altitude 2000m)
Insulation resistance 10MΩ or more by insulation resistance tester
Noise immunity
By noise simulator of 500Vp-p noise voltage, 1 s noise width
and 25 to 60Hz noise frequency
First transient noise IEC61000-4-4: 1kV
Protection degree IP2X
Common terminal arrangement All points Independent
Number of occupied I/O points 16 points (I/O assignment is set as a 16-point output module.)
Operation indicator ON indication (LED)
External connections 18-point terminal block (M3 6 screws)
Applicable wire size 0.3 to 0.75mm
2
core (2.8mm OD max.)
Applicable crimping terminal R1.25-3 (Sleeved crimping terminals cannot be used.)
Internal current consumption
(5VDC)
110mA (TYP. all points ON)
Weight 0.14kg
External connection Terminal block No. Signal name
TB1
Y00
TB2
TB3
Y01
TB4
TB5
Y02
TB6
TB7
Y03
TB8
TB9
Y04
TB10
TB11
Y05
TB12
TB13
Y06
TB14
TB15
Y07
TB16
TB17 Vacant
TB18 Vacant
QY68A
5/12/
24VDC
2A
01234567
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
L
0
NC
NC
L
1
L
2
L
3
L
4
L
5
L
6
L
7
