1 GENERAL SPECIFICATIONS AND PRECAUTIONS FOR USE
(3) For high-speed input module/QX40H, QX70H, QX80H, QX90H
Select "Hi.input" or "Interrupt", which is the same module type as the one selected
with the high-speed input module switch, in "Type" combo box on the I/O
assignment tab of PLC parameter.
*1
Then, click the "Detailed setting" button, and
then select the input response time in "I/O response time"
*2 *3
combo box.
*1: If a different module type from the one selected by the function selector switch (switch 2) of
the high-speed input module is selected, an error occurs.
*2: If the noise filter is disabled with the noise filter selector switch (switch 1) of the high-speed
input module, the setting value is ignored.
*3: When the actual response time differs from the setting value, refer to the specifications of
the relevant input modules.

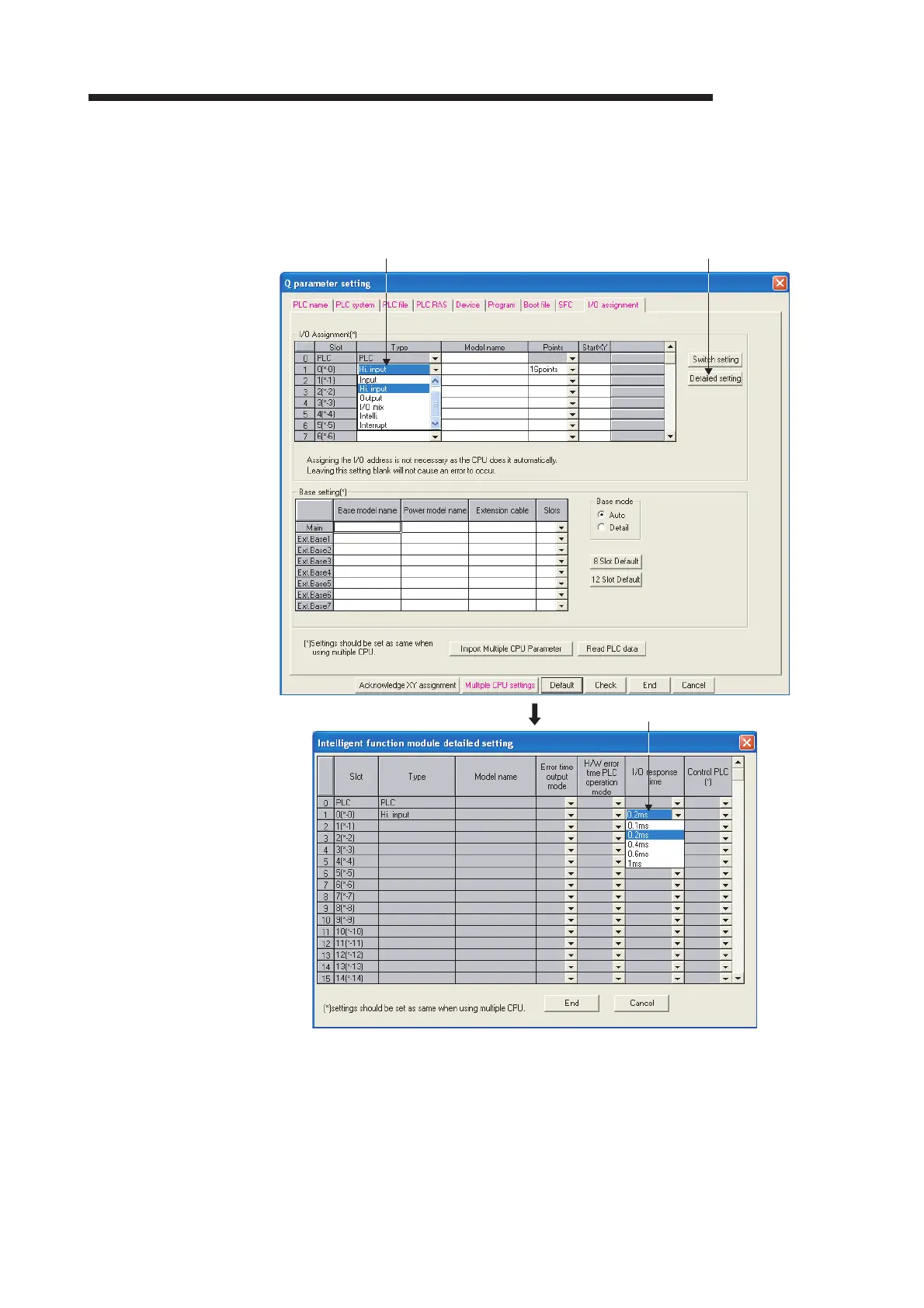

Choose I/O response time
(default: 0.2ms).
Choose Hi. input/Interrupt. Choose Detailed setting.
To Next Page
