Program
Pattern
No.
01 White Raster
15
Every other horizontal line (Red)
16
Every other horizontal line (Green)
17
Every other horizontal line (Blue)
35 SMPTE (Red)
36 SMPTE (Green)
37 SMPTE (Blue)
Program ROM : LC12 Ver. 1.6 (SL2U)
Program ROM : LC6 Ver. 1.7 (XL2U)
Timing of XGA signal (Vertical frequency : 60Hz) (XL2U)
H timing V timing
Signal
generator
Projector
Personal
Computer
PC monitor
RS-232C cable
RS-232C input
terminal
COMPUTER IN
terminal

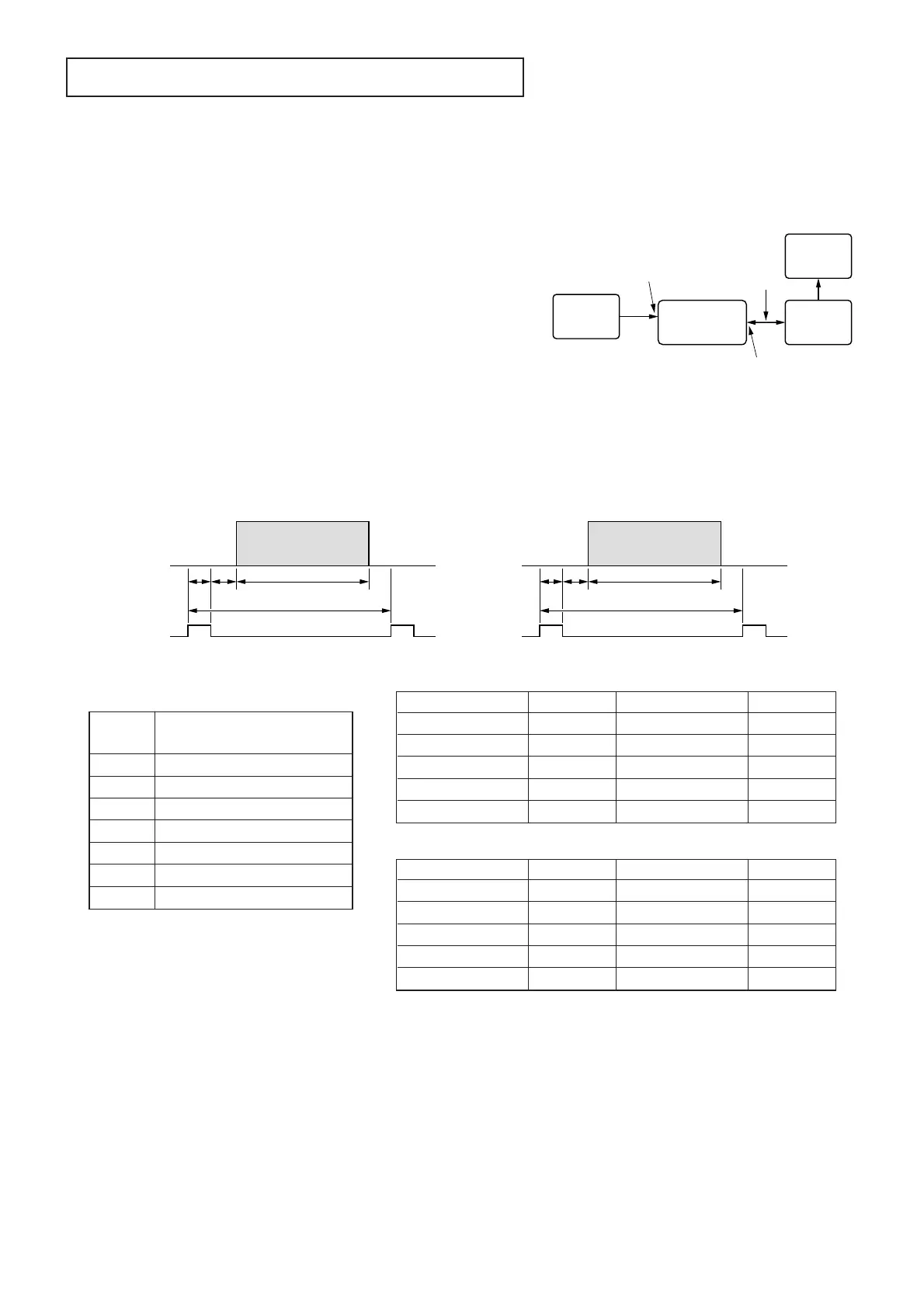

All the electrical adjustments for this projector require the communication
program [Hyper Terminal] of Microsoft
®
Windows
®
95/98/Me/XP
operating system.
¢¢
Necessary Equipment and Connecting
Connect the following equipment as shown in the right figure.
• This PROJECTOR
• Personal Computer (running Microsoft
®
Windows
®
95/98/Me/XP Operating
System)
• RS-232C cable
• Signal generator (equivalent to VG-812)
• PC monitor
¢¢
Test Signal
• SVGA signal (Vertical frequency : 60Hz) (SL2U)
• XGA signal (Vertical frequency : 60Hz) (XL2U)
The timing and patterns for the adjustment are as follows :
DOT-CLOCK [MHz] 40.0 VP [H] 628
HP [DOT] 1056 VDISP [H] 600
HDISP [DOT] 800 VDW [H] 4
HDW [DOT] 128 VBP [H] 23
HBP [DOT] 88 Interlace ---
Signal Polarity HD : +, VD : +
Timing of SVGA signal (Vertical frequency : 60Hz) (SL2U)
DOT-CLOCK [MHz] 65.0 VP [H] 806
HP [DOT] 1344 VDISP [H] 768
HDISP [DOT] 1024 VDW [H] 6
HDW [DOT] 136 VBP [H] 29
HBP [DOT] 160 Interlace ---
Signal Polarity HD : +, VD : +
To Next Page
