MKN FlexiCombi MagicPilot FKECOD615 - Description of the unit

Description of the unit
10 Installation instructions
3 Description of the unit
3.1 Overview of the unit
s
r
q
p
o
n
m
l
k
j
i h g f
e
d
c
b
a

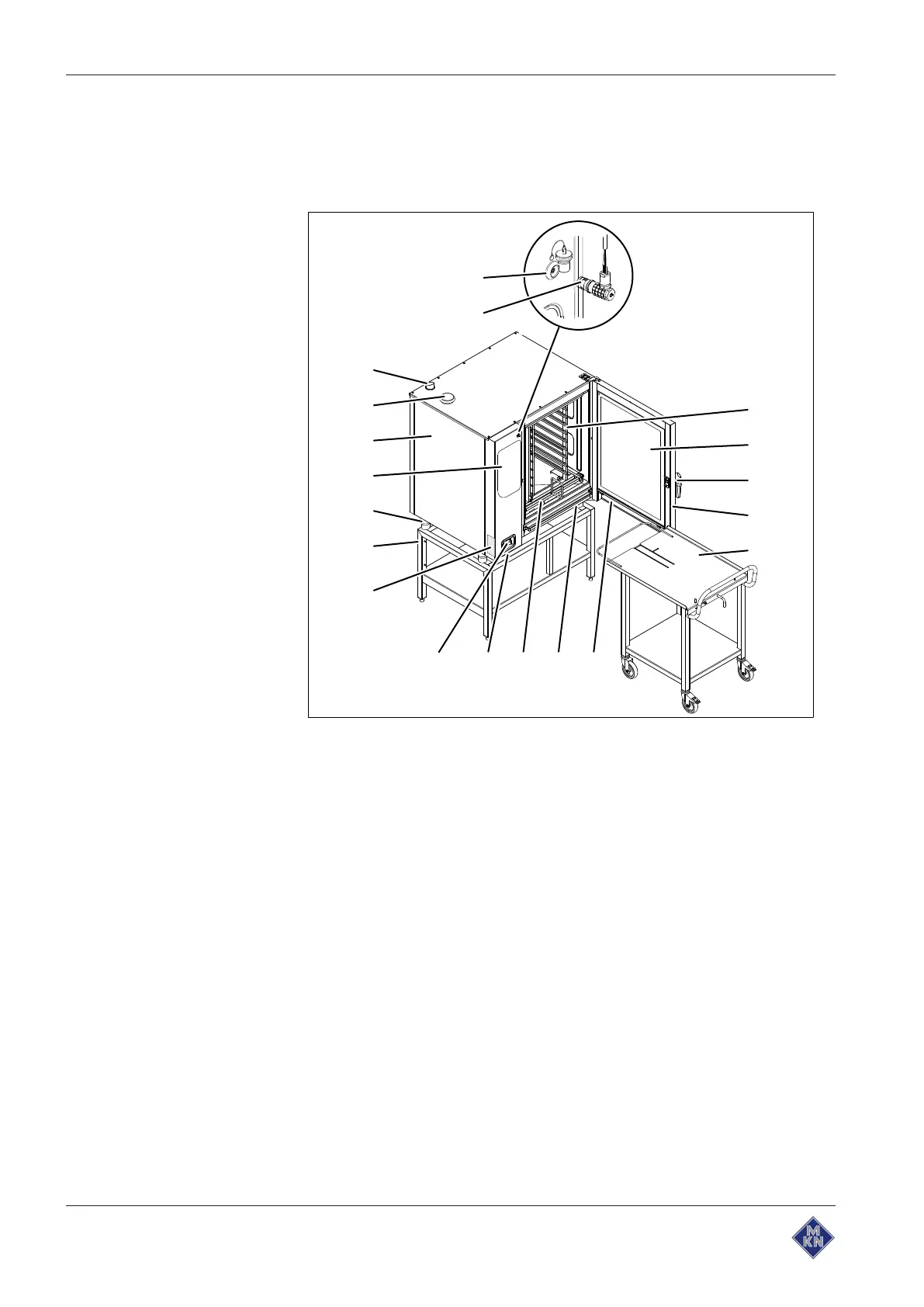

Image: Unit with tray rack trolley
a Tray rack k Nameplate
b Insulated window l Base frame (optional)
c Door handle m Equipment leg
d Cooking zone door n Control unit
e Tray rack trolley (optional) o Housing
f Steam drain channel, door p Air inlet
g Steam drain channel, unit q Steam outlet
h Guide rail for tray rack (optional) r Core temperature sensor
(optional)
i USB port (covered) s Connection for core temperature
sensor (optional)
j Hand shower (optional)
10013865-0AIBE-B
