6.6 Making the wastewater connection
Installation work involving wastewater must be performed by an
authorised plumbing contractor.
Observe the applicable regional regulations of the sewage utility
involved.
6.6.1 Connecting the wastewater line to a permanent connection
a
b
c
d
e
c
b
a
f

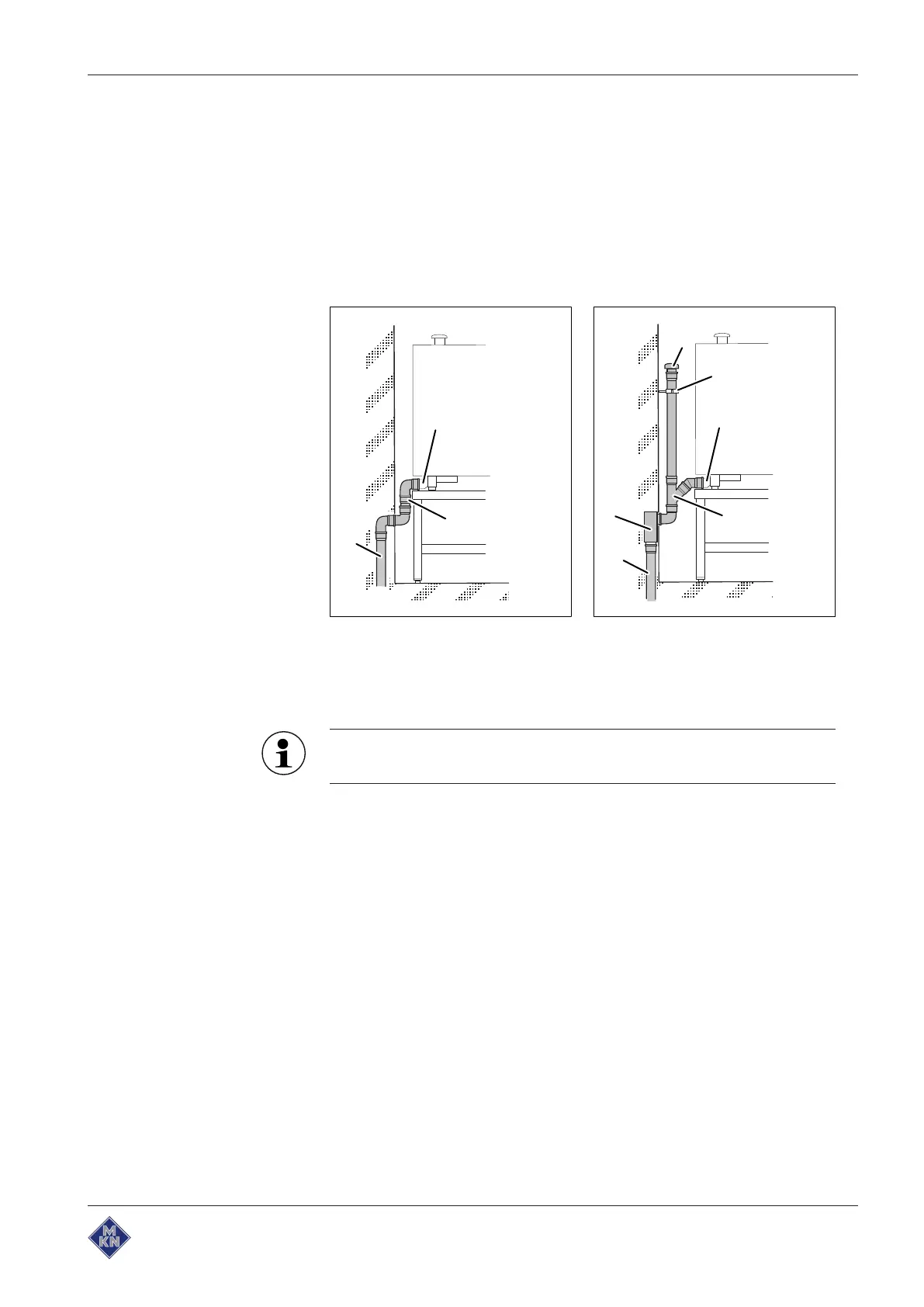

Image: Wastewater line to a permanent connection
a Wastewater connection d Sewer system waste trap
b Wastewater line e Pipe clamp
c Sewer system f Vacuum breaker
If a waste trap is installed in the wastewater system, a vacuum
breaker must be installed in the wastewater line.
Requirement Wastewater line complies with the specifications (see "Equipment
and connection data")
1. Install the wastewater line up to the connection at the sewer
system.
2. Secure the wastewater line with pipe clamps.
3. Fill the waste trap on the unit with tap water.
4. Fill out the Commissioning report.
