Setting up the unit
23Installation instructions
5.4 Setting up the unit on a base frame
ab
d
c
e
f

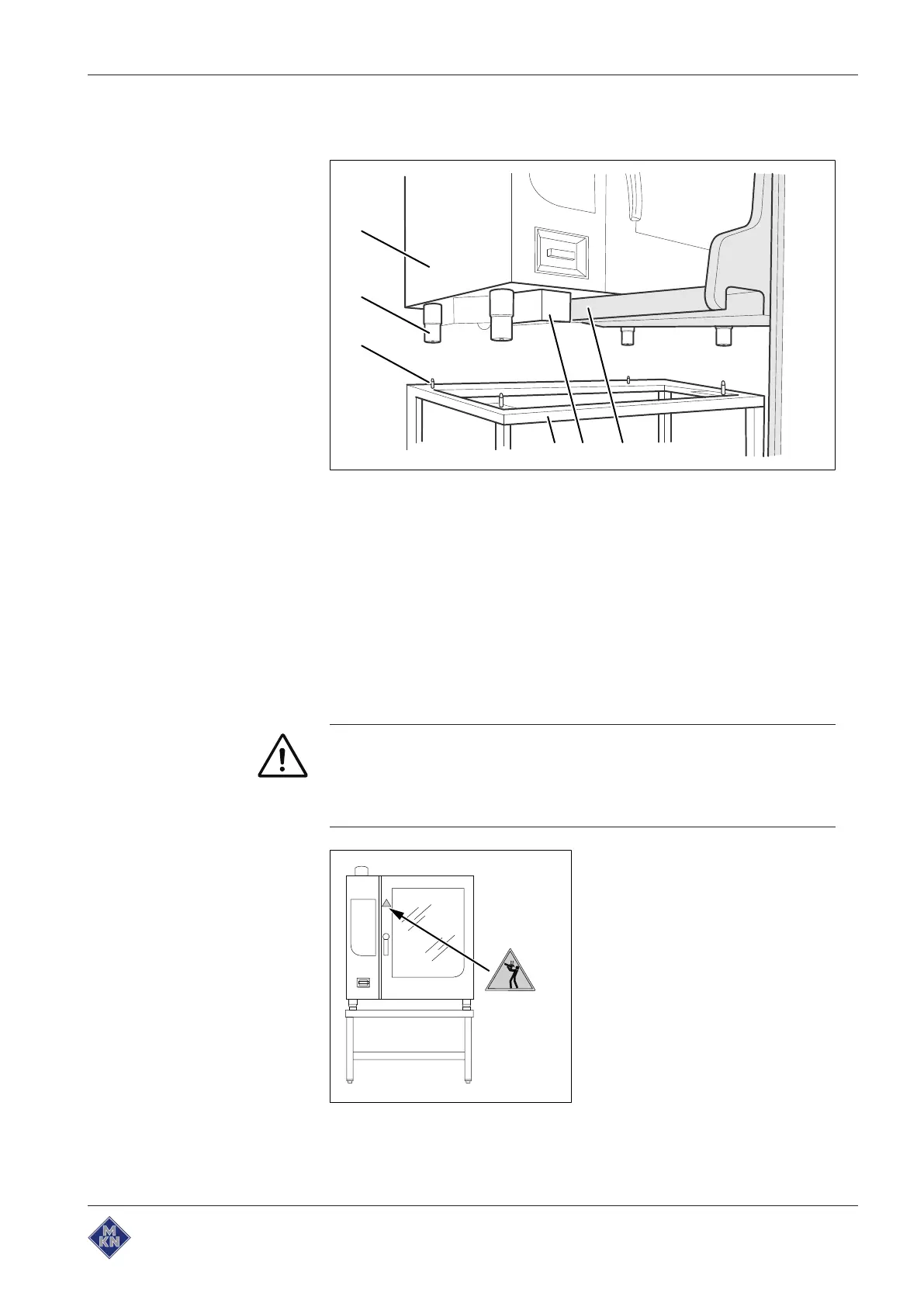

Image: Setting up the unit on a base frame
a Lifting fork d Stud bolt
b Waste trap on the unit e Equipment leg
c Base frame f Unit
Requirement The base frame must carry the weight of the unit
Base frame levelled
Base frame must be set up in accordance with the planning drawing
1. Lift the unit.
2. Place the unit over the stud bolts and onto the base frame.
CAUTION
Risk of scalding due to spillage of hot cooked food
• Attach sticker if the upper slide-in rails are higher than 1.60
m.
Image: Attach a warning sign about the shelf height
3. Clean the adhesive surface for the sticker.
4. Attach the sticker to the cooking zone door at a height of 1,6 m.
