Setting up the unit
24 Installation instructions
5.4.1 Installing the support rack
Depending on the version, the base frame can be equipped with a
support rack.
The support rack is used to hold containers, metal trays and grates.

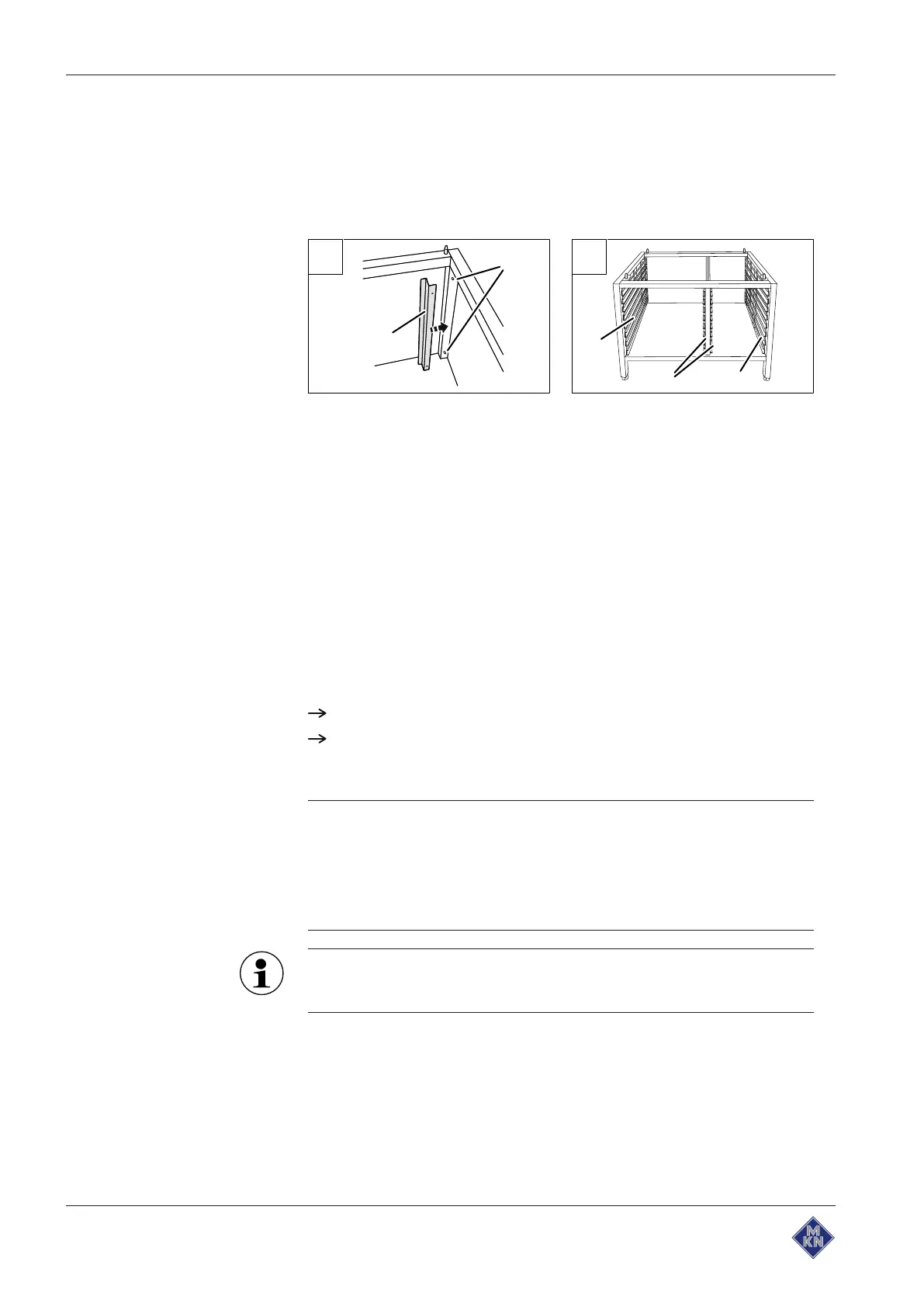

Image: A Stop profile, B Support rack
a Stop profile c Outboard support rack
b Pin d Inboard support rack
Requirement Pins installed in the uprights of the base frame
1. Place the stop profiles on the pins (at the back).
2. Install the support racks.
5.5 Aligning the unit
5.5.1 Aligning countertop unit
Requirement Base frame levelled
Level the unit by screwing the equipment legs in or out.
Fill out the Commissioning report.
5.5.2 Aligning floor-standing units
ATTENTION
Risk of water discharge from leaking cooking zone
The cooking zone will leak if the tray trolley is not aligned.
• Operate a floor-standing unit only with the tray trolley.
• Align the tray trolley carefully.
The tray trolley is needed to align a floor-standing unit.
Prepare the tray trolley.
Aligning tray trolley
Requirement The floor under and in front of the unit is flat
1. Level the unit by screwing the equipment legs in or out.
2. If the floor conditions are poor, insert spacers on the casters of the
tray trolley.
10013865-0AIBE-B
