MKN FlexiCombi MagicPilot FKECOD615 - Planning Drawing

Description of the unit
12 Installation instructions

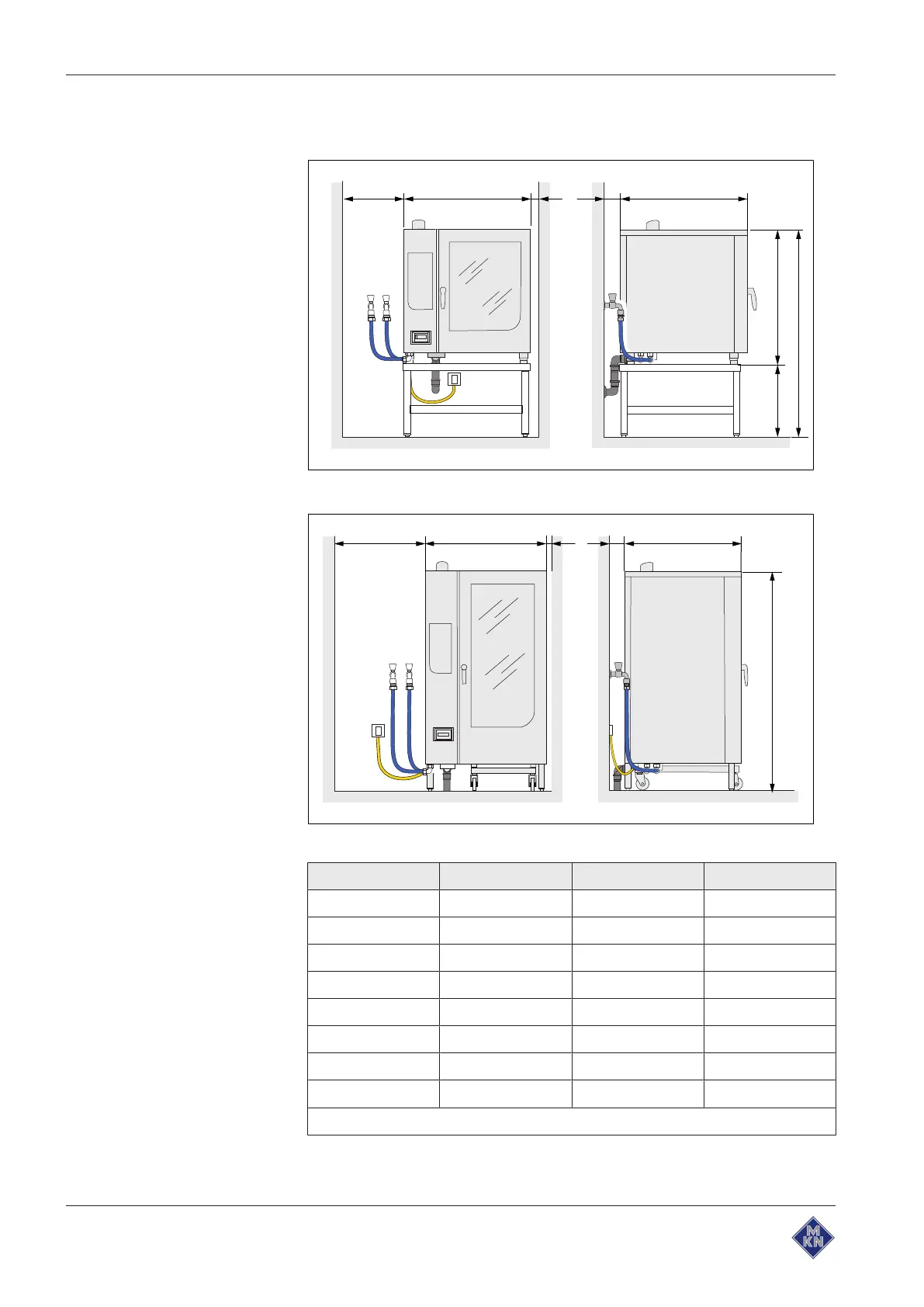

3.2 Planning drawing
F
BA
C
D
E
H
G
Image: Size 6XX and 1XX
A
H
B C D
E
Image: Size 2XX
Size 615, 621 115, 121 215, 221
A 50 50 50
B 997 997 1075
C 50 50 50
D 50 50 50
E 799 799 813
F 790 1060 ---
G 850 580 ---
H 1640 1640 1960
All dimensions in mm
