❑ Connect your radio system and plug the elevator servo into the receiver. Double-check that the elevator trim lever on
your transmitter is centered.
❑ Attach the servo horn to the servo, making sure it's centered and points up toward the top of the fuselage.
❑ With the elevator and the servo horn centered, draw a mark on the elevator pushrod wire where it crosses the third
hole out from the center of the servo horn.
❑ Using a pair of pliers, carefully bend the pushrod wire at a 90º angle (at the mark you drew) and cut off the excess,
leaving 5/16" of wire beyond the bend.

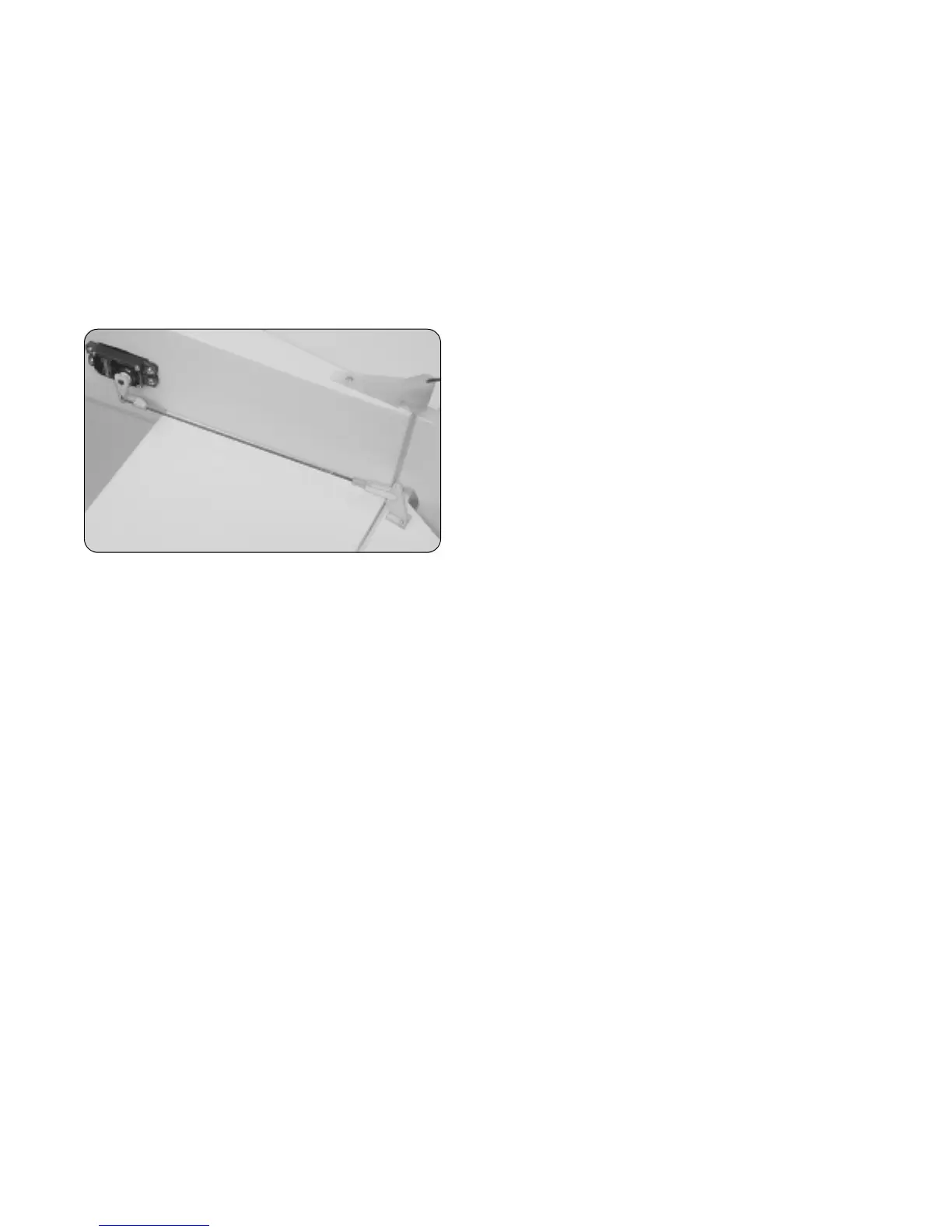

❑ Secure the pushrod wire to the servo horn using one
nylon 90º snap keeper.
❑ Install and tighten the servo horn retaining screw to
secure the servo horn to the servo.
❑ Repeat the same procedures to install the rudder pushrod assembly. The setup is exactly the same, the only
difference being that the centerline of the rudder control horn should be 1-1/4" up from the bottom of the rudder.
