Topology Configuration
44
04/99 AWB 2700-1311 GB
Suconet K master

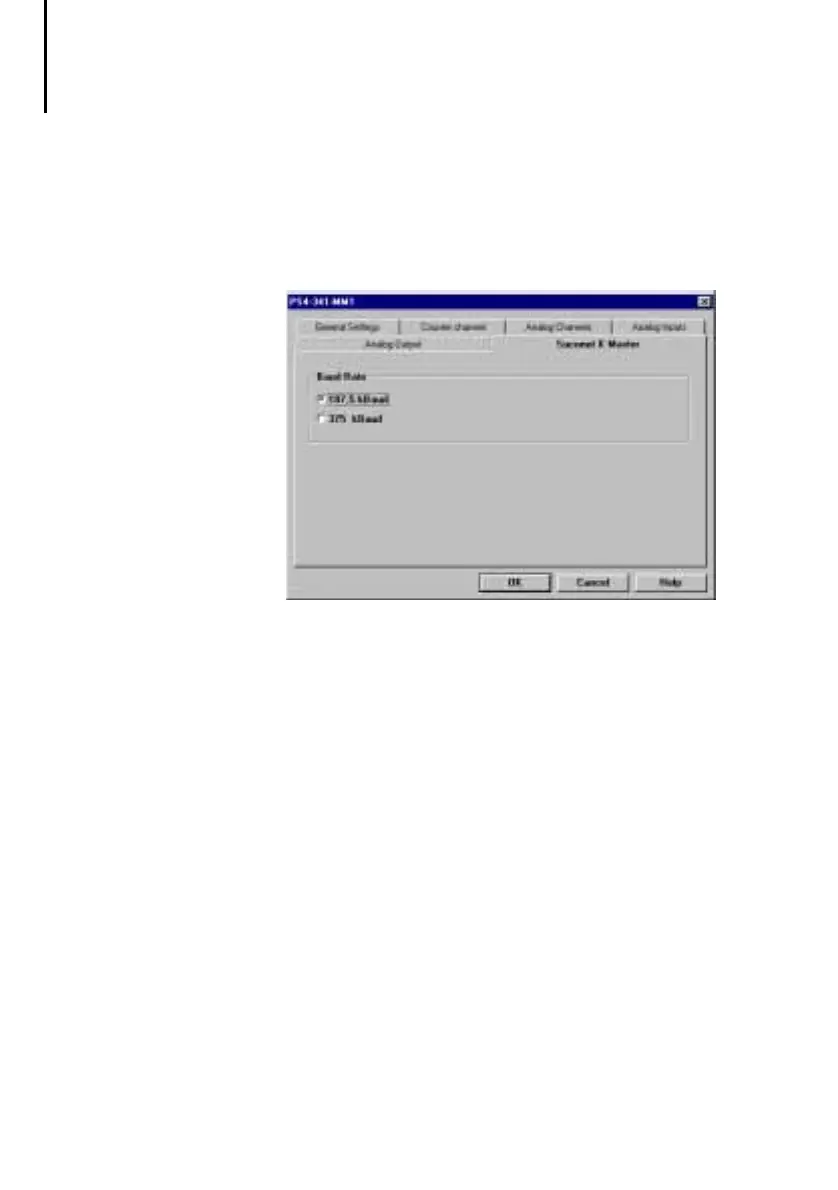

왘 Click the Suconet K Master tab.
Requirements: Master must be selected as Bus
Status in the General Settings dialog box. The
following dialog box will appear:
Enter here the transmission speed of the data
exchange via Suconet K:
187.5 kBaud:
왘 Select 187.5 kBaud as the data transfer rate if
Suconet K1 stations are also connected to the
Suconet K line.
375 kBaud:
왘 Select 375 kBaud as the data transfer rate if only
Suconet K stations are connected to the
Suconet K line.
