Moeller PS 4-341-MM1 User Manual

Setting PS 4-300
parameters
45
04/99 AWB 2700-1311 GB
Suconet K slave
왘 Click the Suconet K Slave tab.

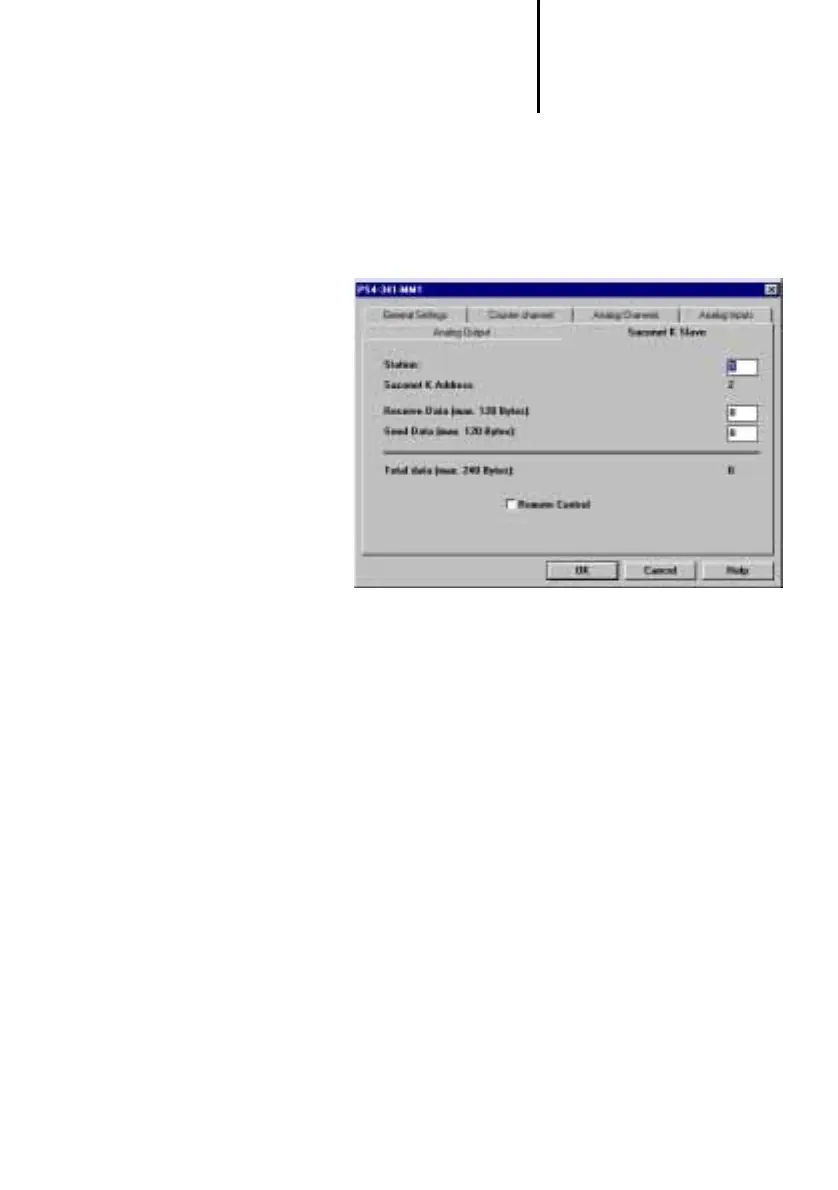

Requirements: Slave must be selected as Bus
Status in the General Settings dialog box. The
following dialog box will appear:
Enter the following in this dialog box:
Station Number:
The station number is the ID number of the station on
the Suconet K line. The station number for a master
is alwas “0”. The station number for a slaves starts
from “1” in ascending order. Enter the number
required. This will be displayed in the configuration of
the relevant master.
Suconet K Address:
This shows the internal Suconet K address. This
entry cannot be manipulated. The Suconet K
address is always “1” higher than the station number.
H1311g.bk Seite 45 Freitag, 4. Juni 1999 1:12 13

Moeller PS 4-341-MM1 Specifications

General

Brand	Moeller
Model	PS 4-341-MM1
Category	Controller
Language	English
