Setting PS 4-300
parameters
51
04/99 AWB 2700-1311 GB
Setting analog input parameters

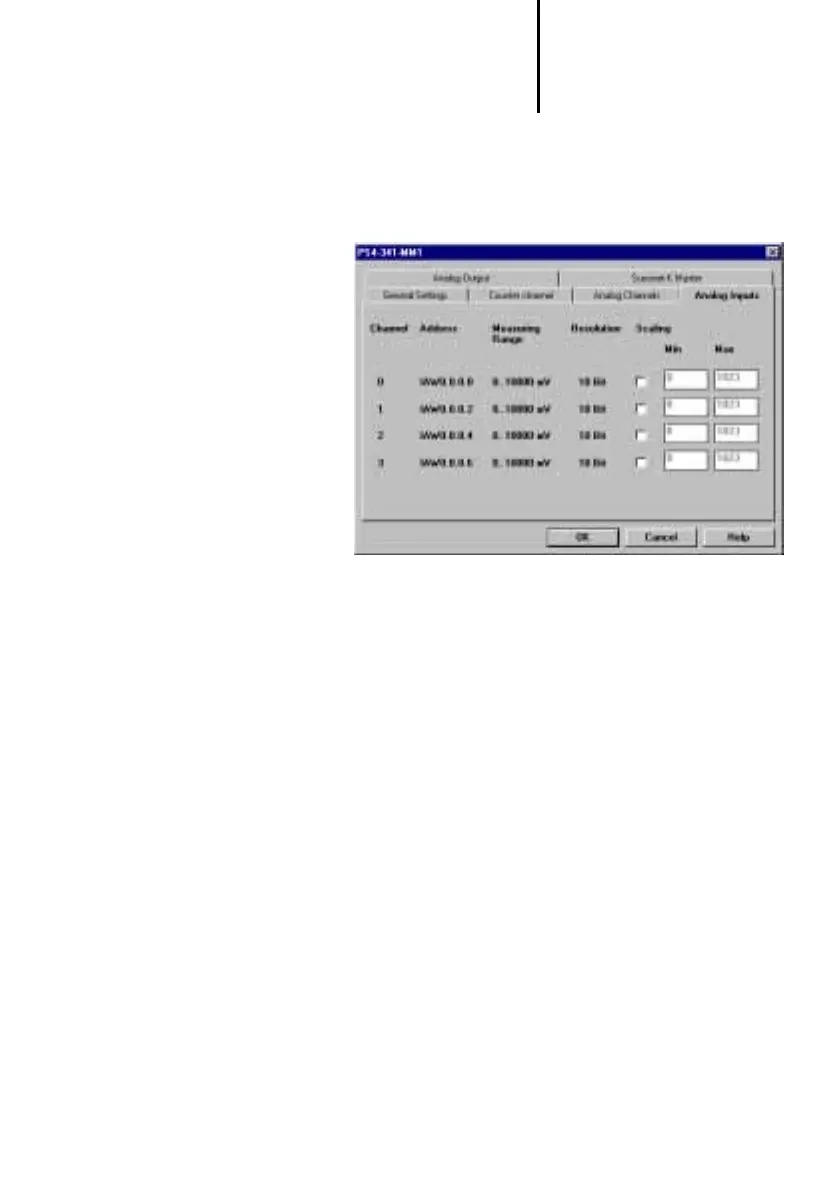

왘 Open the dialog box ‹Edit ➞ Set Parameters ➞
Analog Inputs›.
Channel:
Number of the analog channel.
Address:
Operand address of the input channel for addressing
from the user program.
If you which to address values directly via peripheral
access from the user program, declare the input
variables with %IPAW.
Measuring range:
Value range of physical measured values provided by
the input channel.
Resolution:
Bit resolution of the measured value recorded.
