Topology Configuration
52
04/99 AWB 2700-1311 GB
Scaling:
Value range of the input operand in which the
physical measuring values are converted with a linear
function.
Scaling can be activated for every channel
separately. Values between –32768 and +32767 are
permissible for Min and Max. Min must always be
less than Max.
When scaling is deactivated, the scaling range
corresponds to the 12-bit resolution: 0 to 1023.

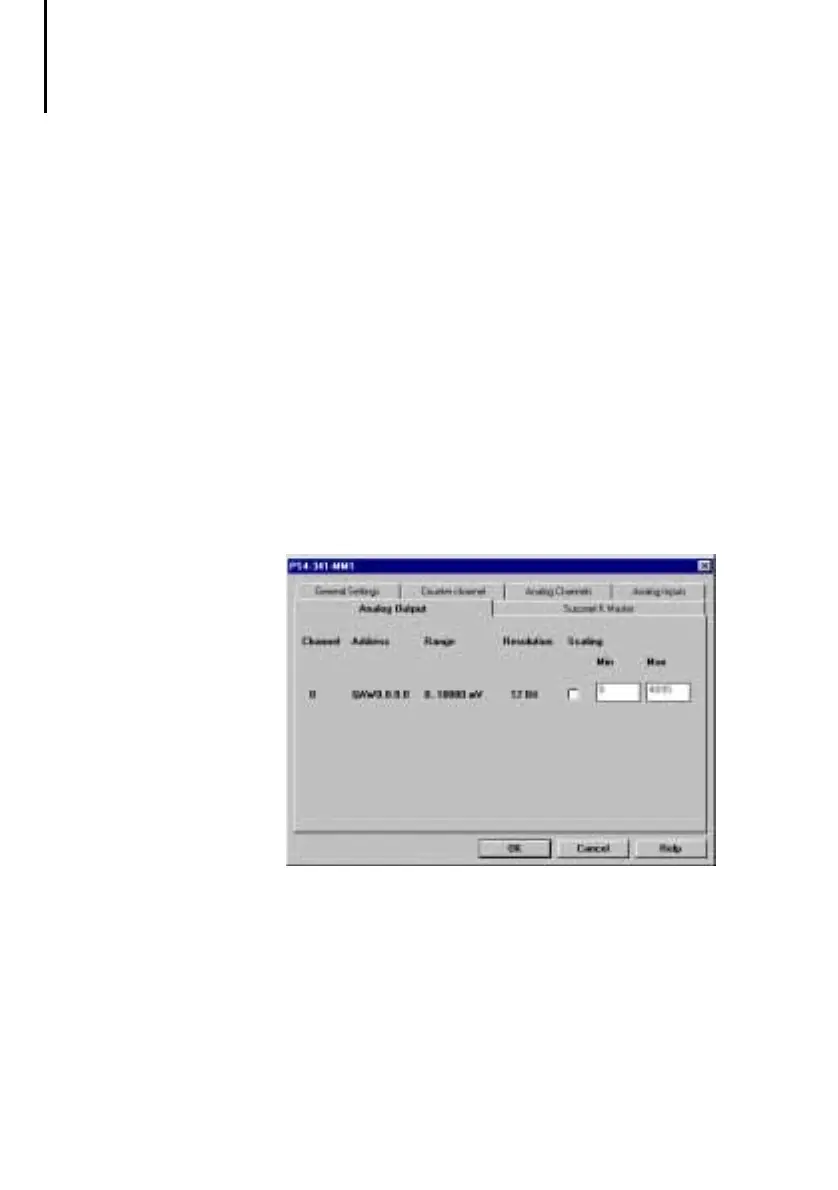

Setting analog output parameters
왘 Open the dialog box ‹Edit ➞ Parameters ➞
Analog Output›.
Channel:
Number of the output channel.
