molex BradControl HarshIO 600 eIP - Port Wiring Type

HarshIO 600 eIP

40

IP67 Digital I/O Modules for EtherNet/IP
Port wiring type

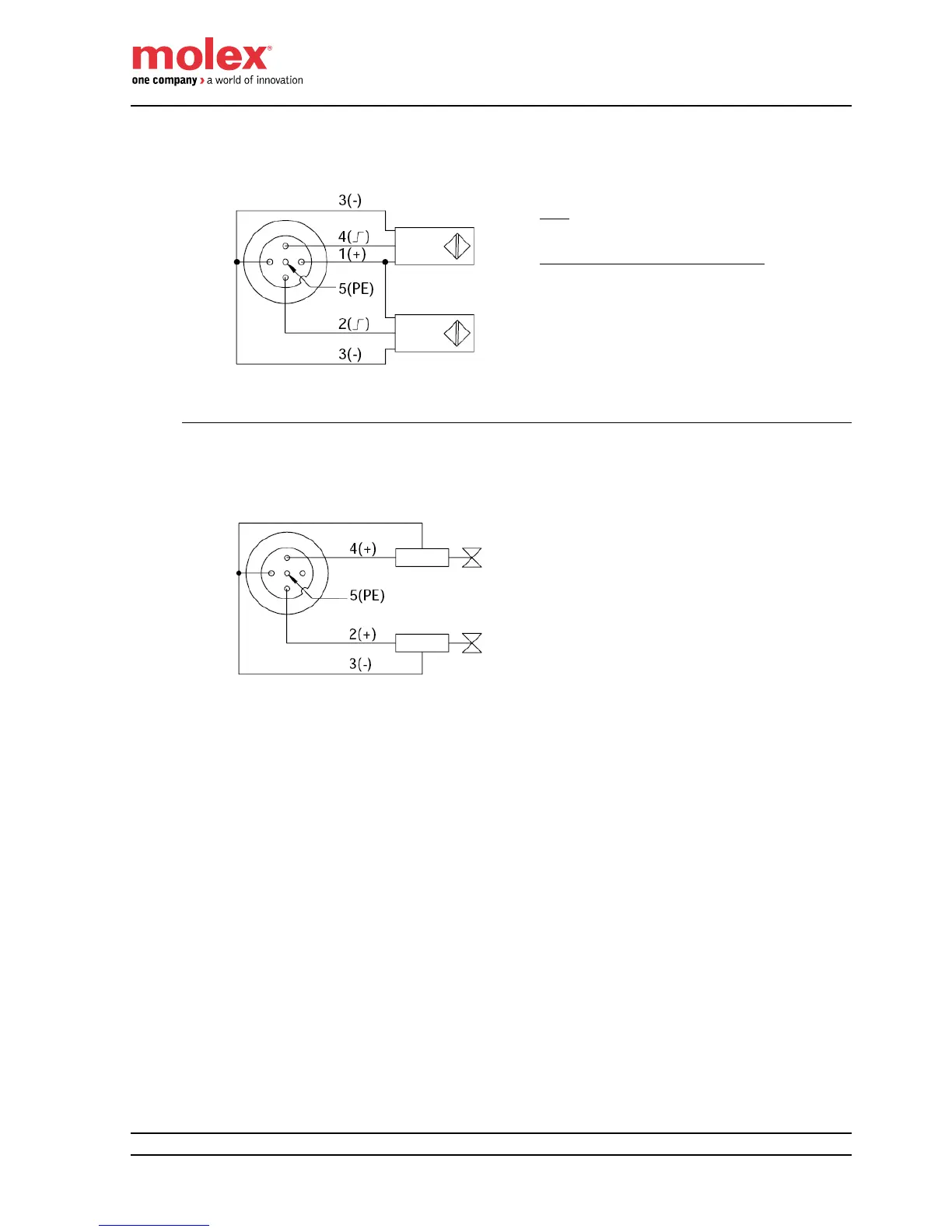

2 Input channels per port – Twin wired
2 Output channels per port – Twin wired
Note:
PNP wiring with a 2 wires input sensor
Connect pin 1 (24 V) and pin 4 or 2 (signal in)
