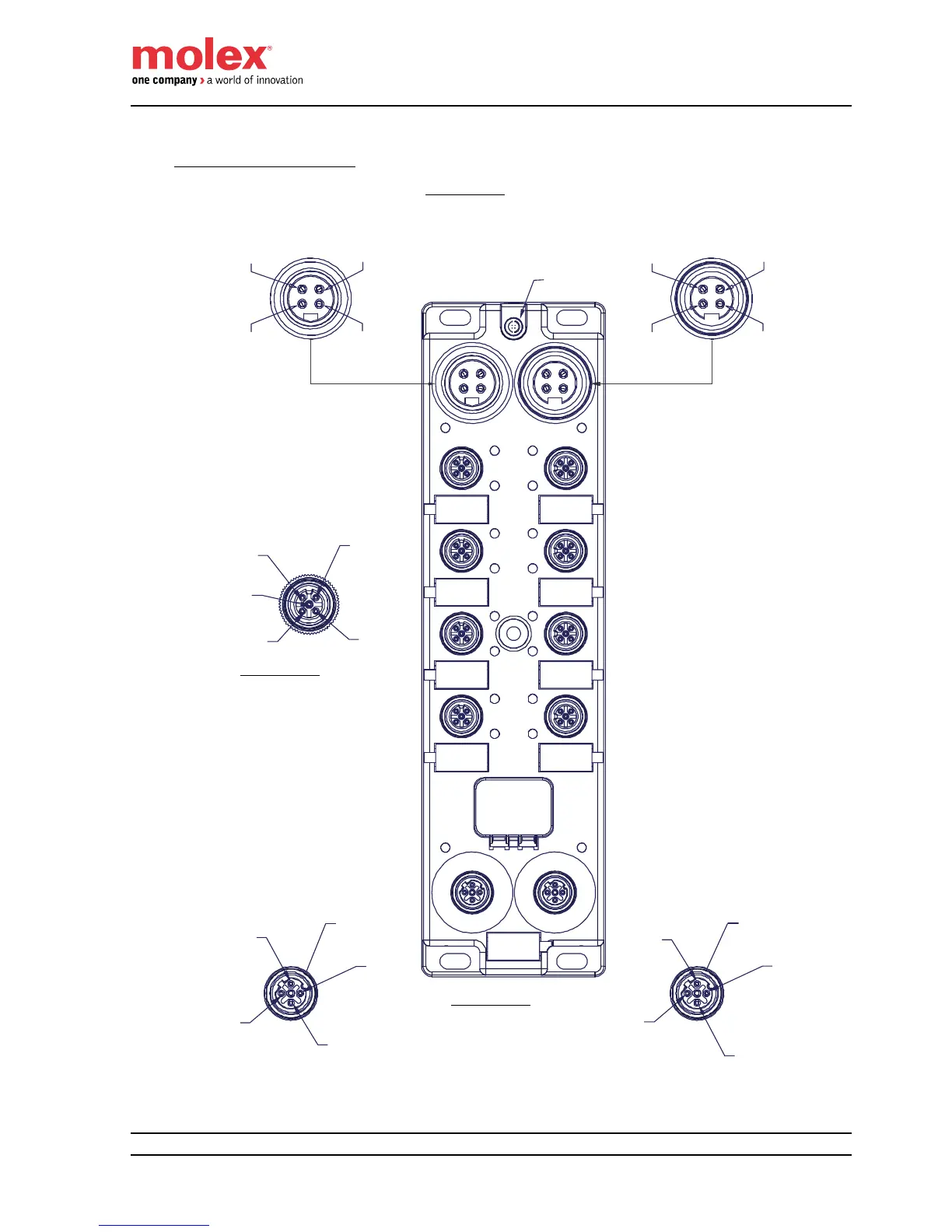

Power IN
4-pole, 7/8 (Mini-Change), Male
I/O Ports
5-pole, M12 (Micro-Change),
Female, A-Code
Power OUT
4-pole, 7/8 (Mini-Change), Female
Wiring Information:
1 - 24 VDC (Outputs Power)
2 - 24 VDC (Module & Inputs Power)
3 - 0 V (Ground Module & Inputs Power)
4 - 0 V (Outputs Power)
Wiring Information:
1 - +24 VDC
2 - B Input / Output
3 - 0 V (Ground)
4 - A Input / Output
5 - PE (Protected Earth)
2
3
4
1
PE
Wiring Information:
1 - TX+
2 - RX+
3 - TX-
4 - RX-
Ethernet Port 1 (ETH1)
4-pole, M12(Micro-Change),
Female, D-Code
Ethernet Port 2 (ETH2)
4-pole, M12(Micro-Change),
Female, D-Code
3
2
1
4
PE
PE
2
13
4
+
-
PE
Ui Uo
I 0
I 1
I 2
I 3
I 4
I 5
I 6
I 7
I 8
I 9
I 10
I 11
I 12
I 13
I 14
I 15
ETH1
LINK
ETH2
LINK
BUS
I
X
UL UB
