IP67 Digital I/O Modules for EtherNet/IP
I/O data mapping
The I/O process data are available through the EtherNet/IP assemblies:
Assembly #103 for Input process data
Assembly #104 for Output process data
Assembly #106 for Configuration data
o Note: The data size can be set to “0” if the scanner doesn’t need to send Configuration data
at the establishment of the connection (Forward Open request).
Note: If your controller configuration software doesn’t support the management of EDS files, you may have to
configure manually the assembly numbers to access the process data.

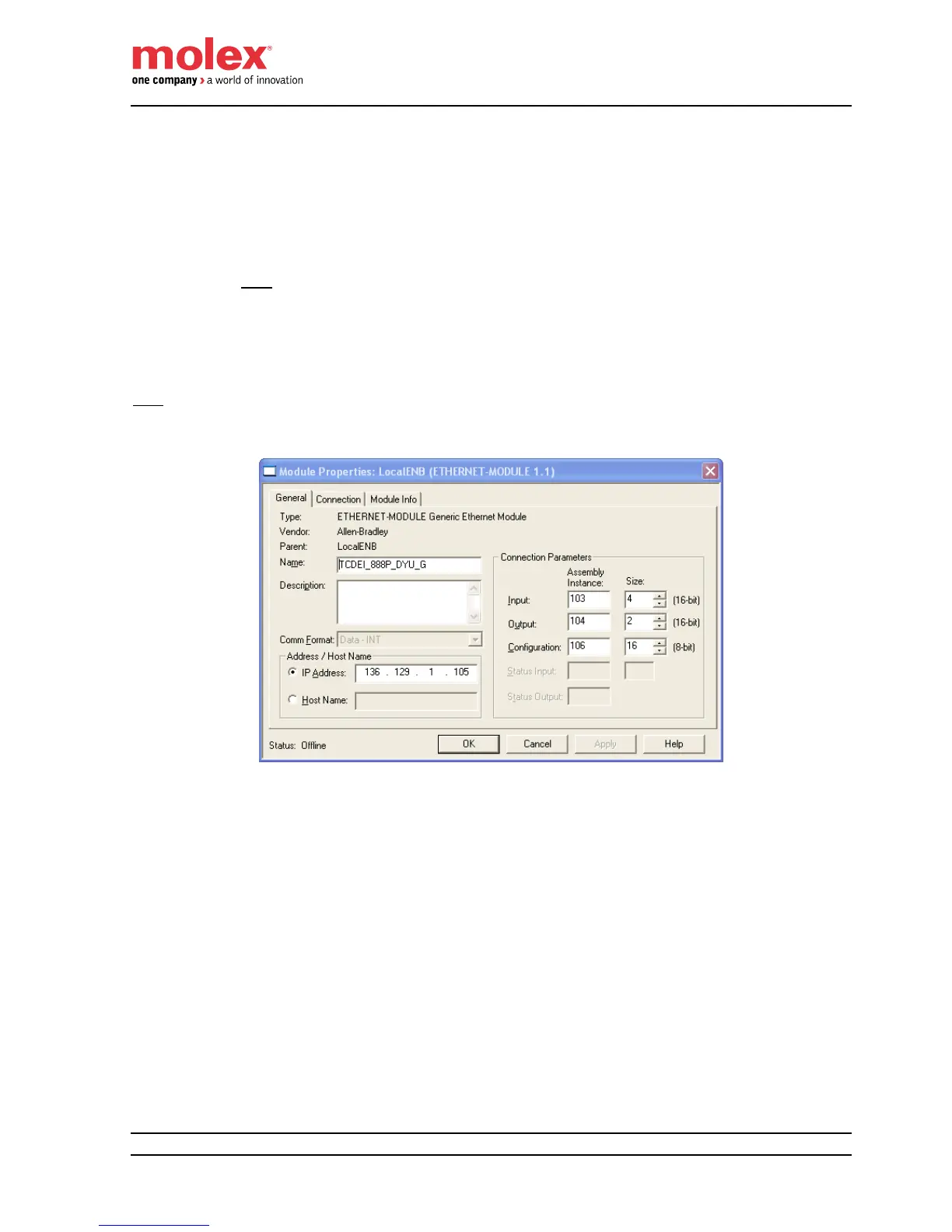

– Example of HarshIO 8in/8Out assembly configuration
in Rockwell Automation RSLogix 5000 –
