IP67 Digital I/O Modules for EtherNet/IP
8. Configuration using RSLogix 5000
This chapter presents an example of how to proceed to the commissioning of the HarshIO EtherNet/IP
modules based on the Rockwell Automation RSLogix™ 5000 software version 20.
ESD File
Before proceeding to the product commissioning, the HarshIO modules require a description file (also called
EDS file) that has to be imported in the Rockwell Automation RSLogix™ 5000 software.
The EDS file as well as the product documentation can be downloaded from the Molex web site.

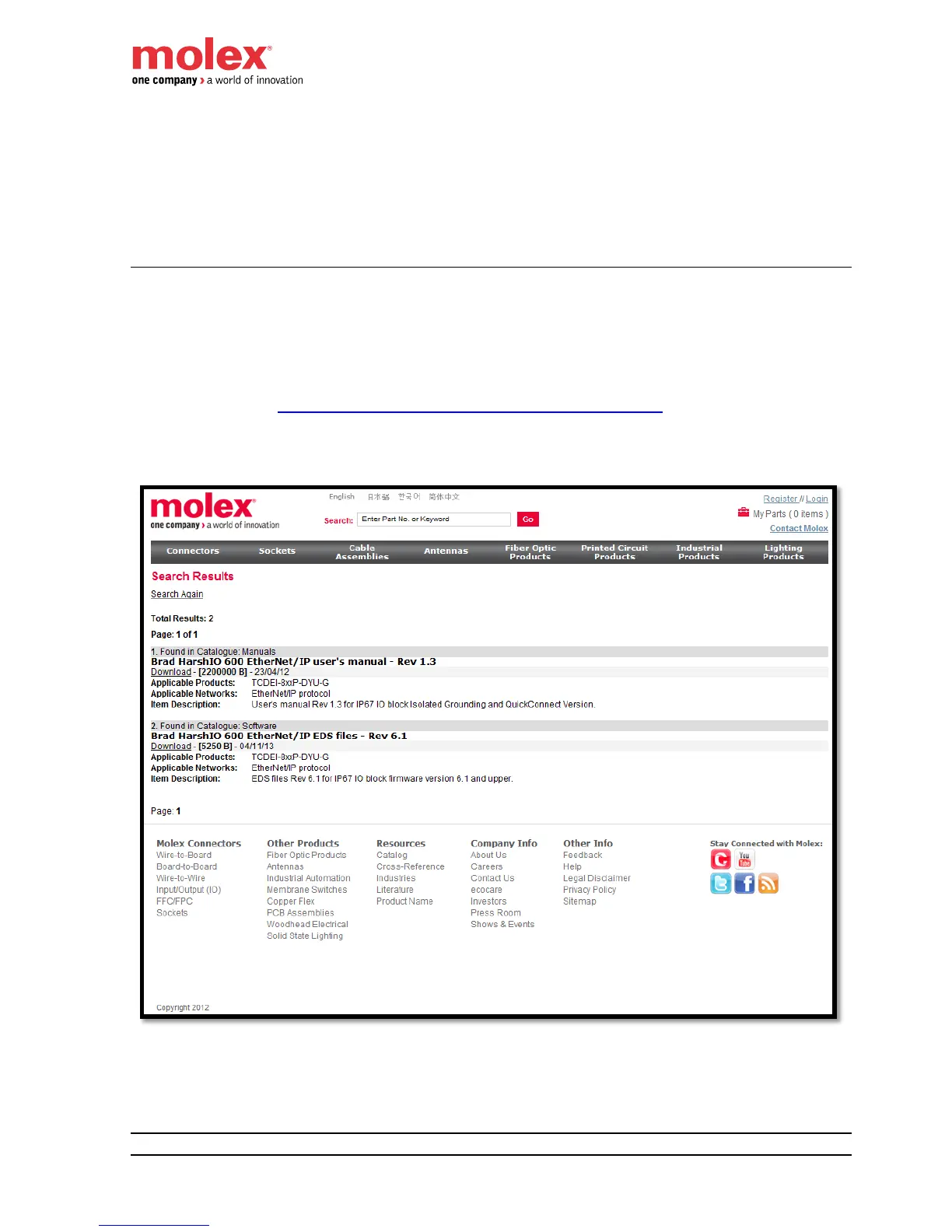

http://www.molex.com/molex/mysst/DownloadCenter.action
and use option 1 – “Search by part number” to look for TCDEI-8xxP-D1U-G (5-pin power connector) or TCDEI-
8xxP-DYU-G (4-pin power connector) parts.
