molex BradControl HarshIO 600 eIP - 2 General Description; Introduction

HarshIO 600 eIP

9

IP67 Digital I/O Modules for EtherNet/IP
2. General Description
Introduction
BradControl™ HarshIO eIP (EtherNet/IP) modules provide a reliable solution for connecting industrial
controllers to I/O devices in harsh duty environments. Contained in an IP67 rated housing, BradControl I/O
modules can be machine mounted and are able to withstand areas where liquids, dust or vibration may be
present. This makes them ideally suited for many applications including material handling equipment and
automated assembly machinery.
All BradControl™ HarshIO modules with Micro-Change
®
(M12)
ports accept both threaded cordsets and Molex Ultra-Lock™ system.

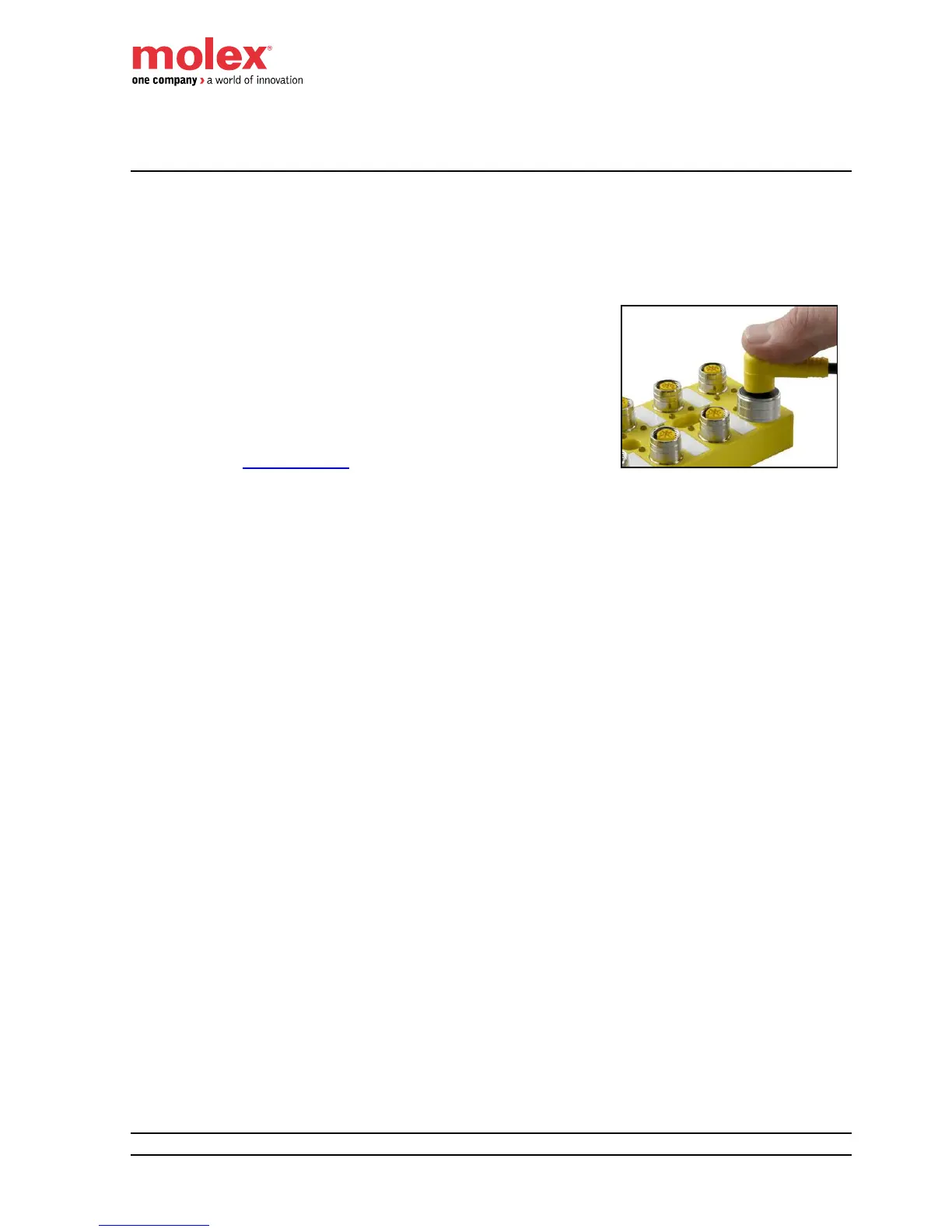

Ultra-Lock™ connection System! The fastest, easiest and most
secure connection ever designed. Ultra-Lock™ technology is designed
for higher performance and reliability. Discover how the push-to-lock
technology of the Ultra-Lock connection system can eliminate your
downtime, increase your productivity and lower your costs. More
information visit: www.molex.com .
BradControl™ HarshIO 600 includes advanced diagnostic features. Each module embeds visible LEDs
to provide for maintenance personnel the ability to easily determine I/O, module and network status. These
statuses are also available through the process data image or via extended slave diagnostics telegram.
BradControl™ HarshIO 600 main features include:
 Module is housed in an IP67 rated enclosure that when properly installed—according to IEC
60529—provides protection against the ingress of dust, water
 16x digital channels with up to 1ms I/O cycle time
 Integrated 2-port unmanaged Ethernet switch with cross-over capability
 Isolated grounding to able to use 2 separate power supplies to power the module logic/input
ground and the module output ground for safety application
 Digital input and output short circuit protection
 Quick Connect feature to power up and run the HarshIO module in less than 500ms for robotic
application where I/O are control on a tool changer
BradControl™ HarshIO 600 is available in various combinations:
 16x Inputs
 16x Outputs
 8x Inputs + 8x Outputs
 12x Inputs + 4x Outputs
Whatever the combination, the digital inputs and outputs are always PNP.
