HarshIO 600 eIP

75

IP67 Digital I/O Modules for EtherNet/IP

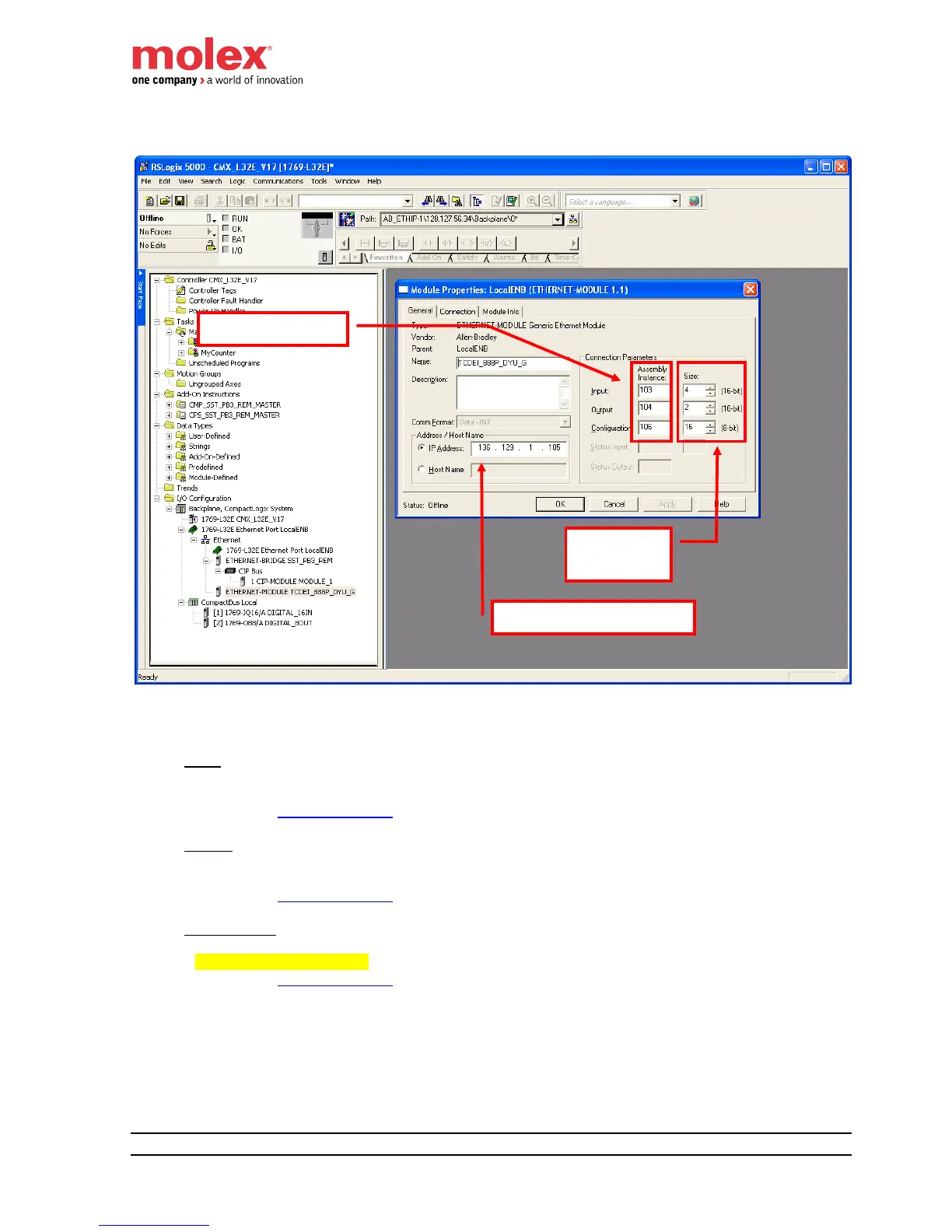

In the configuration of the "ETHERNET-MODULE", set the parameters of the HarshIO 600 eIP with the
following properties:
Connection Parameters:
Input:
Assembly: 103
Size (in 16-bit word): 4
See chapter I/O Data Mapping for input data mapping details.
Output:
Assembly: 104
Size (in 16-bit word): 1 or 2
See chapter I/O Data Mapping for output data mapping details.
Configuration:
Assembly: 106
Size (in 8-bit byte): 16 or 0
See chapter I/O Data Mapping for configuration data mapping details.
IP address of HarshIO
Instance numbers
Size of each
parameter
