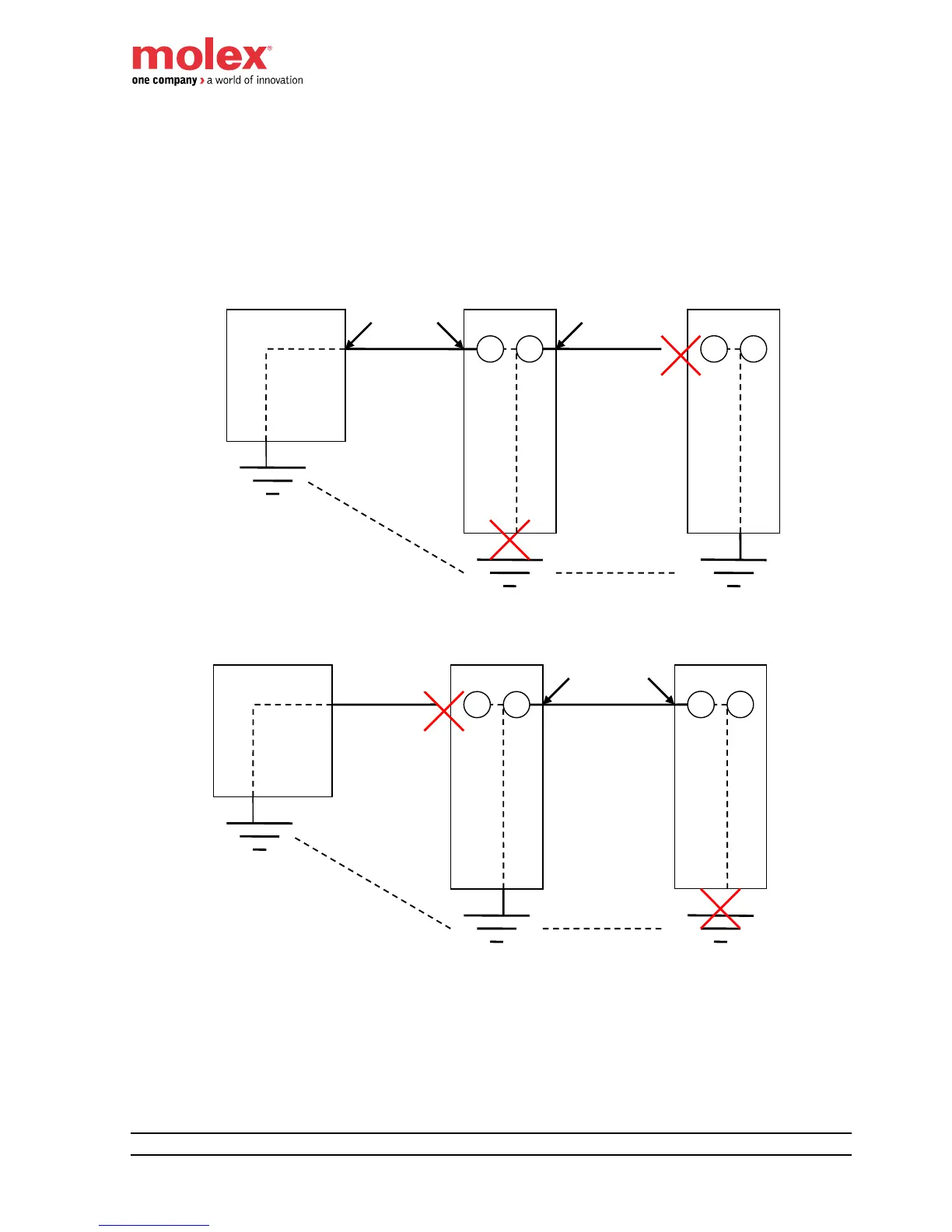

If the earth connection is done by one of the Ethernet cable, in order to avoid noise loop it is important to not
connect other earth connection of the module to the ground (See Figure 9_2).
DO NOT
GROUND
DO NOT
GROUND
DO NOT
GROUND
DO NOT
GROUND
Ethernet
Ground
Ethernet
Ground
Ethernet
Ground
Ethernet
Device
Ethernet
Device
Ethernet
Device
Ethernet
Device
Ethernet
Switch or PLC
Ethernet
Switch or PLC
Figure 9_2
