molex SST-PB3S-CLX-RLL Series User Manual

User Reference Guide SST-PB3S-CLX-RLL
20 Quick Start
©2014 Molex Inc. Industrial Products Business Unit, Integrated Products Division
Document Edition: 1.0, Document #: 715-0109, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.

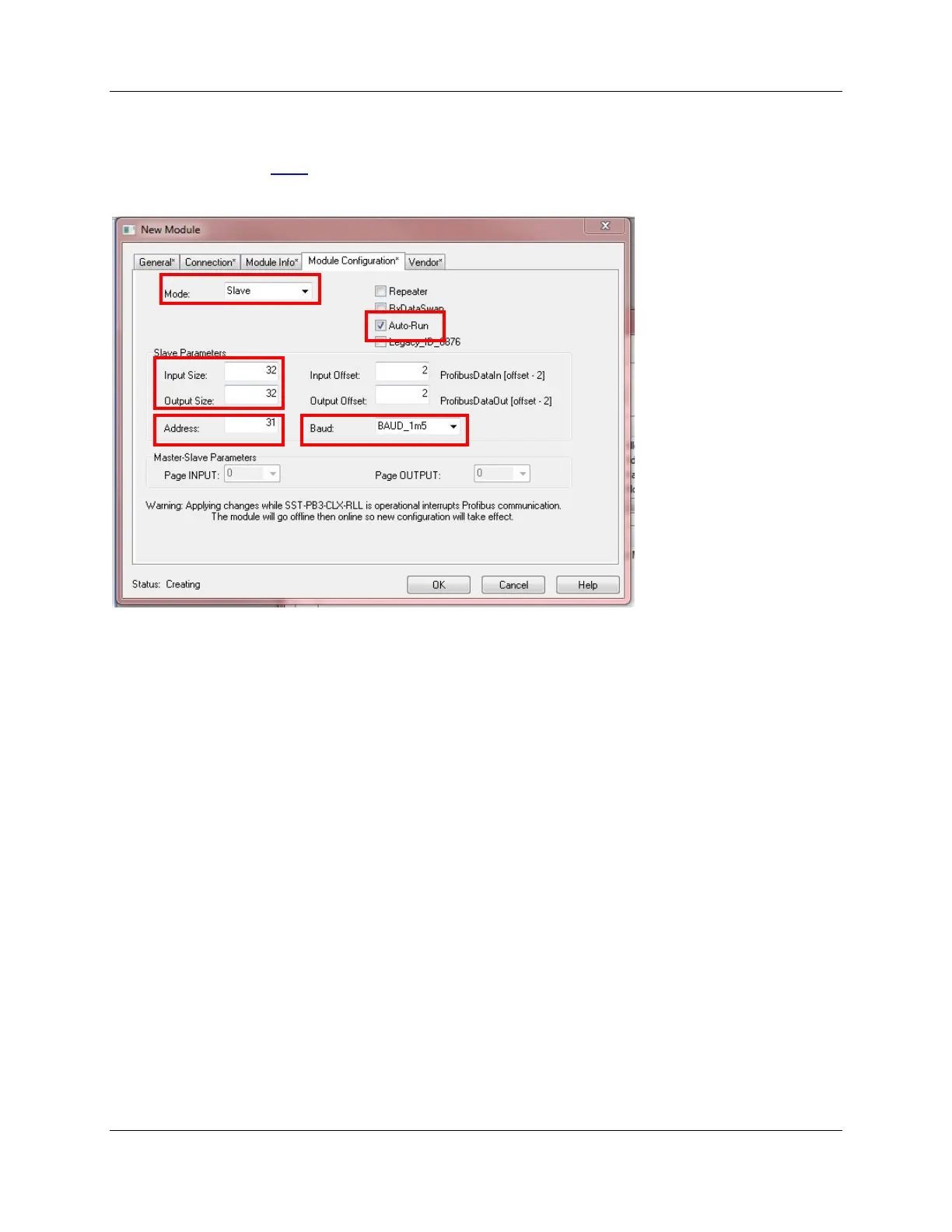

5. In the Module Configuration Tab, select Slave in Mode drop-down, select Auto-Run, fill in
slave data transfer sizes, Profibus slave station number (Address), Profibus Baud rate, select
OK. See section 6.5.2 for more details on the parameters that need setting as indicated in red
below.
