SST-PB3S-CLX-RLL User Reference Guide
Slave Functionality 45
©2014 Molex Inc. Industrial Products Business Unit, Integrated Products Division
Document Edition: 1.0, Document #: 715-0109, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
6.5.2 Configuring the CLX Slave in RSLogix 5000 using Add-on-Profile
(AOP)
With AOP, the configuration file is automatically updated and adjusted to the correct length to
configure the module successfully. Follow the steps below to configure module as DP Slave.
1. See the quick start section 3.52 on the initial steps on getting the module added to the I/O
configuration in your RSLogix 5000 project and ready to configure.

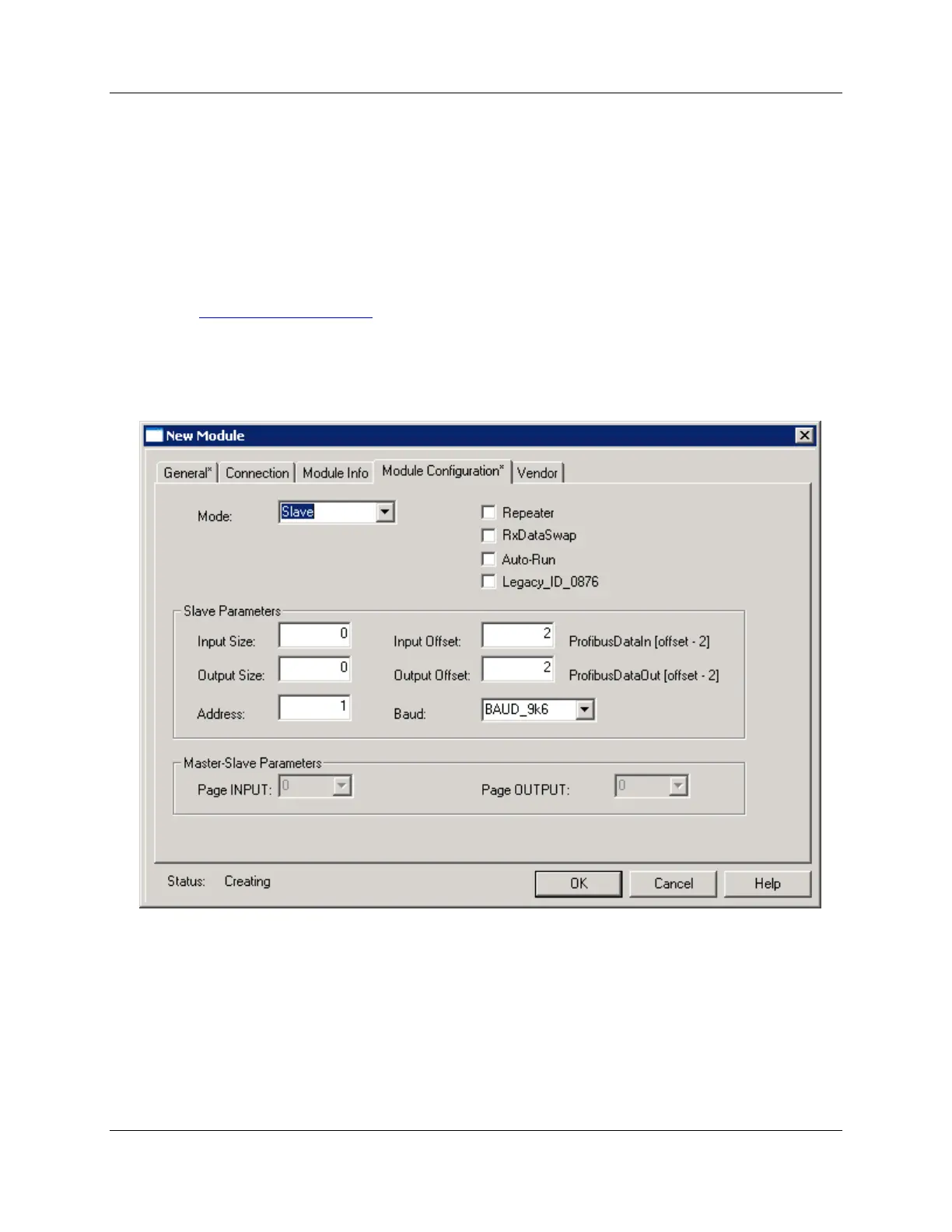

2. To configure the module as Slave only, Click on the Module Configuration tab and configure
the following parameters:
Mode: Select Slave.
Repeater: This option does not apply and can be left unchecked.
RxDataSwap: Set this if you want to swap the data coming from the master (Slave Rx data).
Auto-Run: Enable Auto-Run if you want the SST-PB3S-CLX-RLL to come online
automatically and enter the mode the CLX CPU is in. If enabling Auto-Run and the SST-
To Next Page
