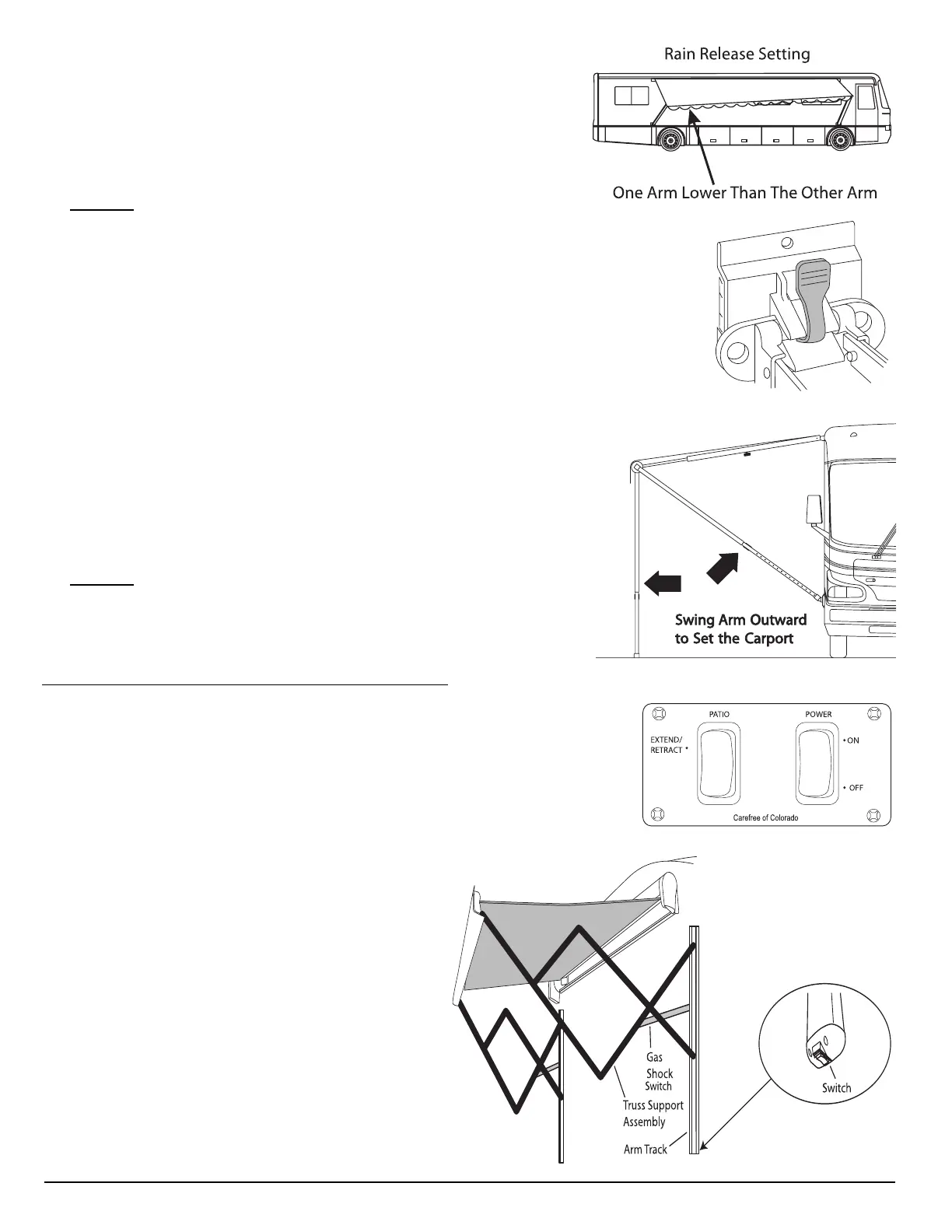

Rain Release Setting:
After the awning has been extended, choose the rain release
position to prevent water build up on the awning. To position the
awning in the rain release setting, lower one arm of the awning
and leave the other arm in the normal position. This will create
enough of a slope for adequate water run off.
NOTE:
Water weighs 8.33 lbs. per gallon. The awning was not designed
to withstand the 500 to 700 lbs. of water that could accumulate.
It is best not to subject the awning and the motorhome to the
needless strain.
Using the Carport Feature (N/A on Carefree One-Touch Awnings):
1. Unlock and extend the awning as described under “To Unlock the Patio
Awning” and “To Extend the Patio Awning.”
2. Unlatch the bottom of the rear arm by pushing in on the lock handle
on the arm bracket. Swing the arm away from the motorhome to an
upright position.
3. Drive the stakes through the bottom holes in the arm.
4. Raise the rear arm extension lock handle all the way up or to the
desired height and lower the lock handle to lock the arms in place.
5. Repeat instructions 2 through 4 for the front arm.
NOTE:
To move the awning out of the carport position reverse the
above steps.
Patio Awning (Optional)
The Eclipse is a box awning that operates on 12 Volts DC by the push
of a button. The awning requires 10 feet of lateral side clearance.
To Operate Awning:
• Push and hold switch to extend the awning.
Release the switch at any time for partial
extension.
• Push and hold the switch to retract awning.
• The interior awning power switch needs to
be on to operate both interior and exterior
awning switches.
Troubleshooting:
• Ensure ignition is off.
• Check power at 15 Amp mini breaker in front
electrical bay on the roadside.
020031
030841d
130045
030851d
030581d
