Air Coil Mattress:

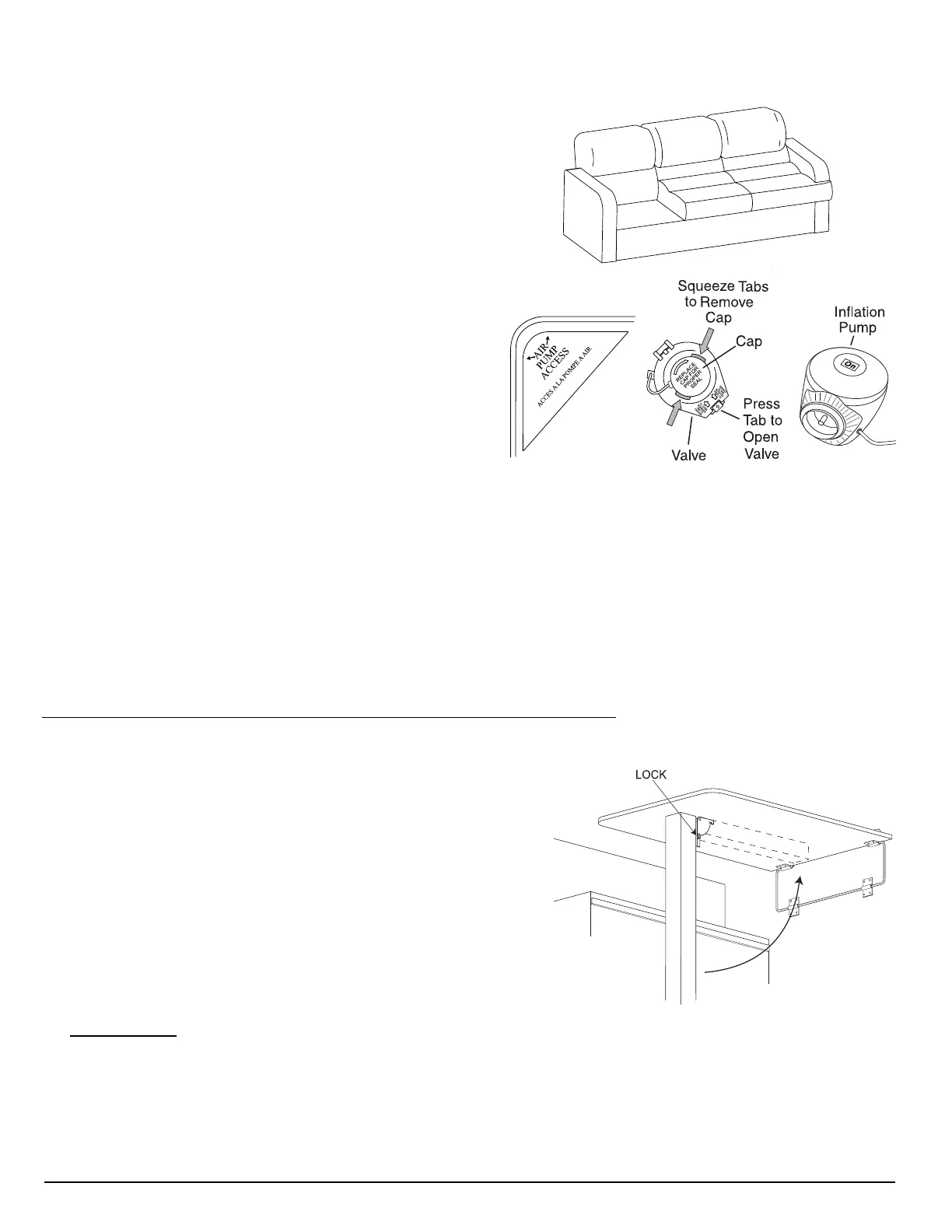

The Air Coil Mattress infl ates and defl ates in a matter of seconds. Use the hand-held electric pump to infl ate
the mattress. The pump operates from any 120 Volt AC outlet.
To Infl ate the Mattress:
1. Remove the seat cushions and store them.
2. Open the Convertible Sofa allowing the mattress to lie fl at.
3. Unzip the corner of the mattress labeled Air Valve Access to
access the valve.
4. Ensure the valve is locked fi rmly in place.
5. Open the cap on the valve.
6. Place the pump on the valve and turn ¼ turn
locking the pump in the valve.
7. Plug in the pump motor to infl ate to a desired
fi rmness.
8. Remove the handheld pump, replace the valve cap
and zip the mattress cover.
9. Place bedding items on the mattress.
To Defl ate the Mattress:
1. Remove bedding items.
2. Unzip the corner of the mattress where the air valve is located.
3. Lift the valve release.
4. Once defl ated, close the valve release, zip the mattress cover and close the convertible sofa.
Electric Bed:
The electric sofa sleeper bed uses 12 Volt DC to operate the slide mechanism.
DINETTE BED CONVERSION (Optional)
To Convert Booth Dinette into a Bed:
• Lift seat cushions to an angled vertical position.
• With a fi rm grip, lift front edge of the table
approximately six inches and push table leg lock to side.
• Swing the table leg up and lock into a horizontal
position.
• Continue lifting table until table stays are clear of
retainers. Pull outward and lower table down.
• Use both seat cushions and one back cushion for a
mattress. Leave one back cushion in a vertical position.
WARNING:
DO NOT occupy the booth dinette, if not equipped with safety belts, or dining chairs while
the motorhome is in motion. To avoid personal injury to occupants in case of an accident or
sudden stop, chairs must be stored in an enclosed area or secured with tie down straps while
the motorhome is in motion.
