202 • Section 8 — Electrical Systems - House Cayman 2006
LIGHTS
Interior Halogen
The bulbs inside the halogen lighting are replaceable.

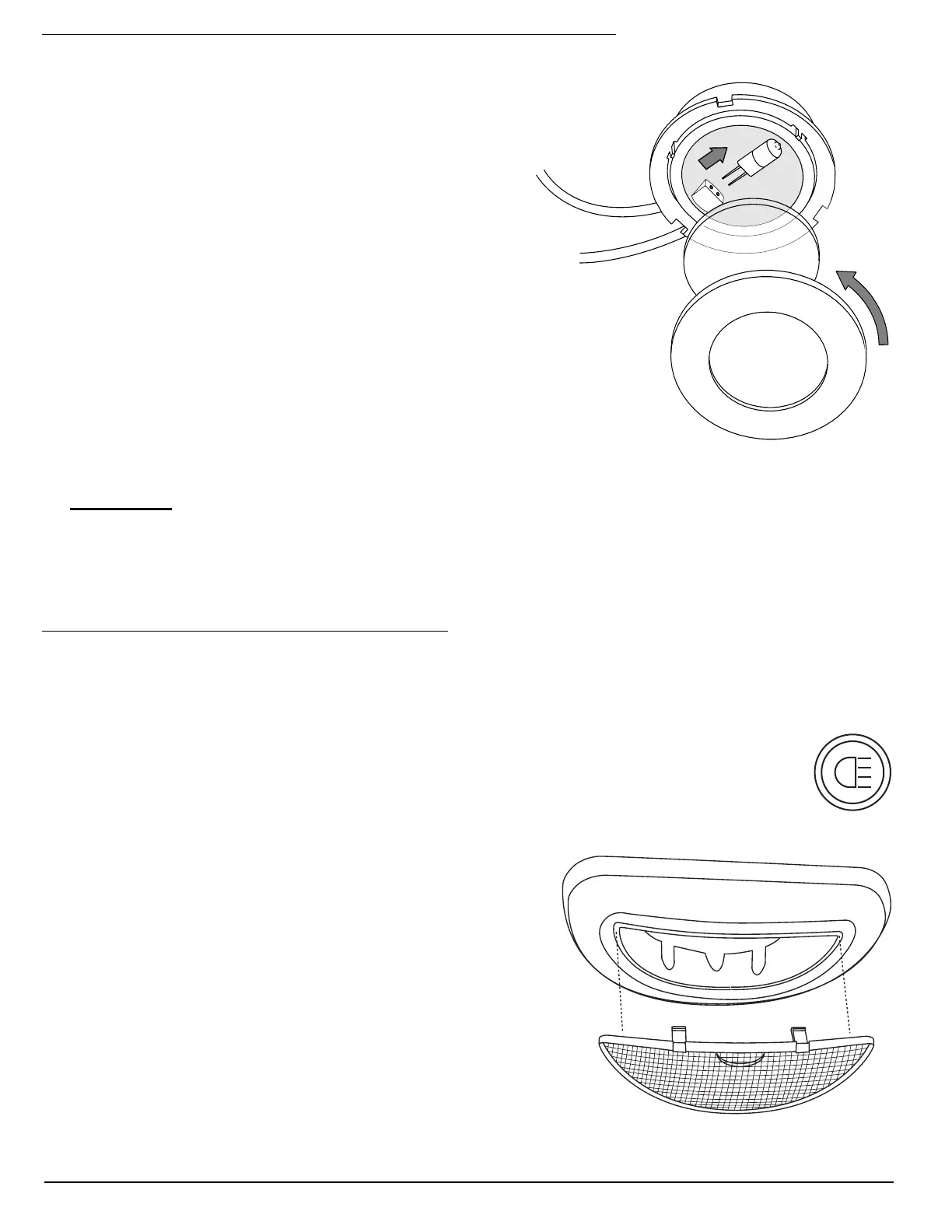

To Replace a Bulb:
1. Remove outer trim ring by rotating outer trim ring
counterclockwise.
2. Remove safety lens by pressing lens towards a retaining
tab. Pull lens down and away.
3. Carefully grasp and pull bulb from socket.
4. Use a clean cloth or piece of tissue to grasp new bulb.
DO NOT touch bulb directly as this can cause a “hot
spot” and may result in immediate bulb failure.
5. Align contacts of bulb with terminals in fi xture base.
Insert bulb until contacts are fi rmly seated.
6. Replace safety lens.
7. Align tabs in trim ring with slots in fi xture base. Rotate
lens clockwise until trim ring locks into place.
CAUTION:
DO NOT touch halogen lighting while on. They can cause a burn. Do not touch replacement
bulbs. Oil in the hands can cause a “hot-spot” to occur. If the bulb is touched, clean bulb
with alcohol.
Map Lights
The overhead map lights are powered by 12 Volts DC and require the battery cut-off switch at the entry door
to be turned on for power.
Overhead Lights:
Turn the headlight switch fully counterclockwise to turn the overhead map lights on. Swivel
the lens to direct lighting.
To Replace a Bulb:
1. Insert a small screwdriver into the slots on the map light
lens to release locking tabs.
2. Replace with a 12 Volt, type 906 bulb.
3. Install cover.
If Map Lights Fail to Operate:
• Ensure Battery Cut-off switch is turned on.
• Check fuses in front electrical bay on the roadside.
060200b
080332
080475
