Cayman 2006 Driving & Safety — Section 2 • 27

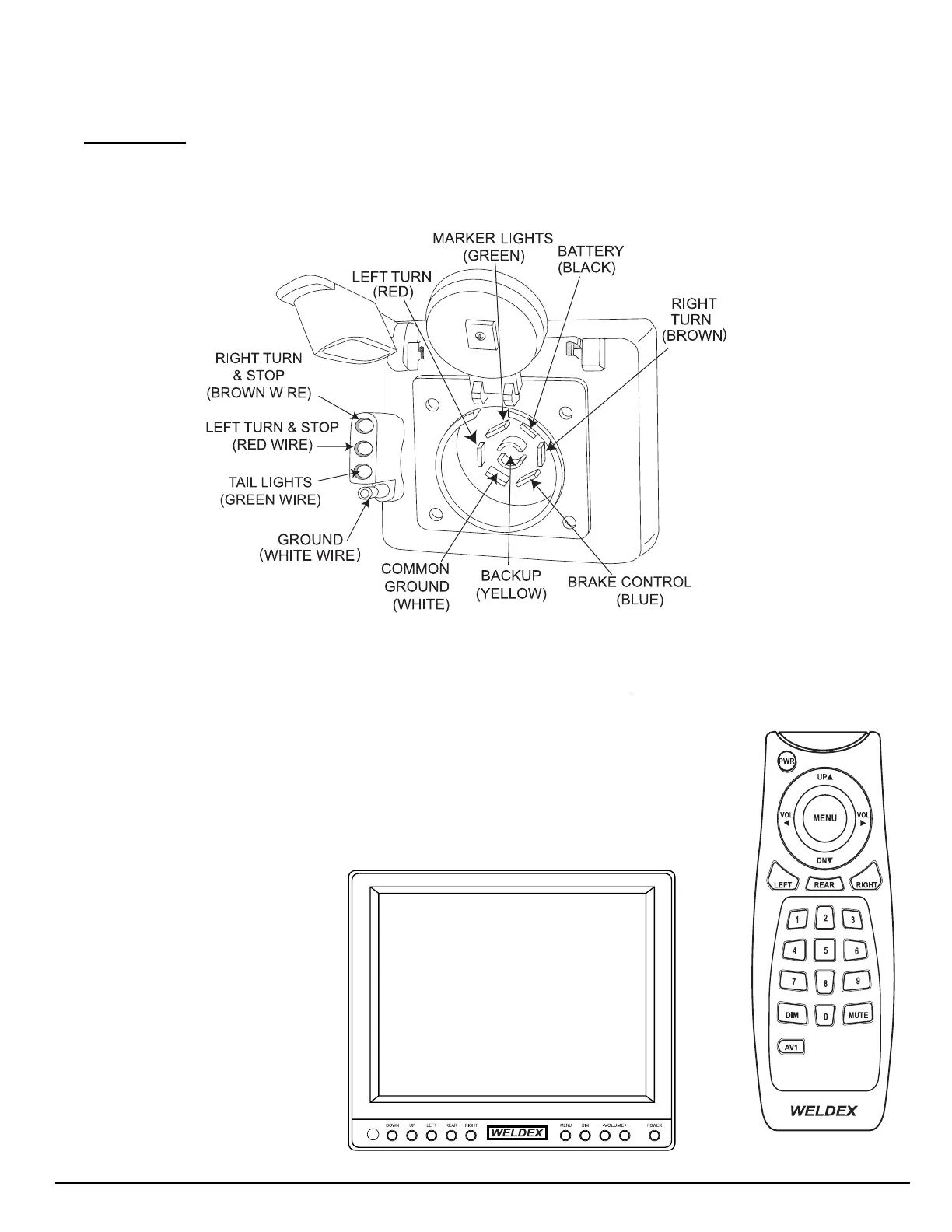

When preparing a tow plug connection strip the wires 3/8". Twist the wire strands and place under the clip and
secure the screw. Make sure there are no loose strands of wire that could short against the case or other terminals.
DO NOT accidentally mirror image the trailer connection.
CAUTION:
Positive terminal connection of the tow plug remains live at all times. When towing a trailer
equipped with a battery, unplug the electrical tow connection when parked. Failure to
unplug the tow connection may result in discharged chassis batteries.
REAR VIEW SYSTEM
The motorhome is equipped with a rear vision and voice system. The rear
vision system consists of an adjustable camera with a microphone and a dash
mounted monitor. This allows the driver to see what is behind the motorhome
and listen to verbal guidance. The system remote control can perform all the
operations available on the monitor panel.
080462f
031204b
031204
