274 • Section 10 — Chassis Information Cayman 2006

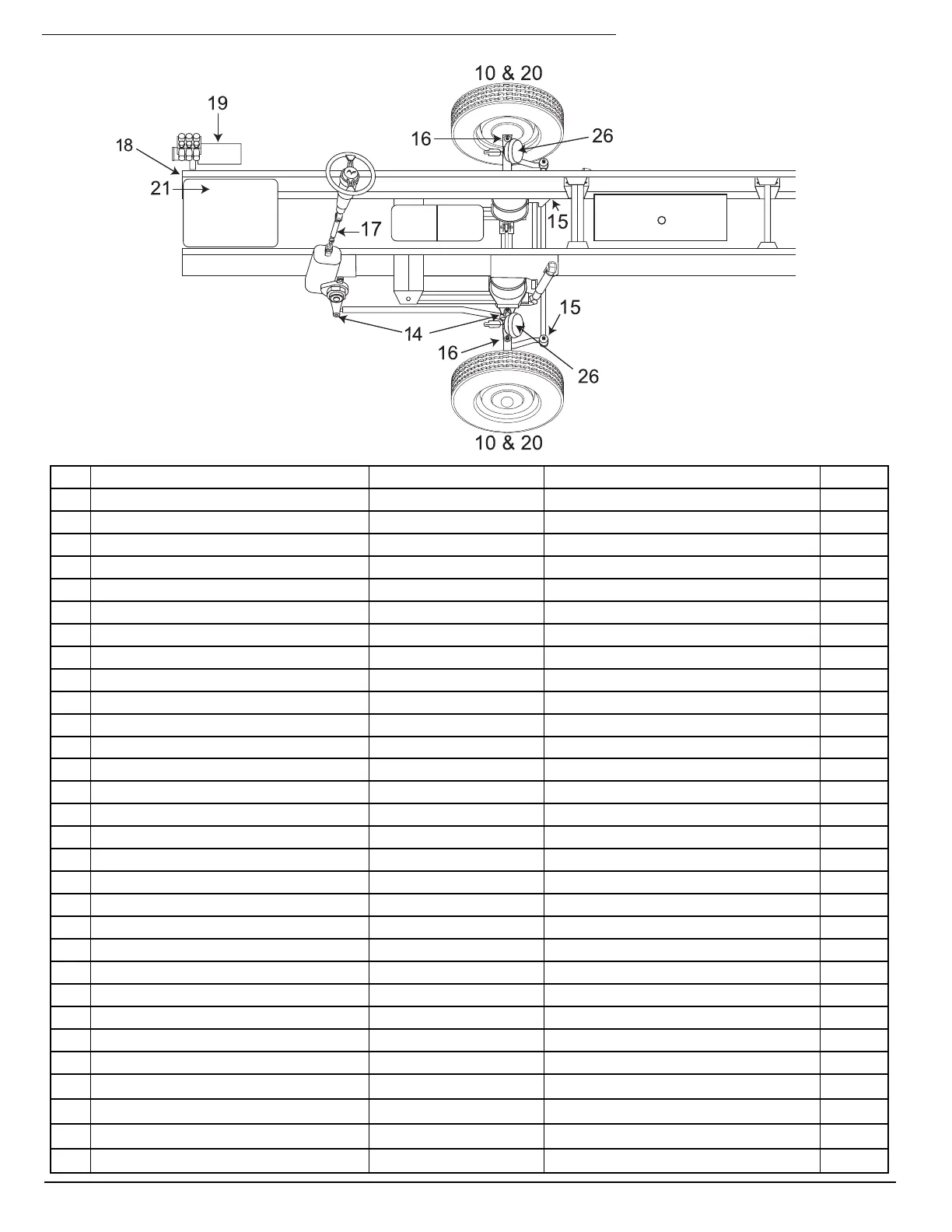

LUBRICATION CHARTS
070166h
Component: Action: When: Code
1. Engine Oil Dipstick Keep to Full Mark Before Each Trip + Daily Enroute EO
1 a. Engine Oil Fill Drain Refer to OEM Manual OEM
2. Engine Oil Filter Replace At Oil Change OEM
3. Transmission Dipstick Keep to Full Mark Refer to OEM Manual TS
3a. Transmission Drain Refer to OEM Manual OEM
Transmission Filter Replace Refer to OEM Manual TS
4. Engine Coolant Surge Tank Maintain Level Before Each Trip + Daily Enroute AF
5. Hydraulic Fluid Reservoir Maintain Level Before Each Trip + Daily Enroute TF
6. Hydraulic Filter Replace 15,000 or Annually TF
7a. Filter Fuel/Water Separator (Primary) Inspect/Replace Before Each Trip/15,000 or 6 Months FF
8. Filter Fuel (Secondary) Replace Refer to OEM Manual FF
9. Radiator/Charge Air Cooler Inspect Weekly OEM
10. Axle Hubs Inspect Level/Replace 1,000/30,000 or Annually GO
11. Rear Differential Change Fluid 250,000 or 3 Years MP
12. Drive Shaft Universal Joints Grease-2 Fittings 5,000 or 6 Months CL
13. Drive Shaft Slip Yoke Grease-1 Fitting 5,000 or 6 Months CL
14. Drag Link Grease-2 Fittings 5,000 or 6 Months CL
15. Center Link Grease-2 Fittings 5,000 or 6 Months CL
16. Spindles/Kingpins Grease-2 Fittings ea. 5,000 or 6 Months CL
17. Steering Intermediate Shaft Grease-3 Fittings 30,000 or Annually CL
18. Air Tank Drains Drains Monthly -
19. Leveler Reservoir Keep to Full Mark 6,000 or 3 Months TF
20. Tire Pressure Check Before Each Trip + Daily En route -
21. Generator Refer to OEM Manual Refer to OEM Manual OEM
22. Batteries Inspect Every 2 Weeks DW
Battery Terminals Apply Coating 10,000 or Quarterly P
23. Air Filter Minder Inspect Before Each Trip + Daily En route
--
24. Axle Breather Vent Inspect & Clean 250,000 or 3 Years
--
25. Transmission Remote Fill --
-- --
26. Slack Adjuster/Cam Shaft Grease-2 Fittings ea. 10,000 or 3 Months
CL
