PC SOFTWARE – MONI LOG® ANALYZER EnDaL smart
- 26 -

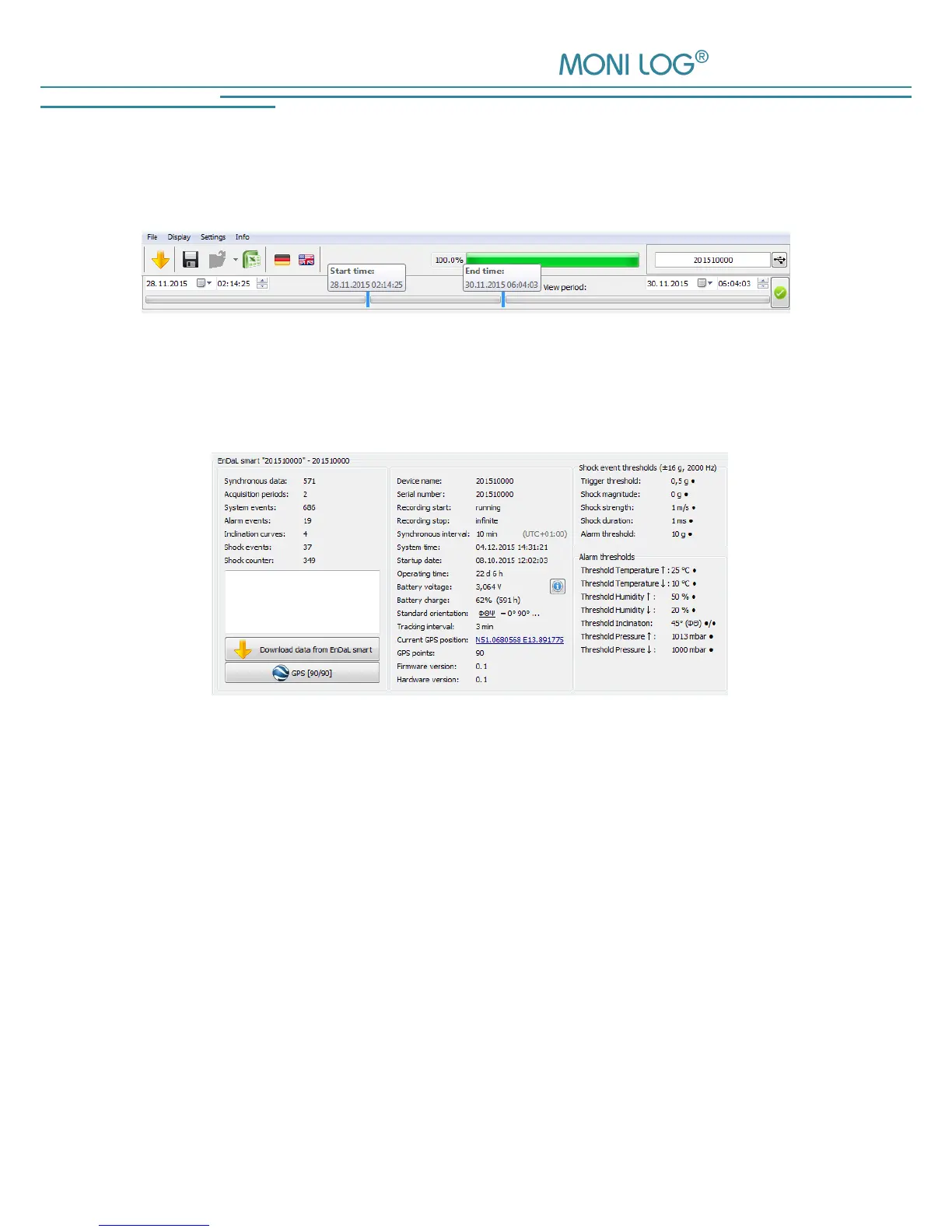

Furthermore, the view period can be adjusted via the slide bar; by moving the blue bars
with the mouse (see Figure 11).
Figure 11: Slide bar for view period
4 . 3 . 3 S t a t u s a n d t h r e s h o l d s
Figure 12: Status and set configuration of a sensor module
Status data:
Intervals: number of synchronous records
logging periods: number of the started active periods
System events: number of the recorded events for the extended diagnosis
Alarm events: number of the events with exceedance of alarm thresholds (shock,
inclination, temperature, humidity or/and pressure)
Inclination curves: number of the inclination curves due to the exceedance of threshold
for inclination events
Shock events: recorded shock curves due to the exceedance of the recording
threshold for shock events
