finally detected. Though the 3
rd
pulse shows the highest maximum amplitude, the 2
nd
pulse is the
greatest with respect to the shock strength and is used here for the shock evaluation.

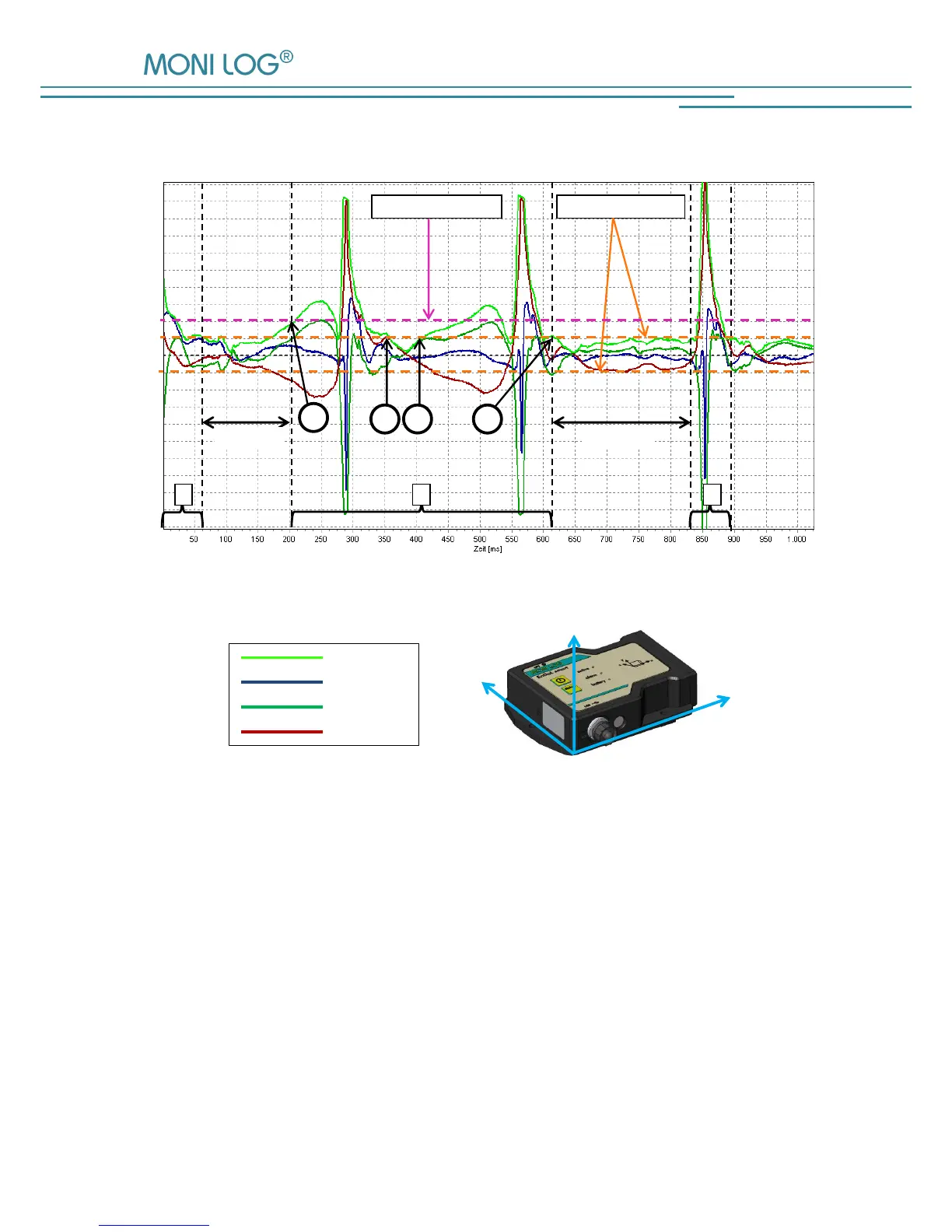

Figure 24: Shock curve with 3 single pulses
Area: ± 200 mg
1.
2.
3.
Triggering threshold
> 100 ms
> 200 ms
4
4
3
4
2
4
1
4
1
2
3
y
z
x
magnitude
x-axis
y-axis
z-axis
Figure 25: EnDaL smart main axes for acceleration/inclination
