Morbark BEEVER M15R - PTO Left View

BEEVER M15R PTO
3.50 76347-281 • 12-08
Chipper belt guard
bo
Infeed chain
bp
bq
br
bs
bt
ck
bn
11. Drum locking pin: Prevents chipper drum from turning when performing
knife maintenance. This is a critical safety lockout feature.
12. Yoke locking pin: Prevents accidental lowering of the top feed wheel when
performing maintenance. This is a critical safety lockout feature.
13. Adjustable deflect: Easily adjusts discharge deflect to 4 locking positions.
14. Deflect handle: Changes the angle of the adjustable deflect.
15. Discharge chute: Used to change the direction of the discharge. Capable of
360º rotation.
16. Chipper belt guard: Protects the operator during operation of the
machine. The guard must be attached during operation.
17. Top feed wheel chain guard: Protects the operator during operation of
the machine against entanglements with feed wheel chain.
18. Manual holder:Storage compartment for product manuals.
19. Infeed chain: Holds the infeed tray in a level operating position when
folded down.
20. Bottom feed wheel hydraulic motor: Provides power to the bottom
feed wheel.
Adjustable
deflect
Deflect
handle
Discharge
chute
Manual holder
Feed wheel
chain guard
Bottom feed wheel
hydraulic motor

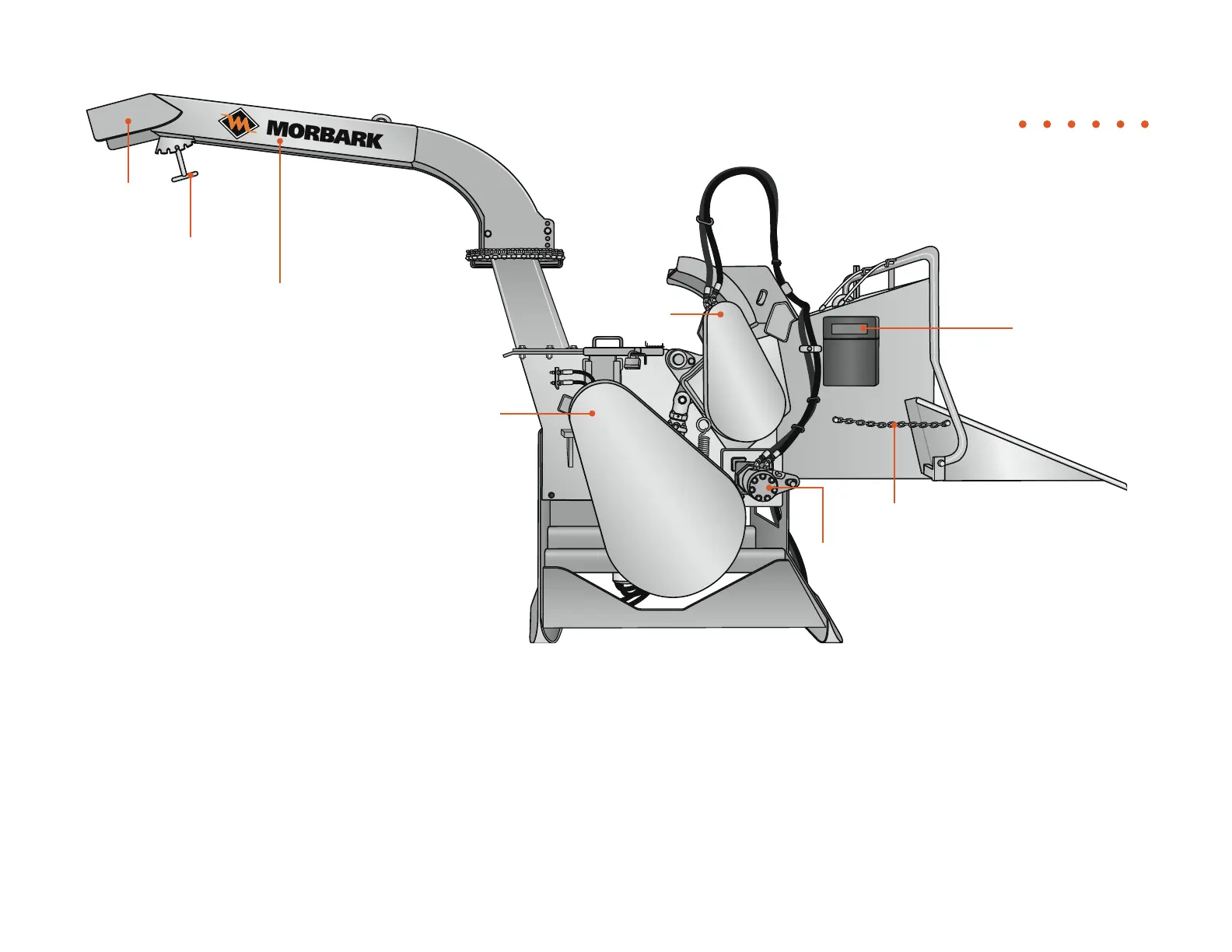

PTO Left View
Figure 3.30
Front and back view continued on next page
Features and Function • The Basics, PTO
