Morbark BEEVER M15R - Discharge Chute Options

3.28 76347-281 • 12-08
4

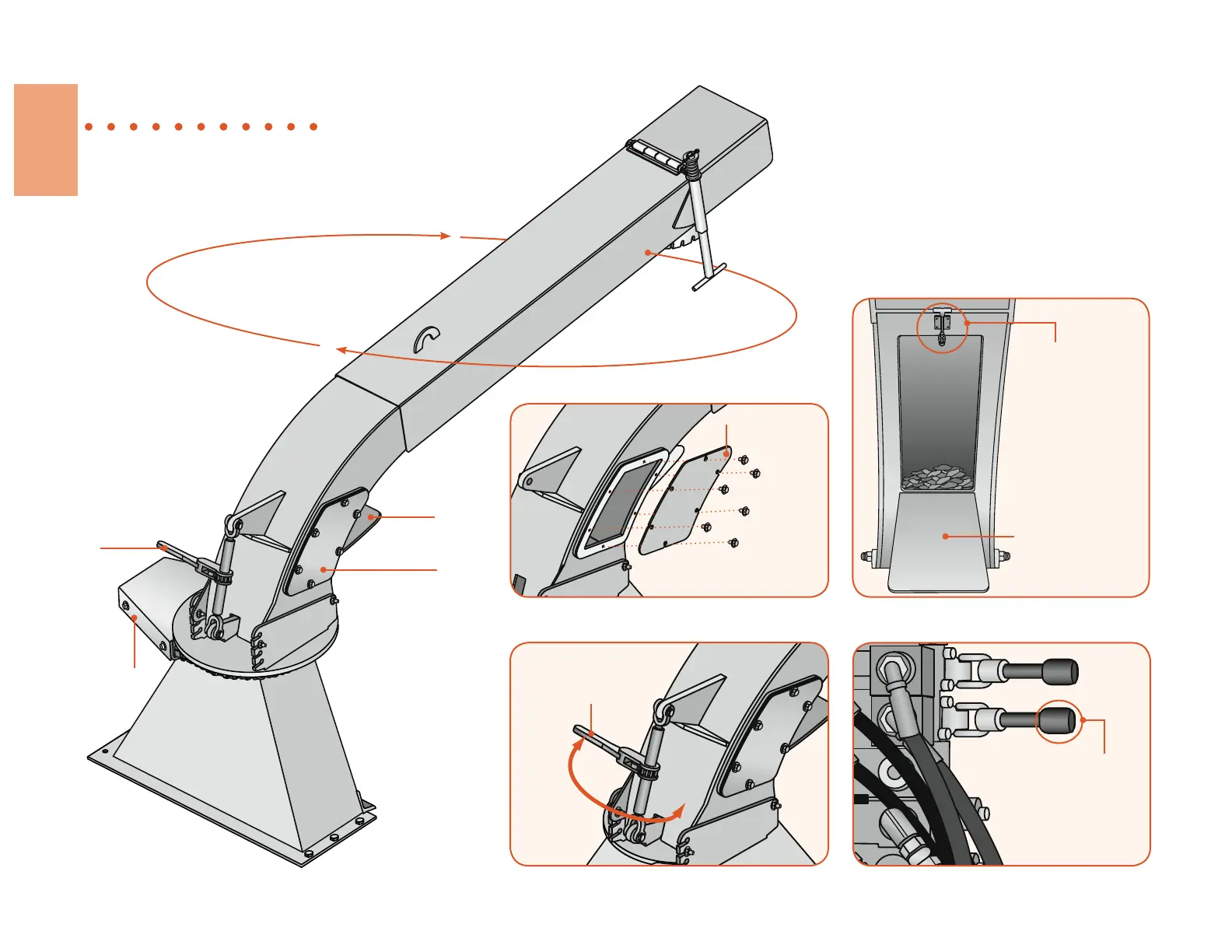

Discharge Chute Options
3
Height adjustor
2
Bottom clean-out
1 Side clean-out
4 Hydraulic swivel
3
To release the
toggle clamp and
open the front
panel, move the
handle down
To operate the
Hydraulic Swivel, see
decal next to the valve
handle for operating
instructions
Bottom clean-
out cover
To adjust the
height, crank the
turnbuckle
Unscrew the bolts and
remove the cover.
1
2
Discharge chute will rotate a complete 360º
Side clean-out
cover
Figure 3.14
