Morbark BEEVER M15R - PTO Front and Back View

BEEVER M15R PTO
76347-281 • 12-08 3.51
PTO Front and Back View
Figure 3.31
Safety control bar
cm
Safety cables
Hydraulic oil
gauges and
filler cap
cn
co
Infeed tray lynch pins
cl

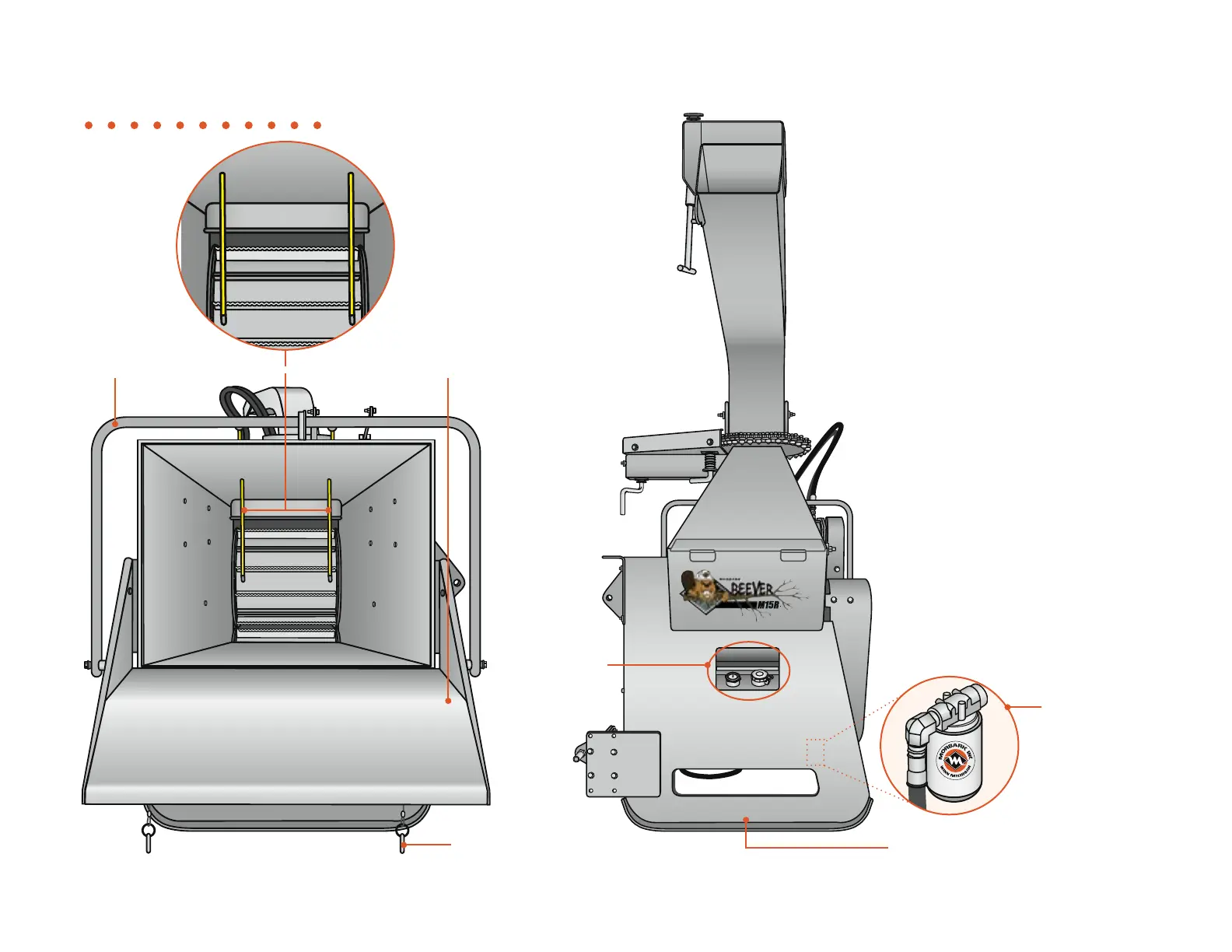

21. Safety control bar: Controls
forward, stop, and reverse action of
the feed wheels.
22. Safety cables: Reverses the feed
wheels when the cables are pulled.
Important safety feature.
23. Folding infeed tray: Allows
unrestricted flow of material and
keeps operator away from feed
wheels.
24. Infeed lynch pins: Secures the
infeed tray in place when folded up.
25. Hydraulic oil gauge and
filler cap: The oil sight gauge
indicates the level of fluid. The
filler cap is where the hydraulic
oil is added.
26. Sled-style base: Solid, heavy
base stabilizes the machine.
27. Hydraulic oil filter: Helps
keep oil clean.
Folding infeed tray
cp
cq
,
,
®
Hydraulic oil
filter (behind
base)
cr
Sled-style base
Features and Function • The Basics PTO
