5
Insert
hitch clip
1.12 76347-282 • 12- 08

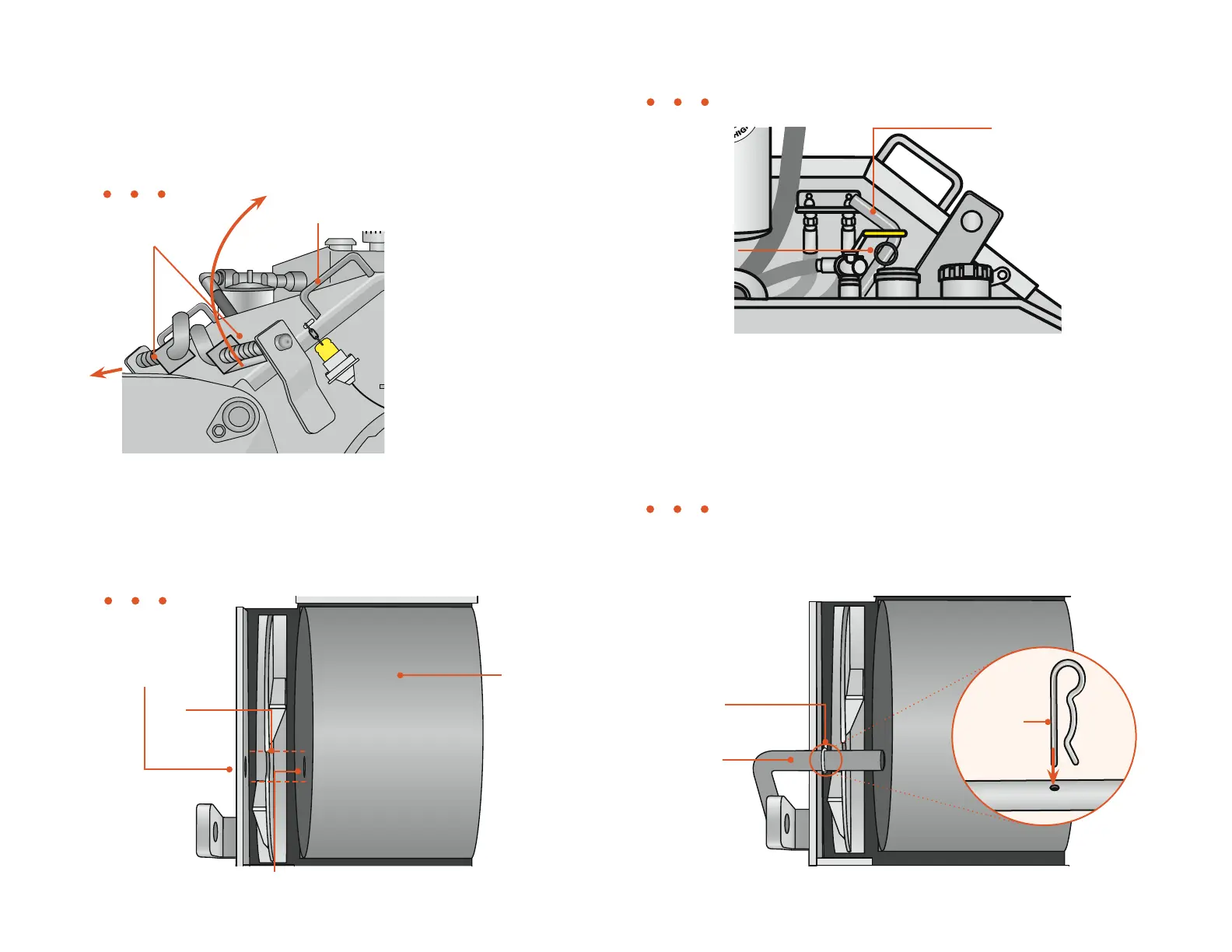

To Lockout the drum:
1. Slide back the hood locking pins that holds the drum hood down. Lift
the drum hood open.
2. Turn the drum manually until the slot in the wheel is aligned with
the holes on the side of the drum base.
3. Remove the drum locking pin from it’s holder located near the tanks.
4. Insert the drum locking pin through the holes in the drum base and
slot on the wheel.
5. Insert the hitch clip through the drum locking pin.
Hood locking pin
Slot in drum wheel
Holes in drum base
2
6. Check that the drum locking pin is securely in place by pulling on the
handle of the drum locking pin and attempt to remove it. Maintenance
on the drum may begin after the machine is locked out and the locking
pin is securely in place.
7. Ensure the hood is closed and hood locking pin in place before
operating the machine.
Drum locking
pin holder
Drum locking pin
4
Figure 1.10
Figure 1.11
Figure 1.12
Figure 1.13
Drum hood
Carefully turn
the drum to
manually align
the slots
Safety • Lockout Procedure
