3.41
76347-282 • 12- 08
Features and Function • Components Remote , Option
GRAPPLE OPEN WINCH OUT WINCH IN GRAPPLE CLOSE
SWING/JIB BOOM
SWING CONTROL
POWER
YOKE UP
THROTTLE DOWN
THROTTLE UP
DSCHG RT
FEED FWD
FEED REVERSE
DSCHG LTYOKE DOWN
FEED STOP
FEED STOP
LEFT RIGHT
IN
OUT
MAIN BOOM/ROTATE
RIGHT
CW
LEFT
CCW
UP
DOWN
EMER STOP
60%
40%
80%
100%
20%
STATUS
Safety
Remote Control For Loader
Function
The remote control is used to operate the loader, discharge, feed options,
and winch.
NOTE: When operating the winch with the remote, you disable the
loader functions.
NOTE: You must have your control handle in neutral positon to have full
winch pulling power.
The remote has an operating distance of approximately 550 feet (167
meters).
Use
Each control switch has a description of its function. Only trained
operators should operate machine at first.
To operate the machine use remote controls as indicated on remote.
NOTE: The remote tether has the exact same functions.
Maintenance
When batteries wear out, replace with four AA batteries.
WARNING
When using the remote control always pay complete
attention to this machine. Make sure there are no
bystanders that could be put in danger.
Never leave the machine unattended while the
machine is running.

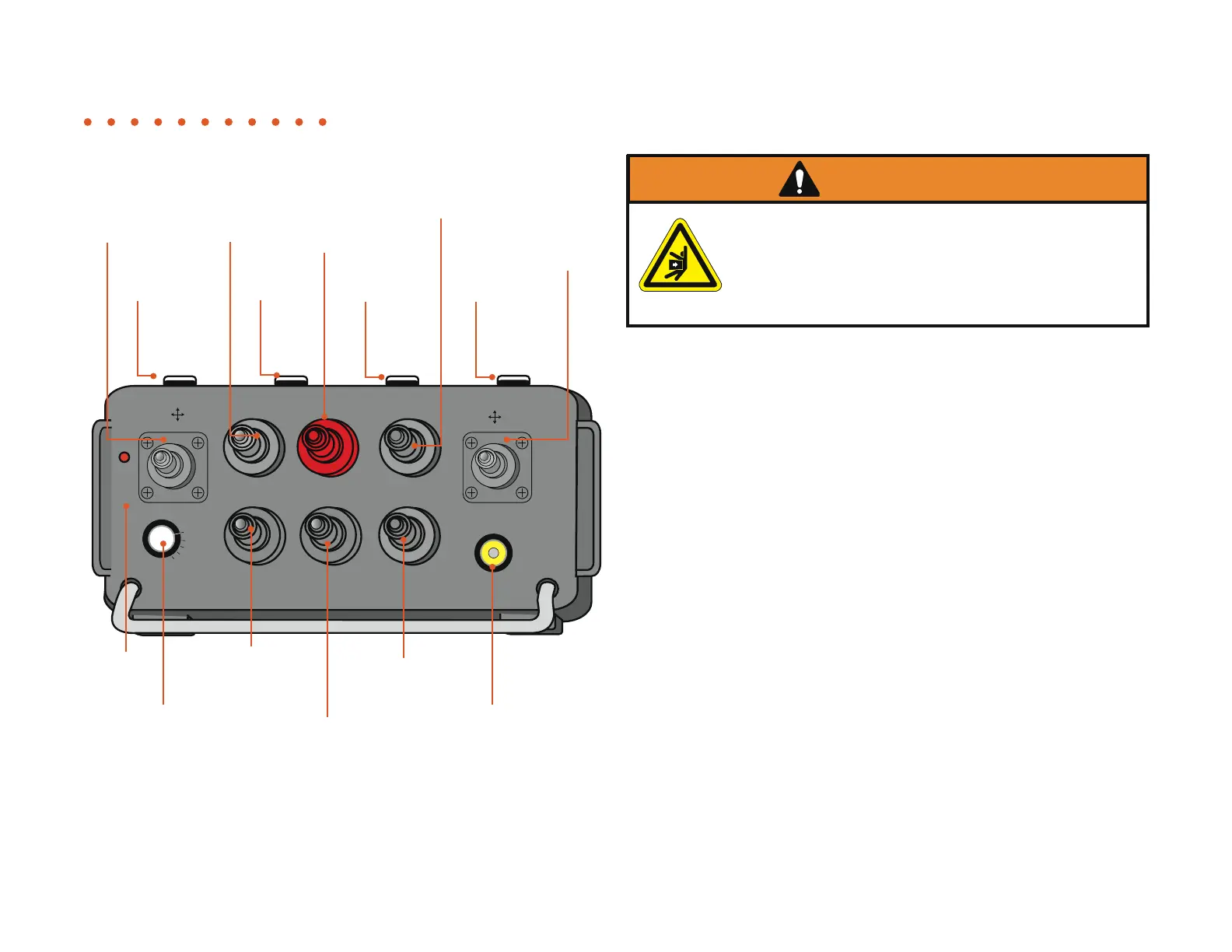

Figure 3.25
Operates the loader
swing and jib boom as
indicated on diagram
Operates the discharge
right to left
Operates the grapple
rotate and main boom as
indicated on diagram
Operates
yoke up and
down
Opens grapple
Feeds winch
line out
Feeds winch
line in Closes grapple
Shuts down
engine
Increases or
decreases the
engine RPM’s
Turns off the
remote
Operates the
feedwheels
forward or
reverse
Shows status of
remote
batteries
Controls how
fast the loader
will swing
Stops the
feedwheels
