1.11
76347-282 • 12- 08
Safety Lockout Instructions:
To Lockout the Yoke:
1. Remove the yoke locking pin from its holder.
2. Raise the yoke past the hole for the locking pin by moving the yoke
valve lever in the direction indicated by the decal next to your valve
bank.
3. Insert it all the way through the yoke locking pin holes on both sides
of the machines infeed housing.
4. Insert the hitch clip into the hole at the end of the yoke locking pin.
5. Check that the hitch clip is securely in place by pulling on the handle
of the yoke locking pin, and attempt to remove it. Maintenance on the
feed wheel area may begin after the machine is locked out and the
yoke locking pin is securely in place.

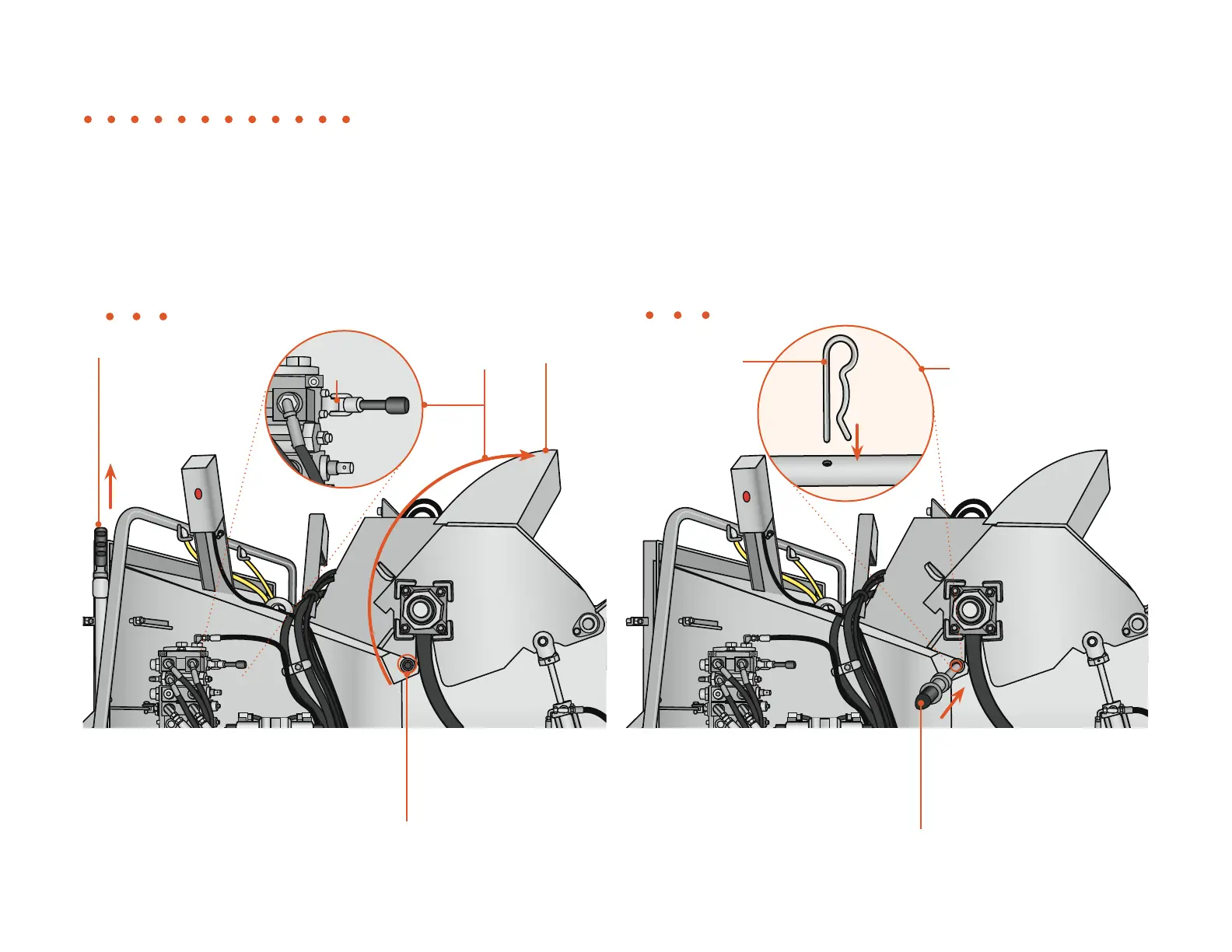

Yoke locking pin
2
Yoke locking
pin hole
3
Yoke locking pin goes
through the infeed housing
and is locked into place by
a hitch clip on the opposite
side of the machine
Figure 1.8 Figure 1.9
1
Hitch clip
4
Yoke
Yoke valve
lever
Safety • Lockout Procedure
