3.39
76347-282 • 12- 08
Remote
Transmitter
SPOUT RIGHT
SPOUT LEFT
FEED FORWARD
FEED REVERSE
LEFT STAB. UP STATUS
AUX #2
TWIST TO RESET
AUX #1
ENGINE STOP
RIGHT STAB. UP
FEED STOP
FEED STOP
YOKE UP
YOKE DOWNRIGHT STAB. DOWNLEFT STAB. DOWN
THROTTLE UP
THROTTLE DOWN
Safety

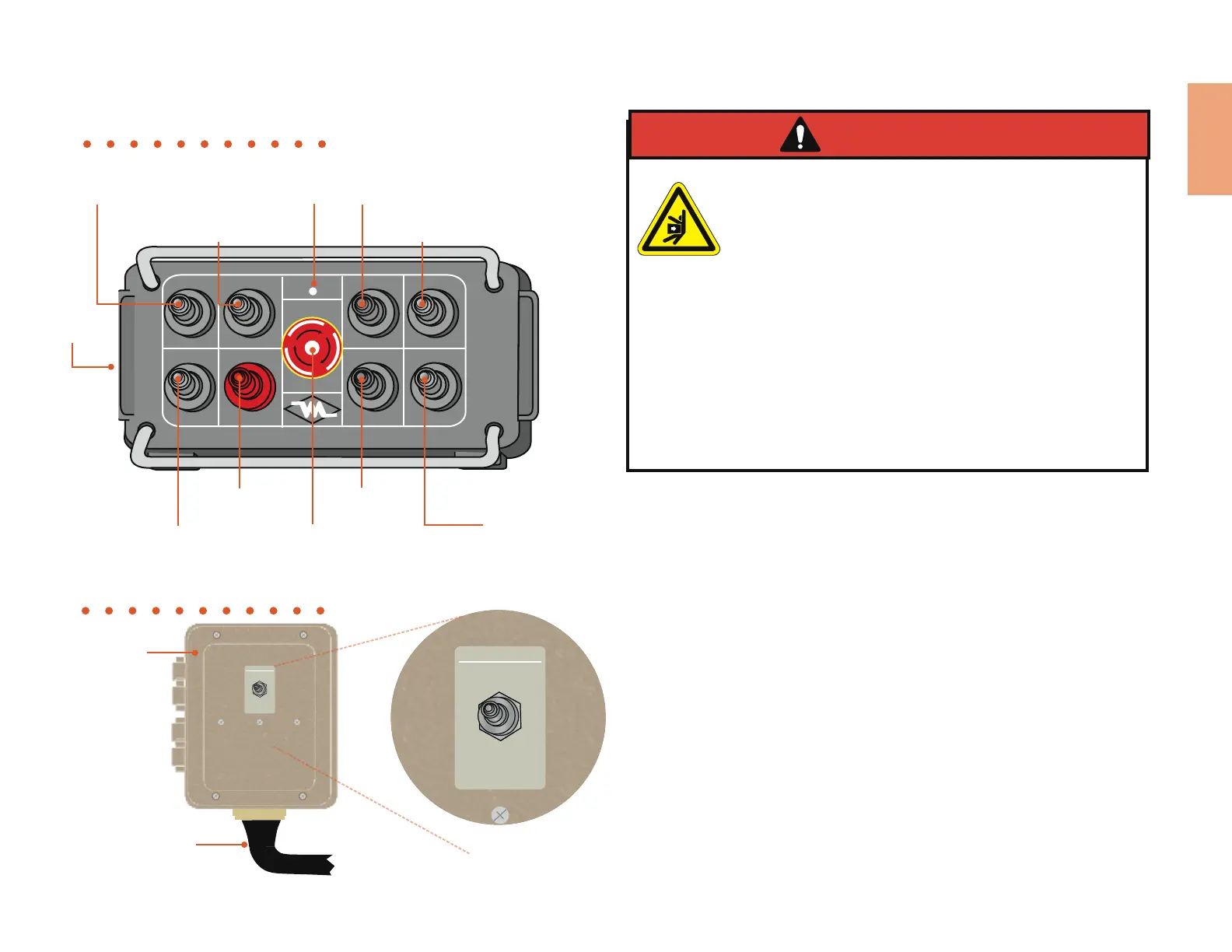

Figure 3.22
Figure 3.23
Raises and lowers the
yoke
Raises and lowers
the left stabilizer
Raises and lowers the right
stabilizer
Directs the flow of chips
to the right or left
Status Light
Transmitter
Increases or
decreases the
engine RPM’s
Operates the feedwheels
forward or reverse, push
toggle up to activate the
actuator bar
Shuts down the engine, twist in the
direction of the arrows to reset
NOTE: You will run the batteries
down if you do not reset the switch.
Stops the
feedwheels
This switch is
inactive
Function
The remote control can be used in place of the valve bank controls to
operate the discharge spout, stabilizers, yoke, feedwheels, and throttle.
The switch on the receiver box can be switched to either remote or
manual settings. The remotes operating distance varies with
surroundings. During operation, switching between the remote and
manual controls can be done.
NOTE: The options of your machine may use all or only certain functions.
Use
To use the remote, the macine harness must be plugged into receiver box
(mounted on the machine) and the toggle switch must be in the remote
position.
Each toggle switch has a description of its function. The four switches in
the top row control the discharge spout, left and right stabilizers, and
yoke. The four switches on the bottom row control the feedwheels,
feedwheel stop, engine stop, and throttle.
Maintenance
Remote should be turned off when not in use. Do not store remote in
direct sunlight or wet areas. Handle remote with care. Do not drop,
throw, or subject to severe physical shock.
DANGER
You must start machine and engage the feedwheels in
reverse, hit your reverse toggle on your remote to ensure
the feedwheels come to a stop. (If they fail to stop, shut
down machine and contact your dealer). Refer to decal
on your machine.
Stray radio signals, high voltage power lines, and other
forms of interference may cause the remote control to
stop working or work erratically. Always stay within
working radius and always point remote toward receiver.
If the status light is a steady or blinking red this indicates
the batteries are low and must be replaced before
machine operation can continue. If the status light turns
red while operating, safely stop all machine operations
and replace the batteries.
MODE SWITCH
REMOTE
MANUAL
Receiver Box
(mounted to
machine)
Machine Harness
Features and Function • Components • Remote Option
Remote Control, Options
