Morbark BEEVER M18R - Page 93

4.19
76347-282 • 12- 08
Shaft Diameter
Reduction in Internal
Clearance
2-7/16, 2-1/2, 2-11/16, 2-3/4 .0015/.0020
Figure 4.20
Table 4.5 • Internal Clearance Reduction

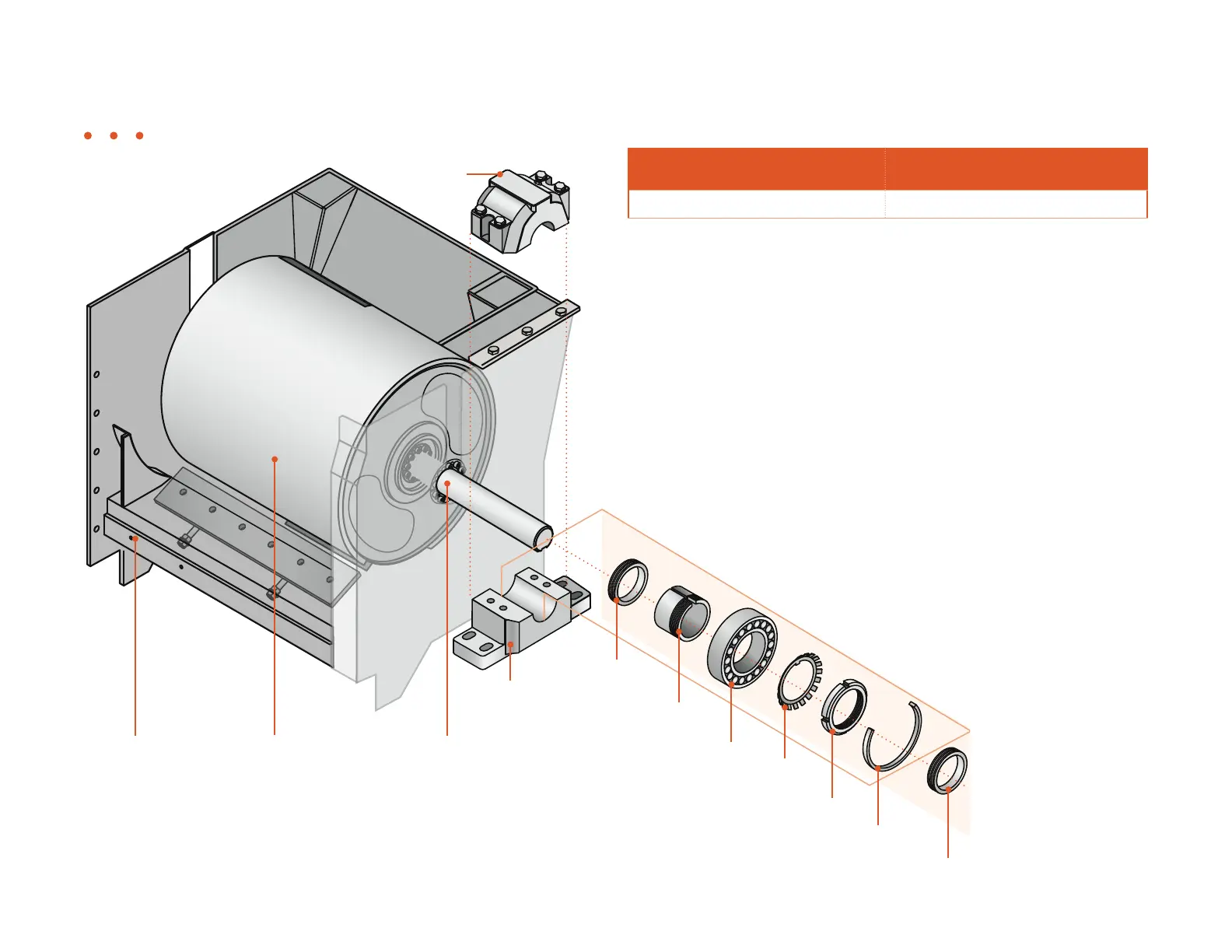

Inner grease
slinger ring
Tapered
sleeve
Bearing
Tabbed
washer
Nut
Expansion Ring
Outer grease
slinger ring
Bottom bearing
housing
Chipper drum
shaft
Top bearing
housing
Chipper drum Chipper drum
housing
General Maintenance • Chipper Flange Bearing
