ENGLISH
A
B
1/3
MAX
MIN
4 cm
Fig. 8 Fig. 9
10° ÷ 15° max
Fig. 7
Pressurize the hydraulic system, make sure that there are
no leaks and that the connections have been correctly made.
Leaking fluid (hydraulic oil) at high pressure can penetrate
under the skin and cause serious damage.
If this should happen, immediately seek medical assistance
in order to prevent the risk of serious infection.
WARNING
The hydraulic cylinder is supplied without hydraulic oil.
Fill the entire circuit with oil and carry out at least two
manoeuvres fully to the right-fully to the left to make
sure that the system has been connected correctly.
As soon as the mowing operations have terminated, the
hydraulic pipes released from the tractor must be fixed in
the supports provided for this purpose (5 fig. 1).

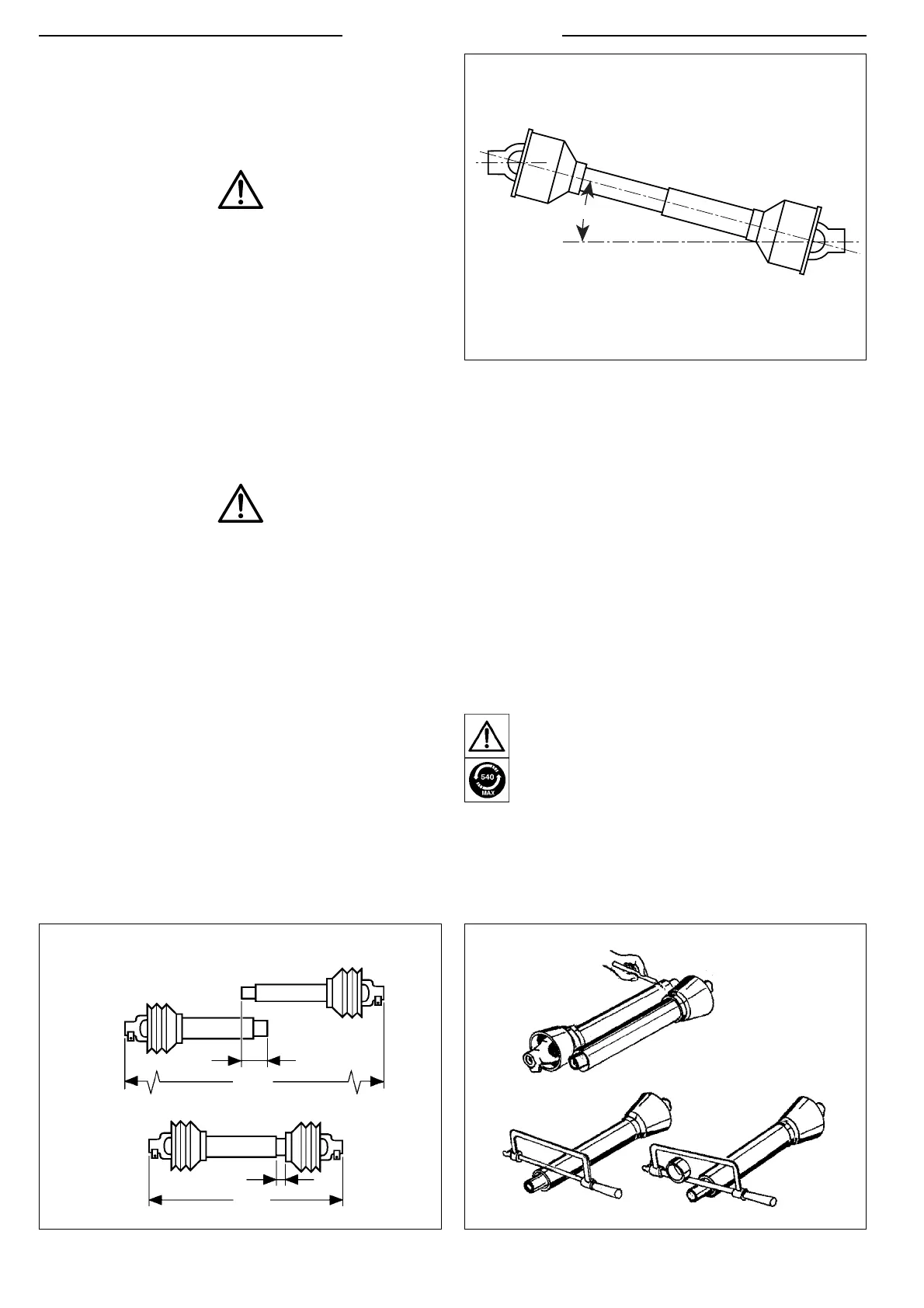

3.2.2 DRIVELINE ASSEMBLY
The telescopic driveline can be supplied by the Manufacturer
along with the machine, depending on the technical matters
established at the time of order.
DANGER
The driveline is a mechanical component that can injure
persons that get too near to it whilst it is operating.
Take great care when working with this component.
Carefully read the driveline Operation and Maintenance
Manual before using this component.
- After the machine has been connected to the tractor,
connect the driveline to the tractors PTO (this must be done
with the engine off and the ignition key removed from the
dashboard).
- If the driveline supplied with the machine is not used, make
sure that the shields of the machine and tractor overlap
the driveline guard by at least the distance established
by the current laws in merit (5 cm / 2 inches).
- Clean and lubricate the power take-off.
- Periodically grease the driveline as indicated by the
manufacturer (see the driveline Operation and Maintenance
Manual).
- Bear in mind the direction in which the driveline is mounted.
Comply with the assembly direction prescribed by the
manufacturer and indicated on the outer covering of the
shield (tractor symbol on the external tube of the driveline
towards the PTO of the tractor itself).
- Connect the anti-rotation chains to the machine and tractor
to prevent the shields from turning with the driveline.
- Make sure that the safety lock that prevents the driveline
from extending (button, ring nut, etc.) is correctly inserted
and locked in its housing.
CAUTION
Make sure that the PTO speed setting is 540 rpm
since the machine is designed to operate at this
speed.
Only use drivelines with CE marking to ensure that the
machine is used correctly and safely.
Only use drivelines with undamaged shields.
