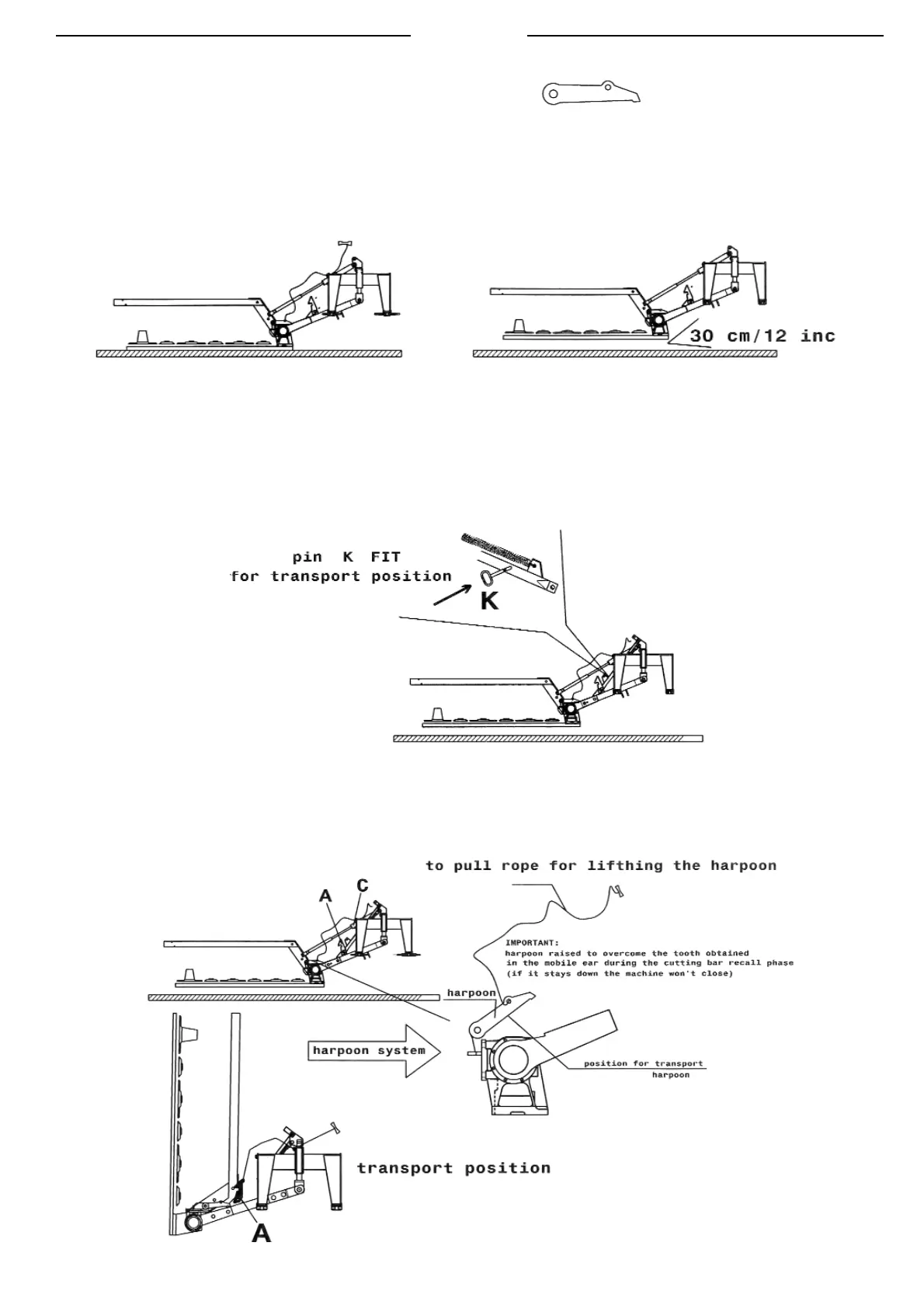

3.3.1 bis TRANSPORT POSITION
- stop the engine and remove the ignition kei. Disengage the PTO.
- get off the tractor and wait until all moving parts have come to a complete stop.
- fold the front part of the protective cover upward.
- fit pin K into the crossbar return (remember to remove it when the machine is required of work).
Comply with the following procedure to adapt the machine to the transport position beginning the work position.
WARNING! make sure that there are not bystandes whithin the range action off the bar.
- raise the machine from the ground with the tractor’s hydraulic power lift (30 cm 12 inch)
- get back on the tractor, LIFTHING THE HARPOON (to pull a rope of harpoon). With harpoon lift close the mowing bar
by operating the tractor’s valve system, then hydraulic closing cylinder C until safety clip A has fastened.
