1.3. bis ROTARY MOWER DMD
with poissibility of raising at the end of the field whit
hydraulic cylinder (whith special harpoon).
These pages are an integration of the «Operating and maintenance manual» of the disc mower listed in paragraph 1.1
of this manual.
Starting from serial mumber 191100 the possibility of raising the cutting bar at the headland using the hydraulic cylinder
of the machine which is controlled by the distributor placed on the tractors as an alternative to the use of the hydraulic
lift been introduced.

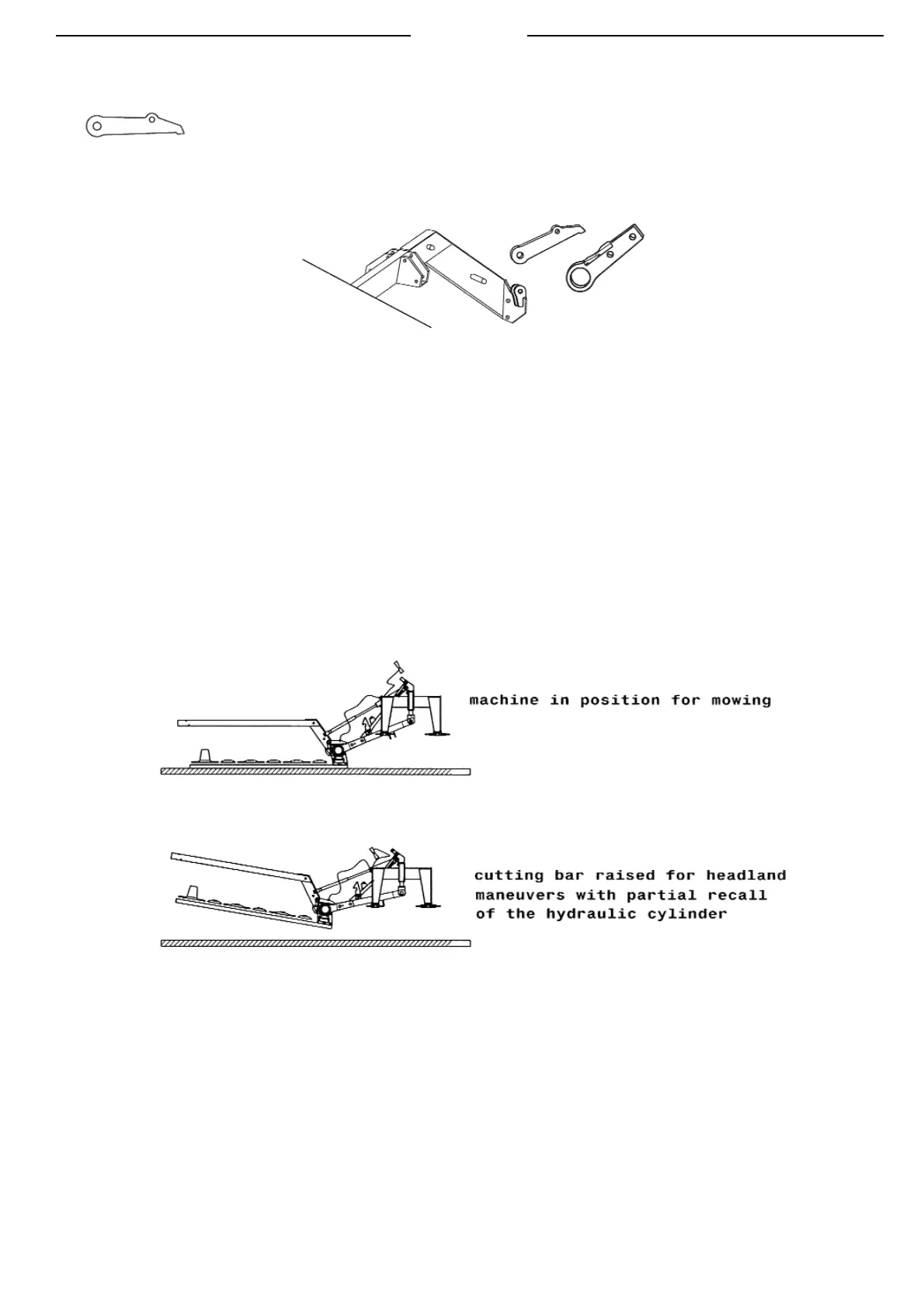

A prop (harpoon) has been introduced, going to engage in a tooth obtained in the front movable ear on the joist, allows
to liftt the cutting bar to overcome the mowed bed with the partial recall of the hydraulic cylinder existing on the machine.
The specific information for the machines with this device that affect the paragraphs follow:
3.3.1 bis Transport position
4.1 bis Work position
All the other chapters and paragraphs are valid also on all types of machines.
