ROTARY MOWER

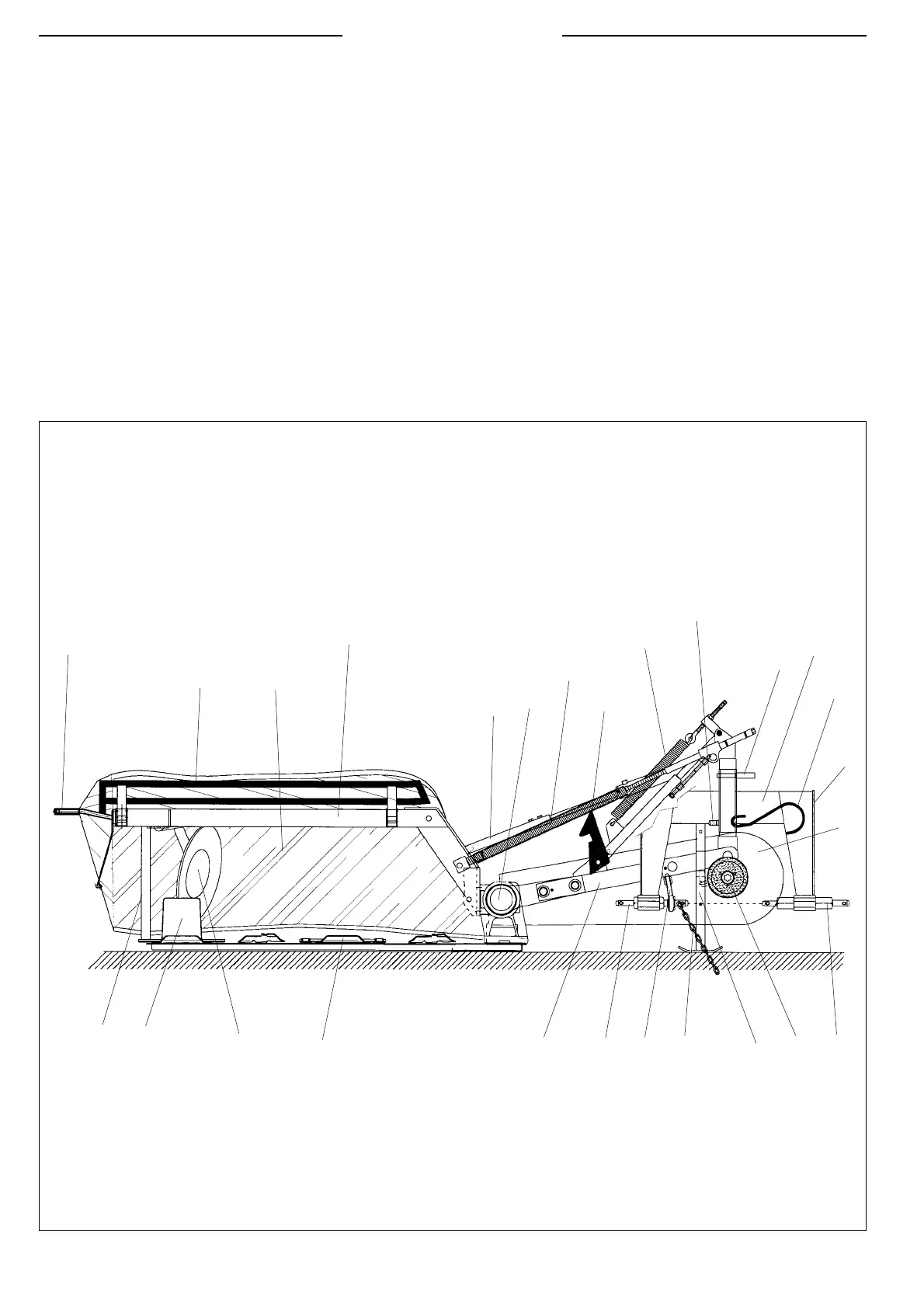

Fig. 1
25
22
17
2
15
18
16
9
4
5
24
6
19
20
10
21
3
8
3
23
11
12
14
13
1
7
18 Overdrive
19 Safety release
20 Safety chain
21 Power take-off + protective cowling
22 3-point hitch Tiller Mounting frame
23 Crossbar
24 Shield bar
25 Side lock for mechanical shields
1.3 TECHNICAL SPECIFICATIONS
The MOWERS are available in four versions (models ,
, , ), with different power, weight and
dimensional specifications (see chapters 1.3.1, 1.3.2 and
1.3.3).
The machines have been designed and built with an eye to
high quality and reliability, in full compliance with the
standards in force and with accident prevention a prime
concern.
The machines have been designed to work in the heaviest
duty conditions: see chapters 1.2.2 and 1.2.3 for the
precautions to take before using the machine.
The machine is equipped with a safety release that prevents
breakage and damage caused by impact against large
obstacles.
The ball joints allow the machine to turn through 30° and to
automatically re-engage by reversing a short distance.
Standard supply includes the driveline with free wheel, the
automatic release device, two sets of knives (a long set and
a short one) and a sprung suspension to reduce the load
bearing on to the ground.
