ELI 250/210__________________________________________________________________________
3-26

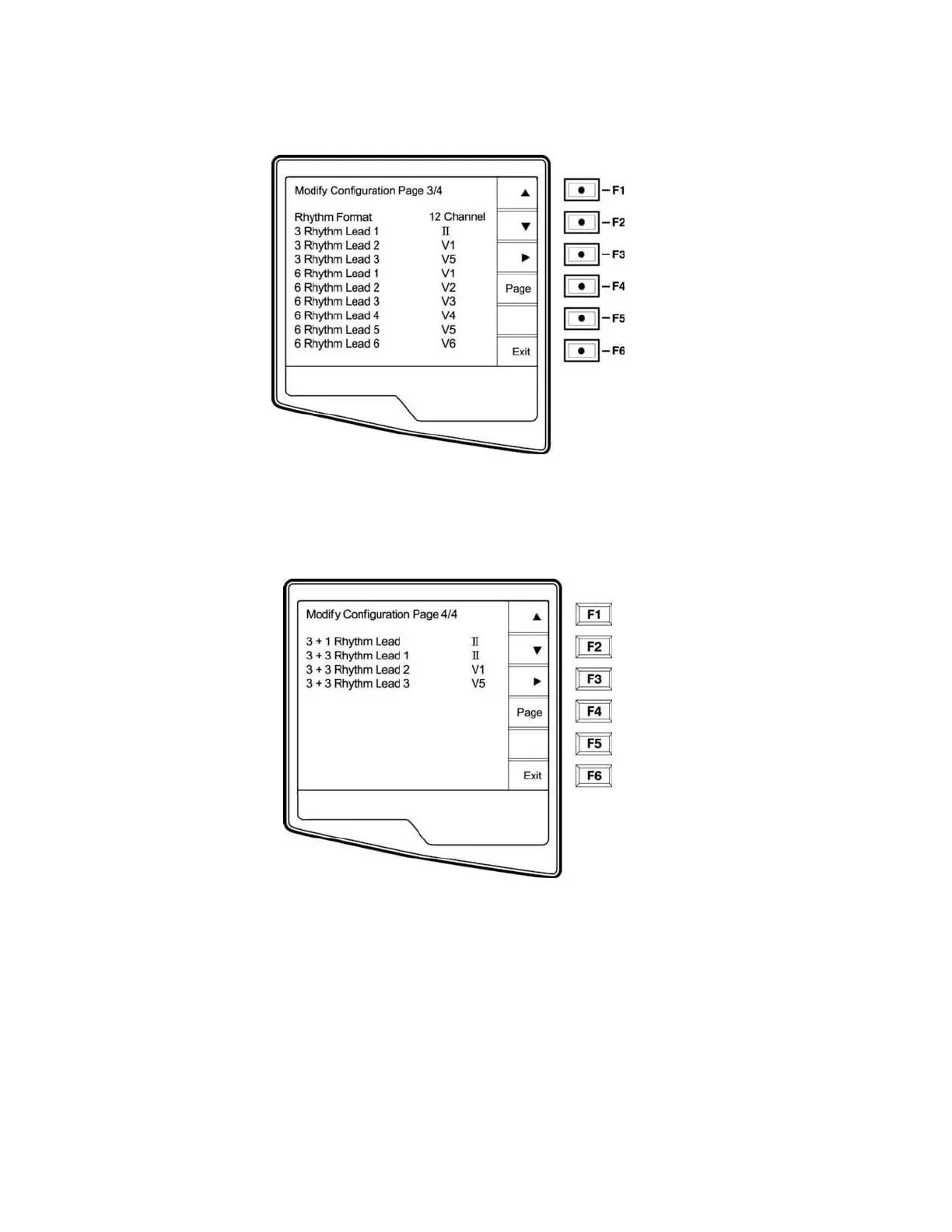

Configuration Page 3
Rhythm Formats
Configuration page four defines the default values for rhythm printing. It is possible to set a 3-channel, 6-channel or
12-channel default rhythm format. Define rhythm leads one through three to customize a three-channel rhythm
printout or define rhythm leads one through six to customize the six-channel rhythm printout. Use (F3) to toggle
through each of the 12 leads.
Rhythm Leads
Configuration page five identifies the user-selectable 10-second rhythm lead printed in a 3 + 1 channel ECG printout
and the three 10-second rhythm leads for the 3+3 channel ECG printout. Use (F3) to make your selection of any of
the 12 leads.
NOTE: rhythm acquisition is not stored in memory, only printed
