Writer Removal / Installation

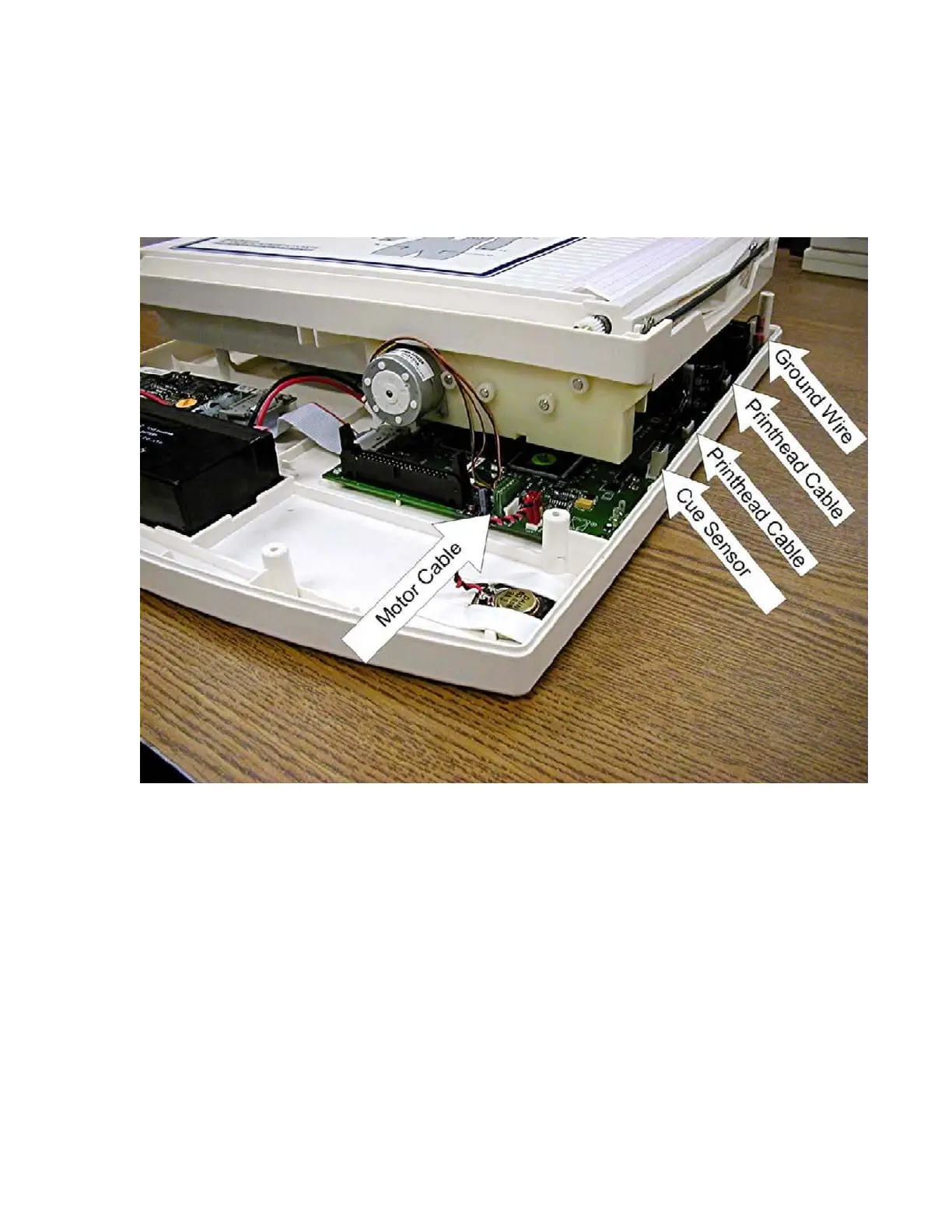

Located on the perimeter of the motherboard are the cables for the writer. There are a total of 5 cables that need to
be removed, 2 print head cables, 1 cue sensor cable, 1 print head ground cable and the writer motor cable.
Remove the listed cables.
