6-22 Troubleshooting Waveforms: One Wire
6.8 One Wire
6.8.1 1-Wire

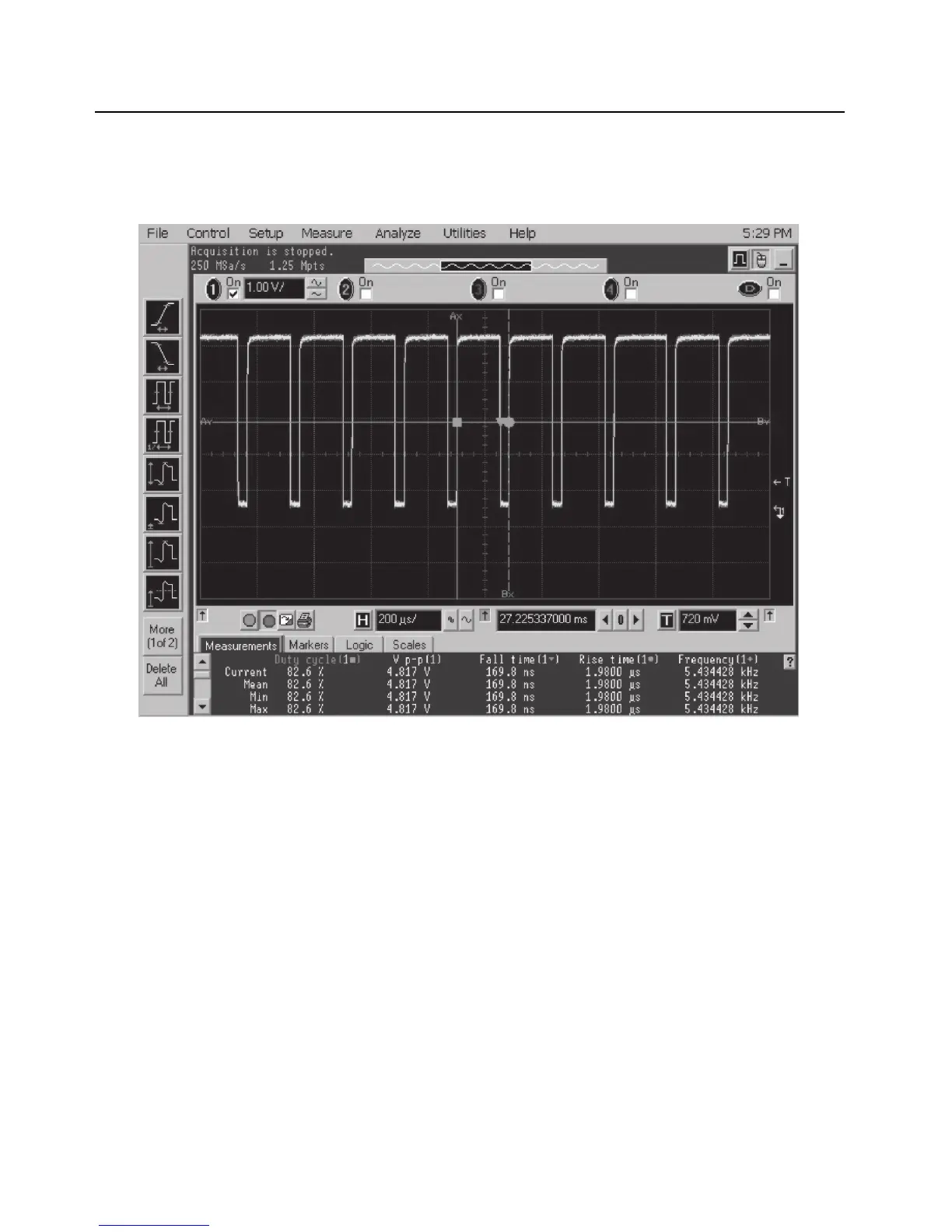

Trace 1: Trace recorded at R4009.
Figure 6-21. 1-Wire Waveform
