Troubleshooting Waveforms: GPS 6-35
6.14 GPS
6.14.1 GPS TCXO (26 MHz TCXO)

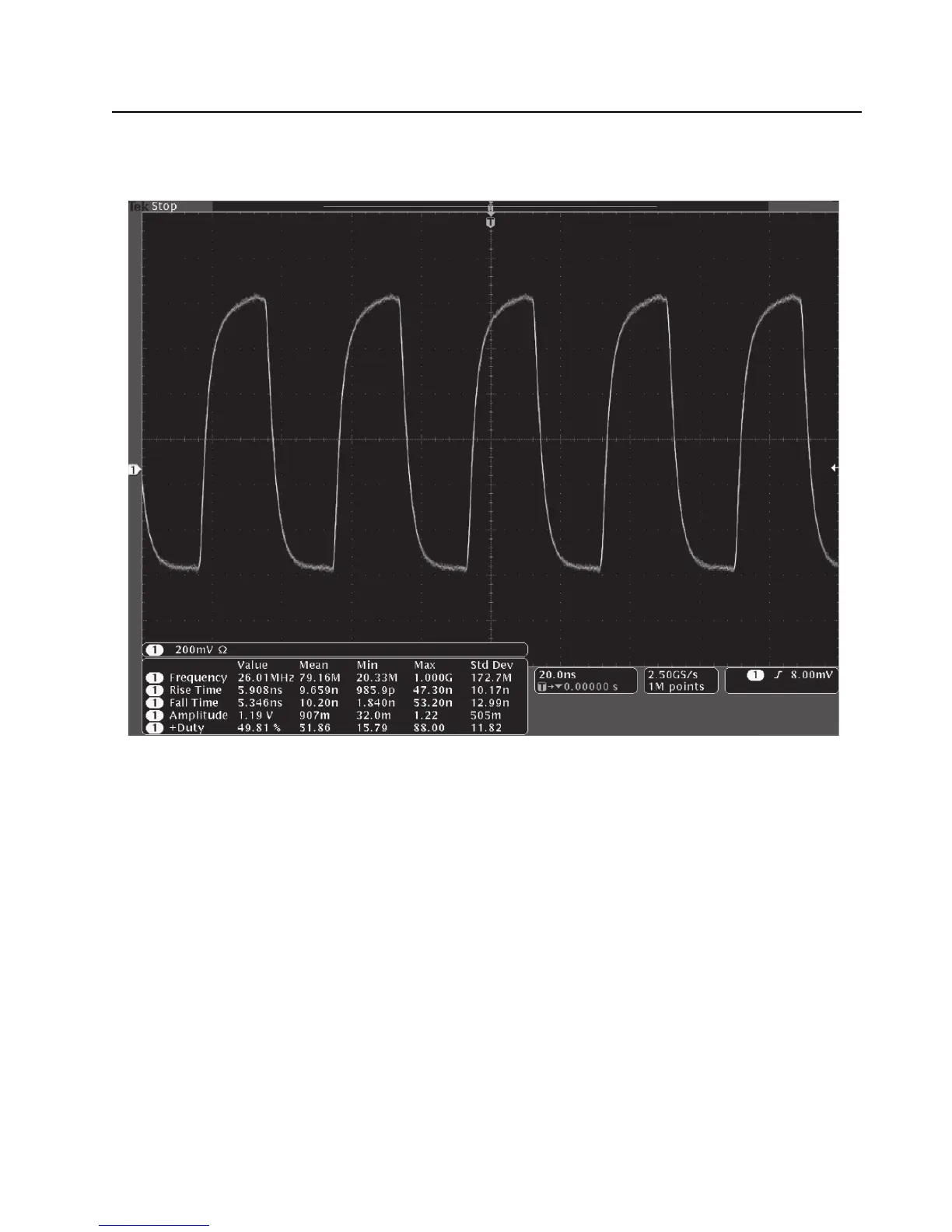

Trace 1: Trace recorded at C1321 at Main Board.
Figure 6-34. GPS TCXO Waveforms
